Water basin heated according to photos. 230Volt, 1,200Watt Sthf0o Heating infinitely adjustable from 0-100%. Lows in different sizes to cover the water surface.

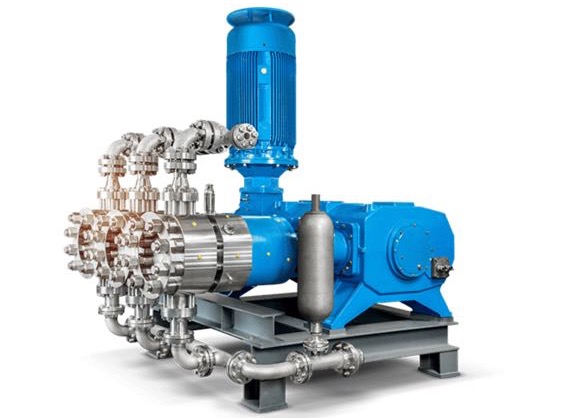

System: diaphragm pump Type: LEWA G3H M511S Gr. 30 Description: with diaphragm pump head, material stainless steel Year of construction: 2002 / refurbished 2008 Stroke length: 30 mm Hubfreqquenz: 175 min1 Rod power: 16000 (N) Measuring current at pmax: 170 (ges. 510) l/h Max.Zul. working pressure: 250 bar at least. suction flange pressure: 1.0 bar Connections: Suction and pressure side DN 15 Pump body: Stainless steel 1.4571 Diaphragm: PTFE Guide / ball: 1.4581 / 1.4301 Speed: 1440 RPM Power: 7,5 kw Voltage: 230/400 Technical documents: Yes

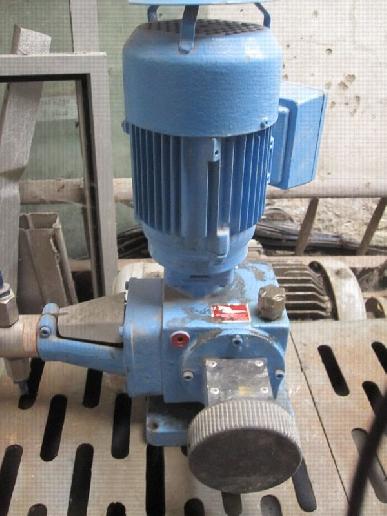

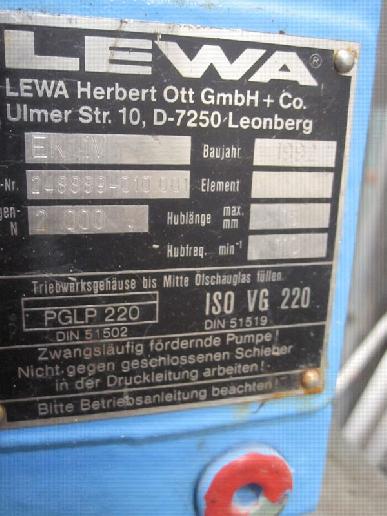

Piston pump with 0,25 kW / 1.325 UPM drive, stroke length: 1 - 15 mm, stroke frequemcy: up to 110/min.
Piston pump with drive 0.25 kW / 1.325 RPM, stroke length: 1 - 15 mm, stroke frequency: up to 110 rpm.

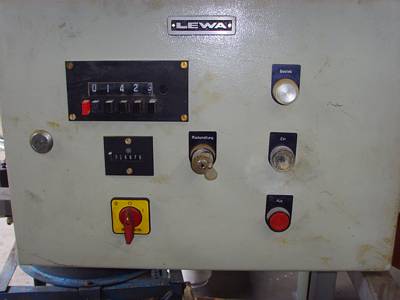

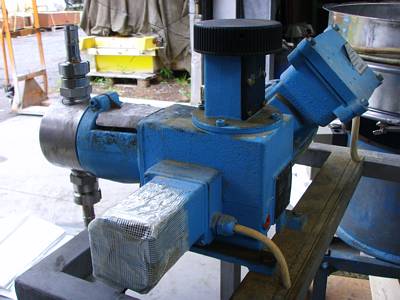

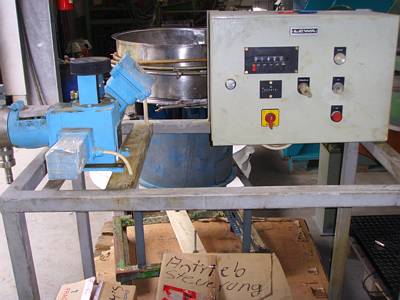

Piston dosing pump, type EK 1 H, with batch control via electric pulse preselection counter incl. remote summier movement. Working pressure 7.5 bar, max dosing current 290 l./h, pipe connection Rd 34 x 1/8 inch with hose sleeve NW 15, with control cabinet, mounted on table.
Piston pump for dosing, type EK 1 H, with batch-control by electric impulse batching counter. Working pressure 7,5 bar, dosing stream 290 l./h max., hose coupling Rd 34 x 1/8 inch with hose tail NW 15, with switchgear, mounted on table.
