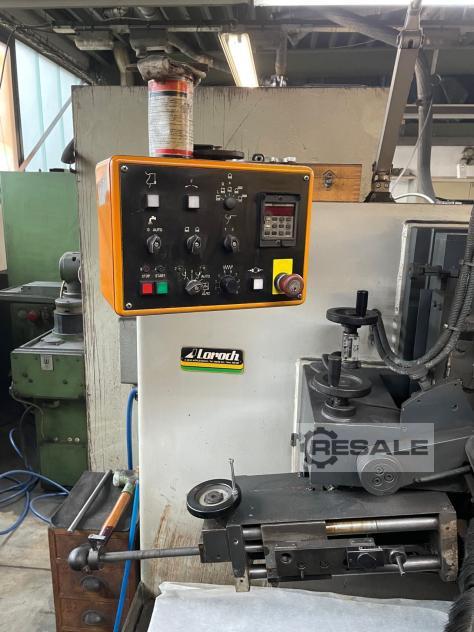

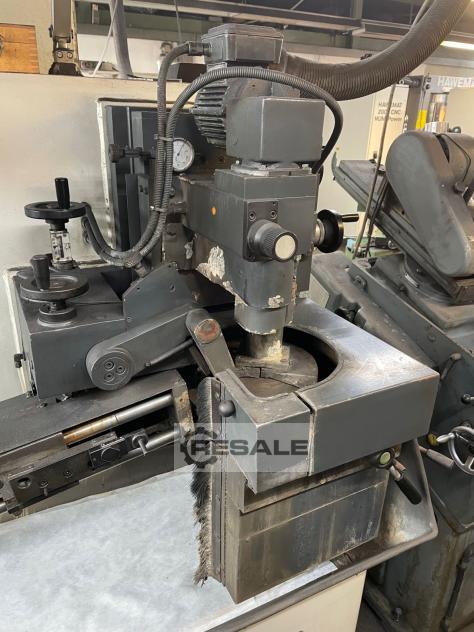

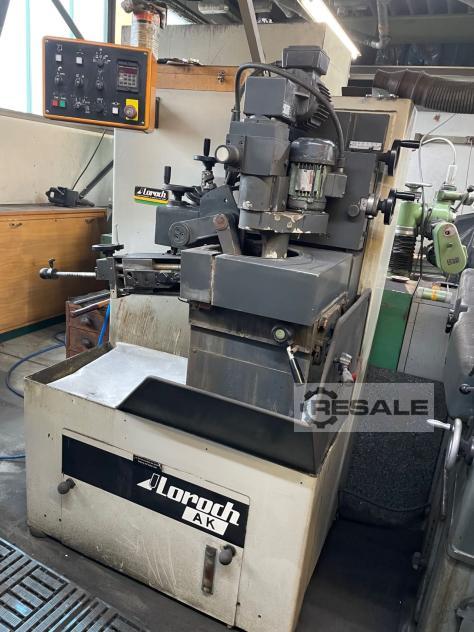

Saw blade chamfering machine Manufacturer: Loroch Type: AK Year of construction: 1991 For chamfering HSS and segment circular saws
Circular saw blade Anfasautomat The BK 450 circular blade contact machine automatically handles the lateral chamfering or bending of HSS saegee blowers up to 450 mm in diameter. The special feature of the machine is that it is connected to two separate grinding units and thus the saege leaf is fasted on both sides at the same time. This means lower ruest and faster grinding times. Diameter range: 50 - 450 mm Tooth pitch: 2 - 12.5 mm Saegeblatt thickness: max. 4 mm CBN (for groove grinding): 25x 8 and 30x 8 mm CBN or bakelite: 60 x12 mm Weight: approx. 115 kg Dimensions (L x W x H): 735 x 630 x 1350 mm
Machine for chamfering of HSS and segment circuit saegen - Saegeblatt: 80 - 910 mm - Grinding wheels: 200 x 32 mm - Weight: approx. 1800 kg - Full cladding - integrated wet grinding device - Signal lamp for displaying the end of work - Halogen lamp - Central lubrication - Accessories - Operating instructions

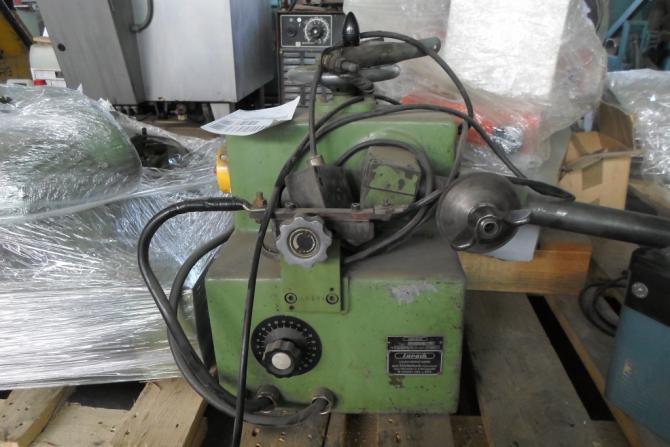

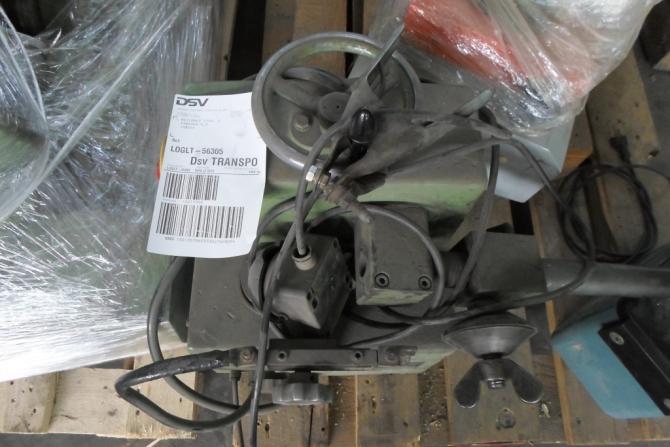

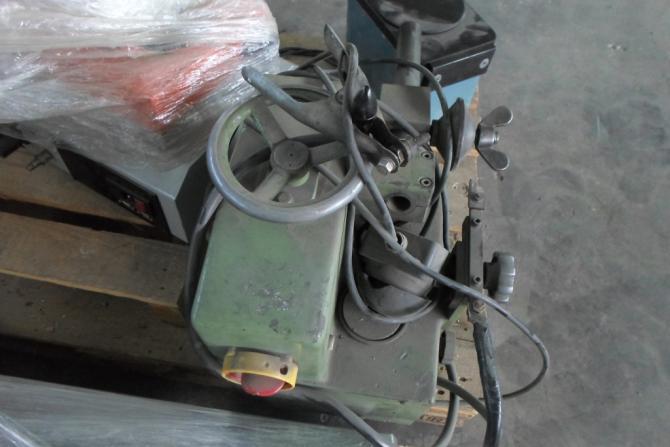

Sawblade diameter maximum: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Saw blade diameter: from: 50 mm up to: 450 mm Tooth width: 25 mm Tooth height: 8 mm Clamping angle: 0 - 25 ° Diameter of grinding wheel: 110-120 mm Voltage 50 Hz 3x: 380 Volt Power: 0.7 kW Machine´s weight about: 110 kg Overall dimensions machine: Length: 330 mm Width: 330 mm Height: 1200 mm Various accessories: Lamp Dust extractor

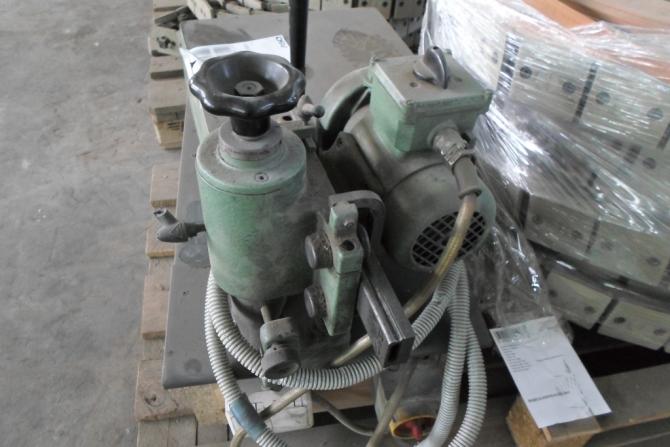

Sawblade diameter maximum: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Saw blade diameter: from: 50 mm up to: 450 mm Tooth width: 25 mm Tooth height: 8 mm Max. saw blade thickness: 8 mm Clamping angle: 0 - 25 ° Diameter of grinding wheel: 110 - 120 mm Voltage 50 Hz 3x: 380 Volt Power: 0.7 kW Machine´s weight about: 110 kg Overall dimensions machine: Length: 330 mm Width: 330 mm Height: 1200 mm Various accessories: Lamp
