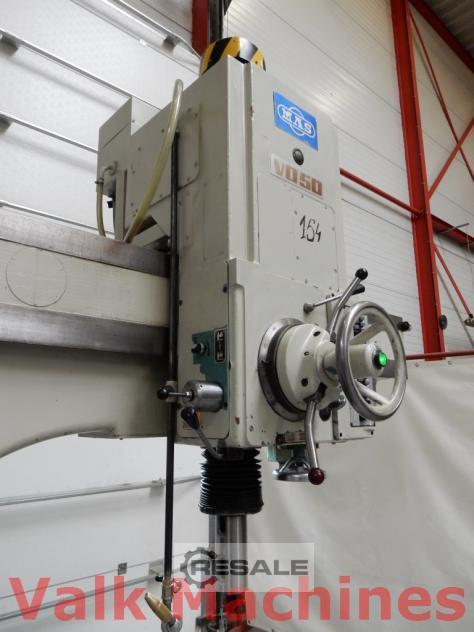

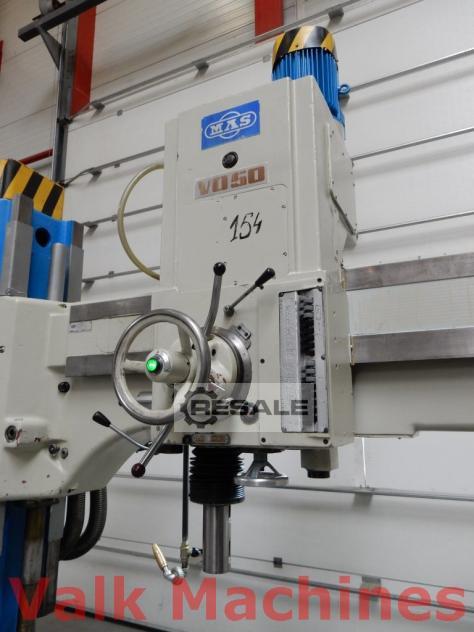

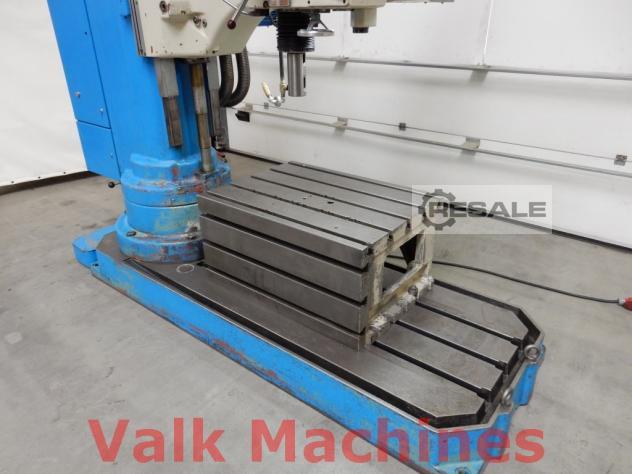

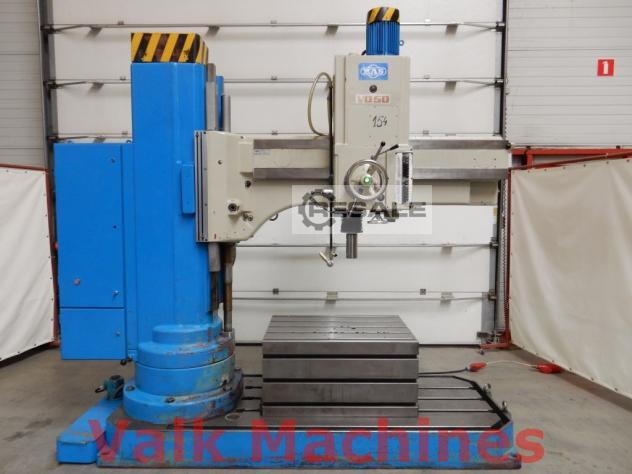

Arm length: 1600 mm Drilling capacity in steel: Ø 50 mm Tapping in steel: M50 x 1.5 mm Spindle holder: MK 5 Spindle speeds: 28 - 2500 rpm. Spindle feed: 0.05 - 2 mm/rev Spindle stroke: 310 mm Spindle -> slab: 1500 mm max. Tension throwers; 1000 x 750 mm Clamping flat floor plate: 1820 x 986 mm Complete with: - Kuhlanlage - Operating instructions Spindle motor: 4 kW Country of origin: Czech Republic Machine Weight: 4300 kg Machine LxWxH: 3250 x 1120 x 3400 mm

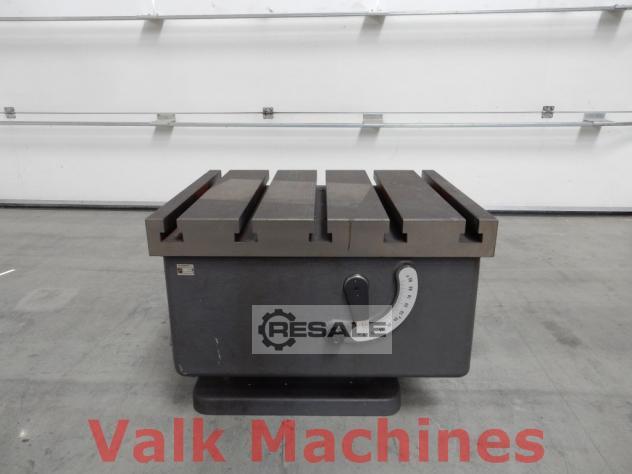

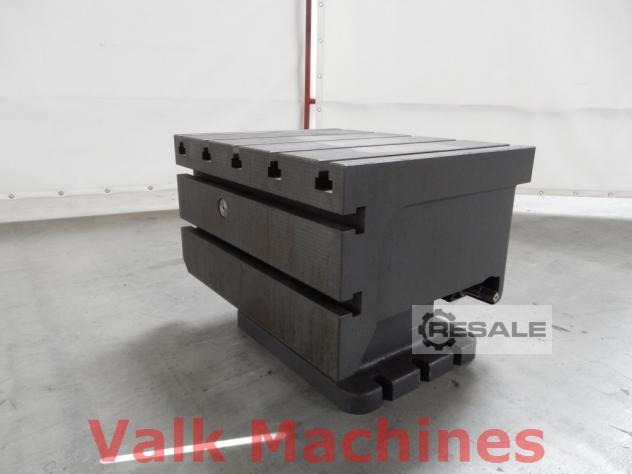

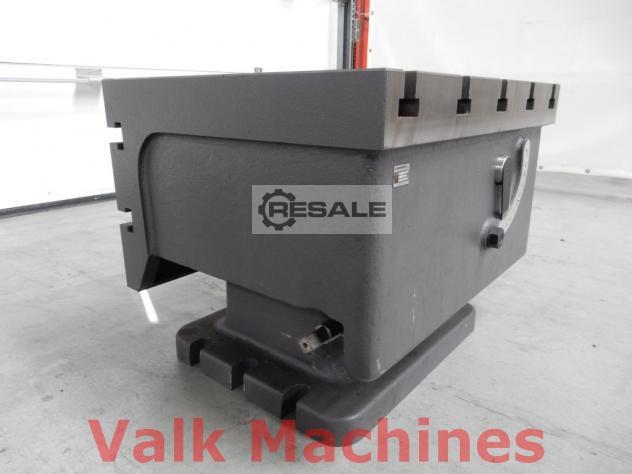

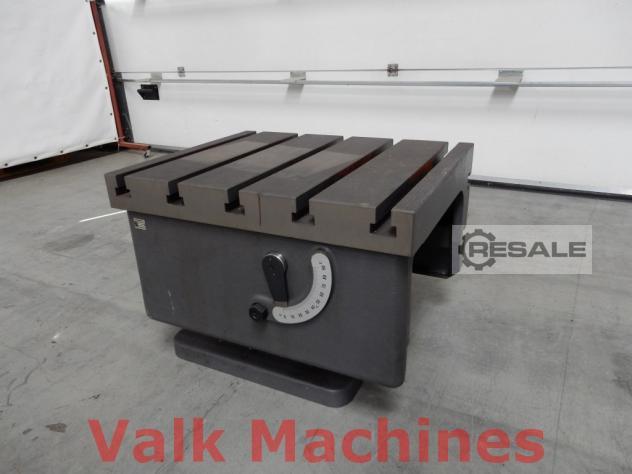

Radial drilling table Dimensions LxWxH 600 x 750 x 550 mm Tilting 0o - 90o This radial drilling table is unused
bore capacity in steel (diameter): 60 mm / MK5 arm length: 1600 mm quill stroke: 310 mm spindle speed:: 28...2500 U / min table-size: 1470 x 986 mm total power requirement: 4 kW weight of the machine ca.: 4,6 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
