Code: 0063 Brand: MONGUZZI Model: TRA-OLM 2600 - CE Standard Automatic hydraulic veneer guillotine with 1 blade - CE Standard Technical data: Sturdy structure essential to guarantee a precise and quality cut Pressure and lowering speed of the presser and blade holder independently adjustable via hydraulic valves Cutting length mm 2650 Presser opening mm 80 Cutting execution time 4 sec Presser width mm 340 ideal for blocking any type of veneer Cutting display light Photocells and safety barriers Installed power Kw 10 Work surface height mm 930 Automatic numerically controlled rear register with programs Sliding on quality linear guides Side button panel for processing the end cutting side Rear safety nets Overall dimensions of assembled machine mm 4100 x 2450 x 1750 h Machine dimensions for transport mm 4100 x 1800 x 1750 h Weight kg 4000
Code: 0368 Brand: MONGUZZI Model: TRA-OL-P - CE Standard Hydraulic veneer guillotine - CE Standard Technical data: Heavy structure Cutting length mm 3600 Photocells safety barriers Cutting display light Rear register mm 1300 electrically driven with readout on mechanical display Central control panel Side control panel for trimming Adjustable blade presser working speed N° 2 motors Installed power Kw 12 Overall dimensions for transport mm 5200 x 1100 x 1680 h Weight kg 4600
SPECIFICATIONS: Max. cutting length mm: 3200 Max. cutting width mm: 520 Min. cutting width mm: 10 Veneer thickness mm: 0.3 - 1.5 Max. package height (veneer) mm: 50 Press opening mm: 100 Double Knife: Yes Number of motors: 3 Installed capacity KW: 10,5 Motorized rear guide Total weight: 11,000 kg
Used veneer cutter MONGUZZI mod. 3000 Cutting length in mm (long grain) mm. 3000 Nr. 2 engines Voltage 400 V Hydraulic cutting system hydraulic presser New Category 4 photocells for finger detection Motorized cutting register Machine in excellent condition EC

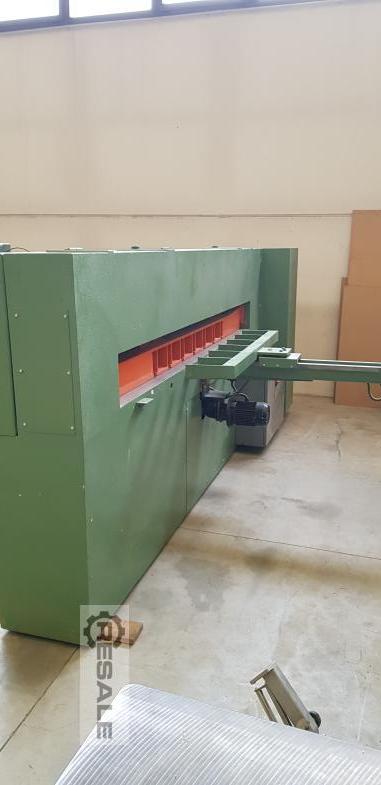

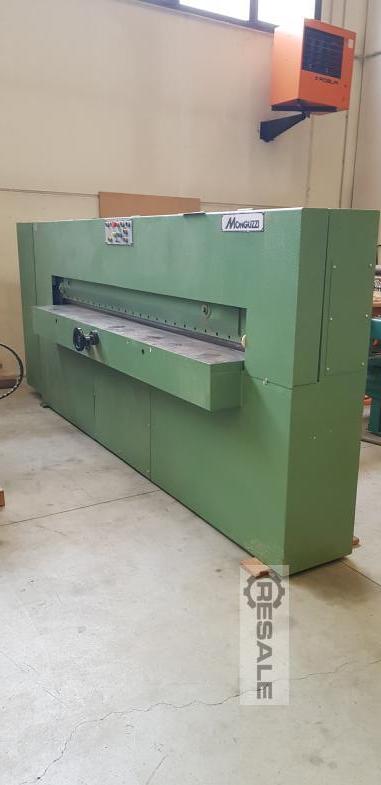

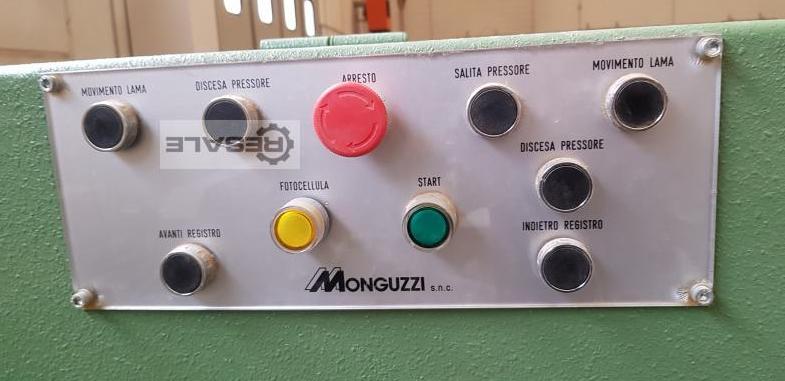

AUTOMATIC HYDRAULIC GUILLOTINE type MONGUZZI TRA 2600 Second hand machine Volt. 380/50 Working conditions : good Technical details : max. useful cutting length mm. 2650 max. useful cutting heigth mm. 100 max. useful cutting width mm. 1000 min. useful cutting width mm. 40 hydraulic motor power Hp 5,5 net weigth kgs. 2600 CE mark : NO
