Key data: 210 mm, 150 mm, 4500 1/min
MURATEC MT12 Year of construction 2000 Control: Muratec FANUC TWO SPINDLE CNC LATHE . Diameter of the drill chuck mm 165/215 . . Max. turning diameter mm 210 . Bar diameter mm 45 (option 51) . . Standard length when turning in bars mm 150 . Spindles Qty: 2 . C-axes (360,000 positions) Qty: 2 . Height from spindle center to ground mm 1100 . Spindle speed rpm 4500 . . Spindle power kW 2 x 11 . Spindle nose A2-5 . Spindle bearing diameter mm 90 . X-axis X1 / X2 mm 200 . Z-axis (left side) Z1 mm 200 . . Z-axis (right side) Z2 mm 650 . Quick feeds X, Z m/min 24 . Rush feed right spindle m/min 32 . Stations Qty: 15 x 2 . Indexing time sec 0.25 . Blocking force kg 3200 . Square mm 20 . Diameter mm 40 . Power kW 2.8 . Speed 4000 rpm . C-Axis Positioning Deg 0.001 . Maximum drilling diameter mm 16 . Thread cutting M 10 The machine can be viewed by appoi ...
:::TECHNICAL SPECIFICATIONS::: CNC Model: Fanuc CNC version: 30lt Main spindle nose: ASA 6 Main spindle power: 18.5Kw Main Spindle Centering Diameter: 210mm Main spindle bar passage: 65mm Main spindle speed: 4000 Number of tool turrets: 3 Number of tool positions for the first turret: 15 Number of Motorized First Turret: 15 First turret X-axis travel: 220mm Y-axis travel first turret: + - 40mm First turret Z-axis travel: 770mm Number of second turret tool positions: 15 Number of motorized second turret: 15 Second turret X-axis travel: 220mm Second turret Y-axis travel: + - 40mm Second turret Z-axis travel: 770mm Number of third turret tool positions: 12 Number of motorized third turret: 12 Third turret X-axis travel: 220mm Third turret Z-axis travel: 880mm Fast feeds for linear axes X Y Z: 24m/min High refrigerant pr ...
Key data: 240 mm, 180 mm
Muratec MT-12 CNC turning center (2 spindles, 2 turrets and driven tools) CNC control Muratec-Fanuc 18i-TA Turning diameter 240 mm Turning length 180 mm Spindle bore diameter 51/45 mm X-axis travel 200 mm Travel Z-axis 200 / 650 mm Distance between spindles 650 mm Spindle speed 4500 rpm Spindle nose A2-5 Number of revolvers 2 Number of tools on the turret 15 Number of driven tools 15x If you have any questions about the machine, as well as an appointment for a viewing, please contact us by phone or e-mail. Feel free to check out our other listings for a full overview of our stock.
Key data: 240 mm, 180 mm
Muratec MT-12 CNC turning center (2 spindles, 2 turrets and driven tools) CNC control Muratec-Fanuc 18i-TA Turning diameter 240 mm Turning length 180 mm Spindle bore diameter 51/45 mm X-axis travel 200 mm Travel Z-axis 200 / 650 mm Distance between spindles 650 mm Spindle speed 4500 rpm Spindle nose A2-5 Number of revolvers 2 Number of tools on the turret 15 Number of driven tools 15x If you have any questions about the machine, as well as an appointment for a viewing, please contact us by phone or e-mail. Feel free to check out our other listings for a full overview of our stock.

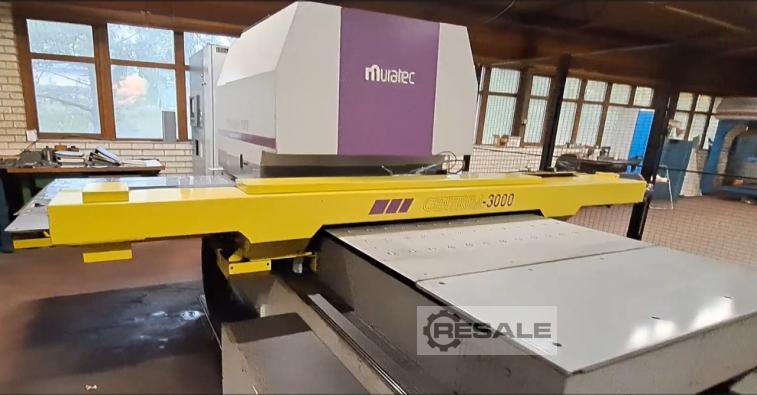

Movement Specifications: X-Axis Movement: 4000 mm after reposition Y-Axis Movement: 1270 mm Plate Size: Maximum Y plate size: 1500 mm Technical Data: Embossing Force: 300 kN Max. Plate Thickness: Steel: 5 mm Stainless Steel: 2 mm Tooling: Number of Index: 2 Number of Stations: 34 Max. Material Thickness: Steel: 5 mm Stainless Steel: 2 mm Machine Dimensions: Width: 4250 mm Depth: 5065 mm Height: 2132 mm Machine Weight:22000 kg

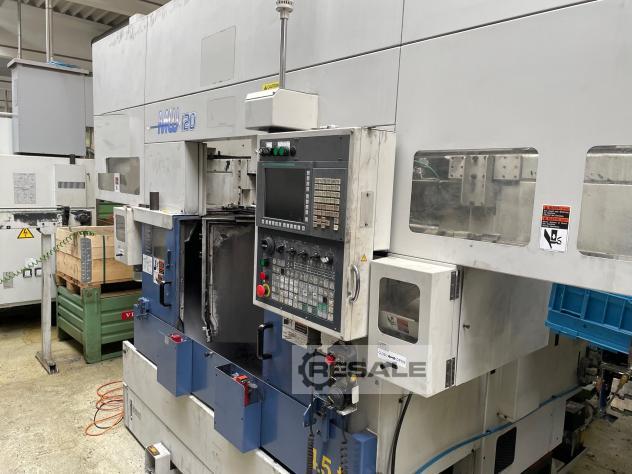

2012 Muratec MW 120 GT Metal 2012 Muratec MW 120 GT and more: Mori Seiki ZT 1500YB in operation, can be viewed during operation. 2002 yes Mori CL 2000 can be viewed under power. Currently not in operation 2004 yes Mori Seiki SL-204 can be viewed under power. Currently not in operation 2001 yes Mori Seiki SL-204 can be viewed under power. Currently not in operation 2003 yes Tsugami NP-32 can be viewed under power. Currently not in operation 1992 yes Riello in operation, can be viewed during operation. 2002 yes
turning diameter: 254 mm turning length: 2x250 mm control: FANUC 16T-C weight of the machine ca.: 11 t dimensions of the machine ca.: 4.5 x 2.5 x 2.5 m with bar loading magazin: LNS Quick-Load Servo II The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: 200 mm turning length: 235 mm control: Fanuc total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
