7 PAMA used machine for sale

Key data: 11000 mm, 3000 mm, 1500 mm

X axis 11.000mm Y axis 3.000mm Z axis 700mm W axis 800mm Spindle diameter 160mm Spindle taper iso 50 Spindle speed 1.800 rpm Spindle power 65kw ATC 60 positions Yom 1995 Nr 02 rotary table:-2.500x2.500mm capacity 25 ton ( 2 axes controlled) -2.000x2.000mm 15 tons capacity ( 2 axes controlled) One birothative head Two boring heads Floor plates included

Floor type Boring and Milling M/C PAMA Speedram SR 2000 Year 2012 Condition never installed and never used TECHNICAL DETAILS spindlediameter: 180mm x-travel: 18000mm y-travel: 5000mm table: 18000x3000mm Control: Siemens 840D spindle speed: 4 - 2.500 U/min spindle capacity: 60kW ADDITIONAL INFORMATION Equipment/ Accessories: - Hydrostaticguidefor all axes - Floorplates - Head changingstation including 8 heads plus 18tool positions - coolantsystemKnoll, Operating pressureoutside spindle 5 bar / inside tool 45 bar - chipconveyor - stroke axis X:18000 mm CONDITIONS - FOB - Packing Included  Not Included : - Trainning and Foundation; - The customer must provide the necessary equipment and structure to move the load to assemble the machine. - Machine does not have manufacturer warranty. - Any part or component that needs to be replaced must be purchased  ...

Technical data of the used PAMA Speedram 2 boring machine: Spindle diameter: 150 mm Spindle taper: ISO 50 Milling spindle diameter: 254 mm RAM section: 360x400 mm Axes travels: Vertical travel (Y): 3200 mm Column travel (X): 10.200 mm Boring spindle travel (Z): 700 mm Axial stroke of the spindle tube (W): 800 mm Total axes travel (Z+W): 1500 mm Spindle speed: 1600 rpm Feeds rate: Working feeds: 1 + 6000 mm/min Rapid feed (X-Y-Z-W): 10.000 mm/min Power: Spindle motor: 65/40 kW Axis motors (X-Y): 65 Nm/each Axis motors (Z-W): 38 Nm Total power: 105 kW Rotary table: Dimensions: 2000 x 2000 mm Longitudinal travel: 1750 mm Table rotation feeds: 0,001 rpm Rotation feed: 1-1.5 rpm Motor power: 10 hP Max weight on table: 15.000 kg

CNC Floor Type Boring & Milling Machine   PAMA Speedram 1000   Manufactured new in 2008 - with only 4500 program run hours   Heidenhain iTNC 530 CNC Control   X 13000 mm   Y 3000 mm   Z 1000 mm   W 700 mm   Pama NC-Rotary travelling table   Table size 2000 x 2200 mm   Table load 16 t   B-Axis 360°/0.001° with contour milling capability   V-Axis table travel 2000 mm   Boring spindle diameter 150 mm   Spindle taper ISO 50   Spindle drive 37 KW   Spindle speeds to 3500 rpm   Floor plates   Huron type universal head   X,Y,Z hydrostatics   Optical scales X,Y,Z,V Axes   Linear magnetic scale W Axis   Coolant through the spindle 30 bar with filtration unit   Automatic attachment clamping on the ram   PREPARED for ATC   Excellent machine condition - Under power - Immediately available

PAMA 200 CNC Floor Type Horizontal Boring & Milling machine Built 1997 / 2013 X=16.000, Y=6.000, Z=1.330, W=830mm Spindle diam. 200mm ISO 50/60 Spindle RPM: 1-680 75HP CNC FANUC 31i-M Table 5.000x5.000mm, X travel 2.500mm max. loading 120 Ton Rotation 360.000° Floorplates 4.000 x 15.000mm Chip conveyor Angle head This machine disassembled end of 2021. It was in a very good condition.

ACES RACES: Transverse table (X-axis) 2,040 mm Vertical head (Y-axis) 1,600 mm Spindle axial (Z-axis) 810 mm Longitudinal wagon (W-axis) 1,200 mm Spindles: Rease undersea spindle diameter 127 mm ISO 50 Inner Cone Cutter spindle diameter 221.4 mm SPEED: Continuous change field spindle speed 2-1,250 RPM Advances: Continuous change field feed rate for all axes 1.5-3,000 mm/min Fast feed rate for all axes 3,000 mm/min Powers: Spindle Engine 20 Kw, Advanced Motors 26 Kw, Auxiliary Services 4 Kw table: Size 1.520x1.270 mm Range 8 ton

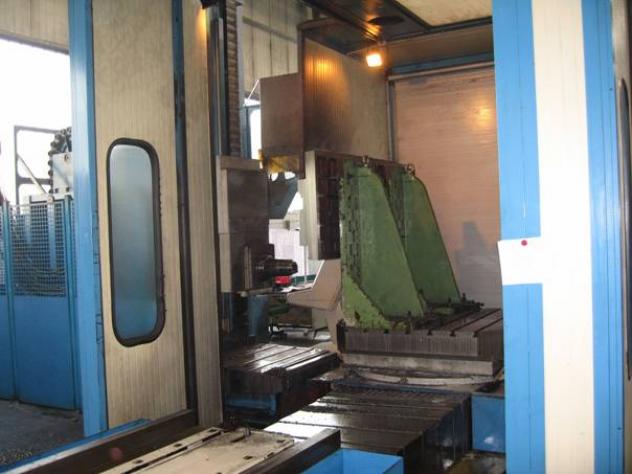

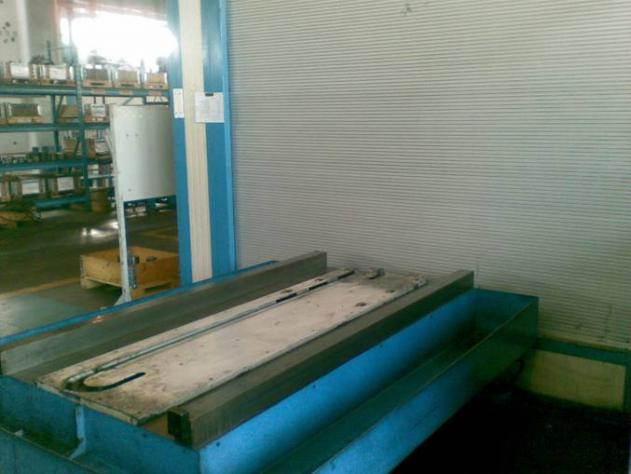

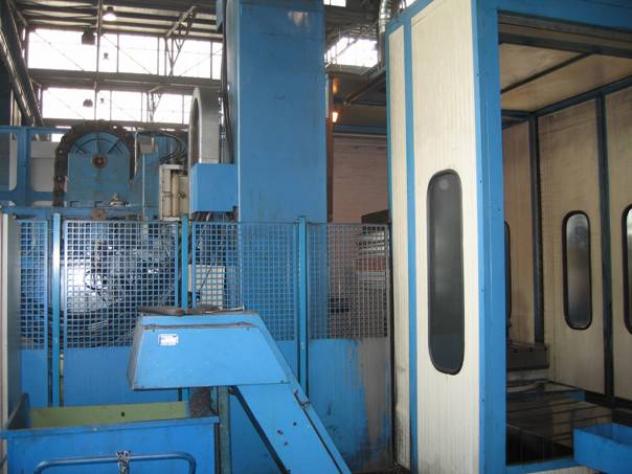

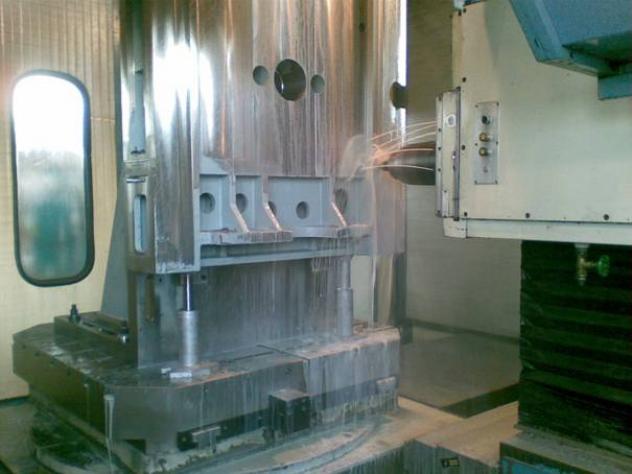

Manufacturer: PAMA, Italy Model: AT 130/3 CNC Year of manufacture: 1996 Control: CNC SIEMENS SINUMERIK 828 Condition: Excellent, complete, machine will be equipped with a new CNC control SINUMERIK 828! Location: Machine in our warehouse Rudniki, Poland. Technical details Spindle diameter: ø 130 mm Rotary table: 1600 x 1600 mm Table capacity: 12000 kg X axis travel: 2500 mm Y axis travel: 2400 mm Z axis travel: 750 mm W axis travel: 2030 mm Max spindle speeds: 2200 RPM Main motor Power: 35 KW ATC magazine: 100 pcs Rapid feeds: - X- 10,000 mm/min - Y- 12,000 mm/min - Z- 6,000 mm/min - W – 12,000 mm/min - B – 2 Gear steps 2 ranges Torque in axes: X- 55 Nm; Y- W-B- 37 Nm; Z- 27 Nm Weight: 35 kg Max. tool diameter with all places occupied: 140 Max. tool length: 600 mm Equipment: - 1 psc.Rotary table - ATC for 100 pcs - APC 2 pcs 1600 x 1600 mm - External  ...
