Key data: 400 , 800 , 1000

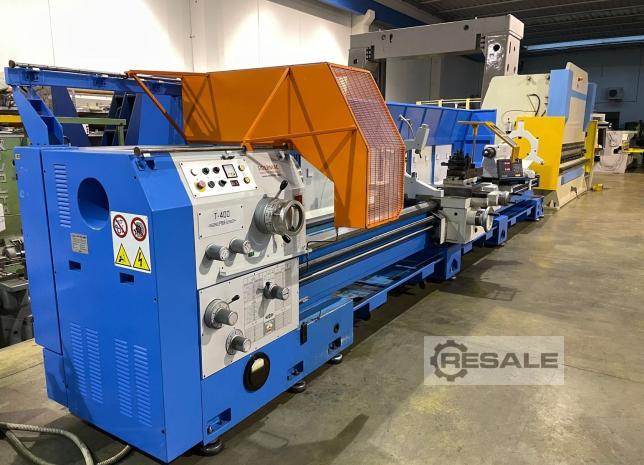

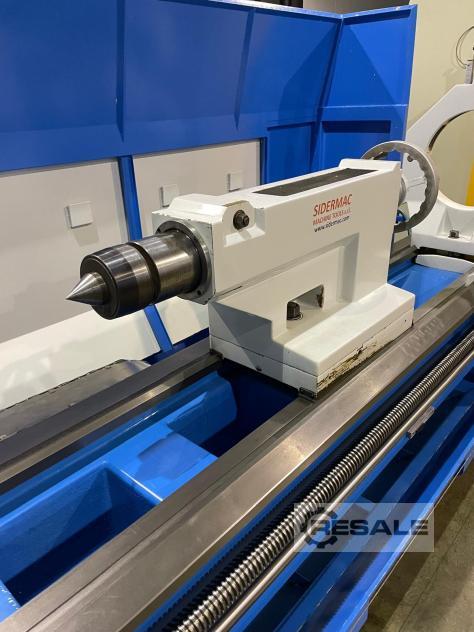

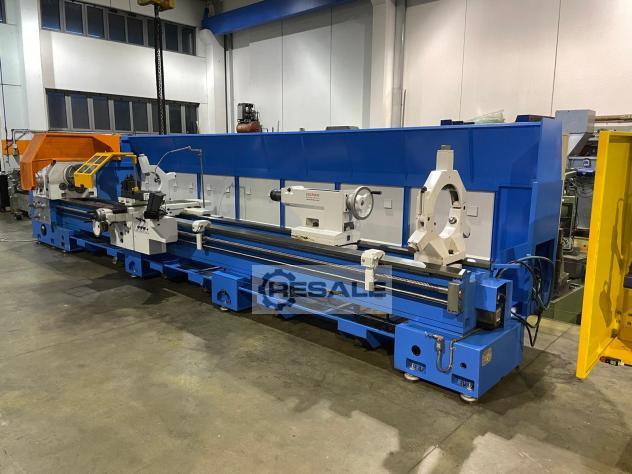

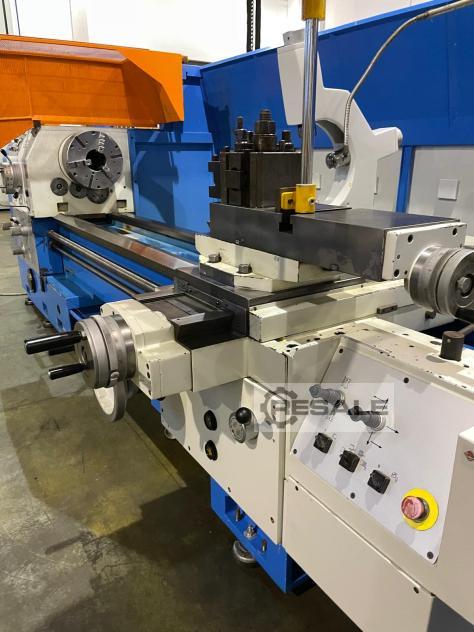

Center distance 6000 mm Height of centers 400 mm Max diameter on the bench 800 mm Max diameter on the carriage 520 mm Max diameter in the recess 1100 mm Bar passage 130 mm Undercarriage stroke notes 340 mm TURRET Standard BENCH Max weight between tips 3500 Kg Max weight on steady rests 4500 Kg Pallet width 520 mm TAILSTOCK Steerer diameter 115 mm Steerer stroke 380 mm Cone cm6 HEAD Spindle power 25 Kw Spindle speed 5/1000 Rpm 11 cam-lock spindle attachment Spindle torque 560 Nm GiVi axis display measurements Self-centering 500 Use and maintenance books Yes Wiring Diagrams Yes Protections yes Ready for availability Visible in the warehouse in operation
:::SPECIFICATIONS::: CNC Model: Fagor CNC Version: 8050 TC Spindle nose: ASA 11 Spindle power: 30Kw Bench drill height: 450mm Turning diameter on bench: 920mm Turning diameter on the undercarriage: 550mm Turning length: 3000mm Number of laps: 1500 Bar clearance: 130mm Mechanical gearbox: yes Number of ranges : 2 Weight between tips: 7800Kg Turret: Manual Number of Tool Turrets: 1 Number of fixed tool positions for the first turret: 1 First Turret X-Axis Travel: 550mm Tailstock: Yes Steerer stroke: 400mm Chip conveyor: belt conveyor :::D DIMENSIONS AND WEIGHT::: Length: 5350mm Width: 2650mm Height: 2000mm Weight: 7800Kg
320 x 1000 x 40 mm Zubehor an foto's Machine leaches very well.

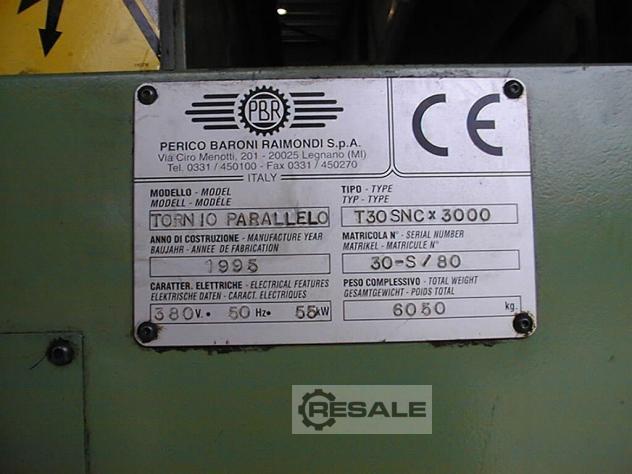

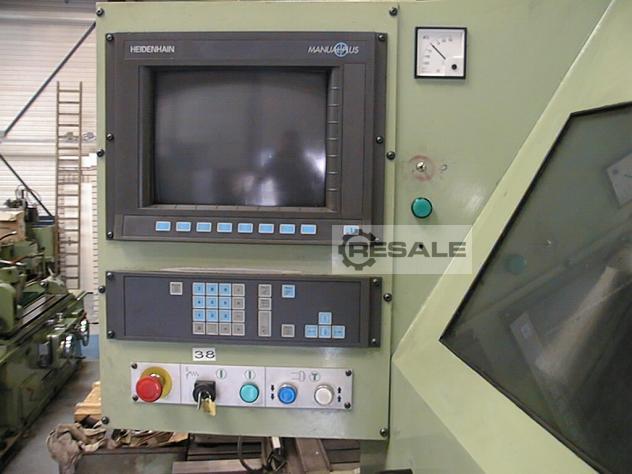

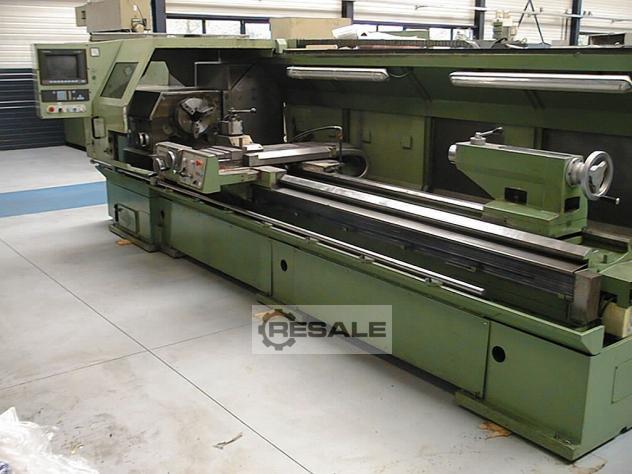

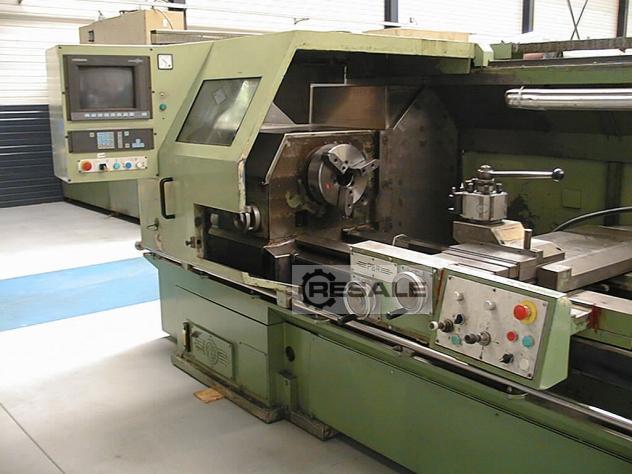

Code 81176 DESCRIPTION CNC Center lathe with 2 axis Make P B R Model T 30 SNC x 3000 S/N 30 – S / 80 Year 1995 Control Heidenhain Manual Plus ( 1998 ) Distance between centers 3000 mm Max. swing 630 mm Max. swing over slide 330 mm Spindle bore 105 mm Spindle speed in 2 ranges stepless ( in program ) 7 – 310 / 44 - 2000 rpm Motor power 15 kW Connected load 33 KVA Machine weight 6000 kg Accessories 3 chuck of 315 mm 1 fixed steady 1 open steady cooling equipment Condition Machine is in good condition

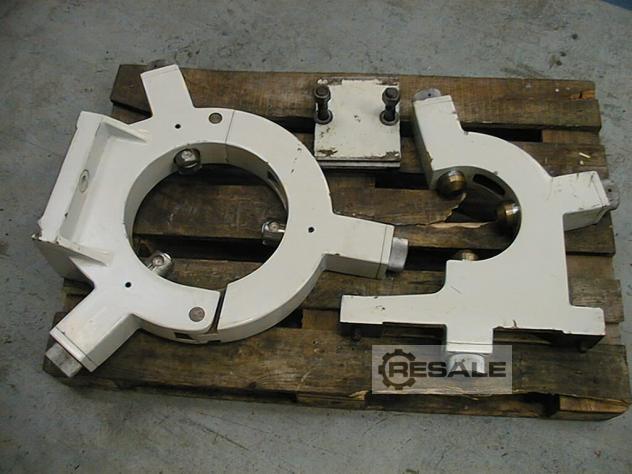

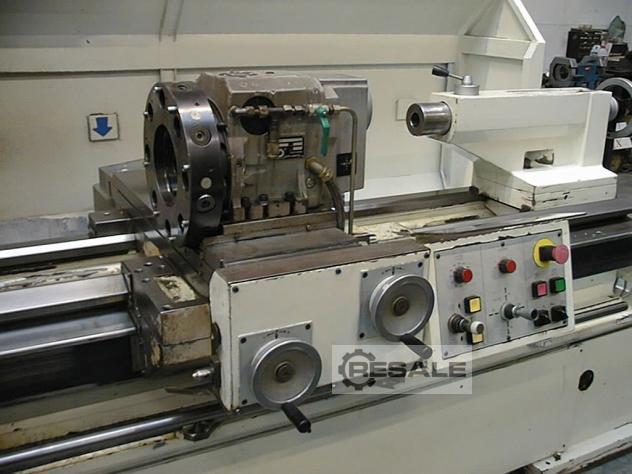

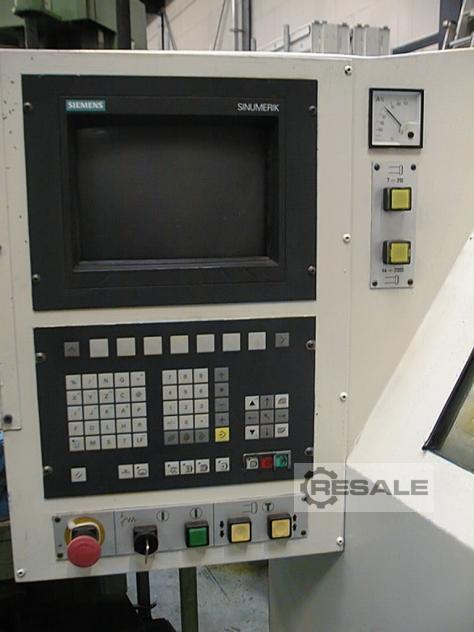

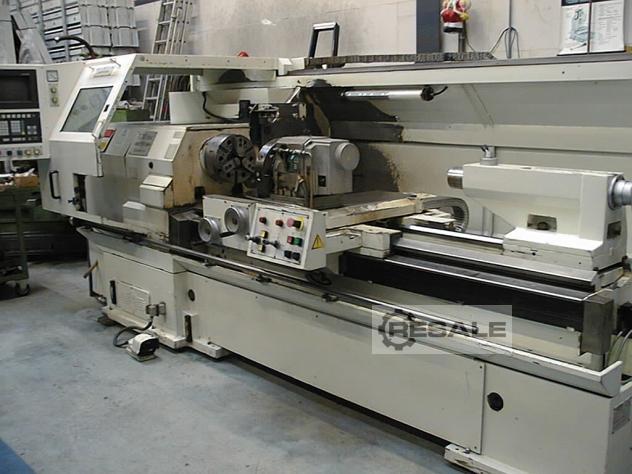

Code 71139 DESCRIPTION CNC Center lathe with 2 axis Make P B R Model T 30 SNC x 1500 S/N 30 H / 87 Year 1996 Control Siemens Sinumerik 805 Distance between centers 1500 mm Max. swing 630 mm Max. swing over slide 330 mm Spindle bore 105 mm Spindle speed in 2 ranges stepless ( in program ) 7 – 310 / 44 - 2000 rpm Motor power 15 kW Connected load 33 KVA Machine weight 5500 kg Accessories 8 ATC Duplomatic toolholder R 10 Hydraulic 3 chuck Ø 315 mm 1 fixed steady with 320 mm bore 1 open steady cooling equipment Condition Machine is in good condition
Height tips 300 mm Distance between tips 4,000 mm Spindle speed (16) 15-1,500 rpm Bar pass 105 mm Engine power 15 HP displayed with ELBO system
Italian top make, control Grundig manual-plus V 260, very robust machine! Top width 1500 mm maximum swing over bed 625 mm Spindle bore 105 mm Taper MK 5
Technical data: Diameter over bed: 625 mm Turning length: 1500 mm Diameter via slide: 325 mm Spindle head shape: Cam-Lock Spindle drilling diameter: 105 mm
Turning diameter: 920 mm Turning length: 4000 mm Turret positions: 0 CNC Brand: Fagor CNC Model: T 800 Make PBR CNC T45 Type T 450 SNG Year 1997 GO 2014 Fagor T 800Centre height (mm) Swing = 920 Center distance (mm) DBC = 4.000 Spindle bore Bore 130 / 55 kW Speeds 1.500 Rpm incl. Steady rest incl. Boring bar
Turning diameter: 920 mm Turning length: 4000 mm Turret positions: 0 CNC Brand: Fagor CNC Model: T 800 Make PBR CNC T45 Type T 450 SNG Year 1997 GO 2014 Fagor T 800Centre height (mm) Swing = 920 Center distance (mm) DBC = 4.000 Spindle bore Bore 130 / 55 kW Speeds 1.500 Rpm incl. Steady rest incl. Boring bar
