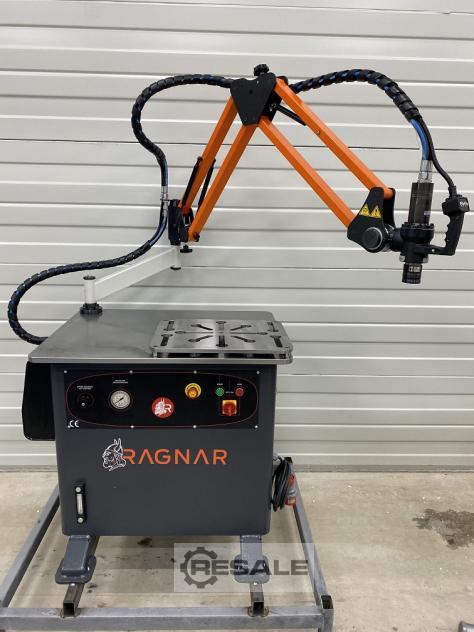

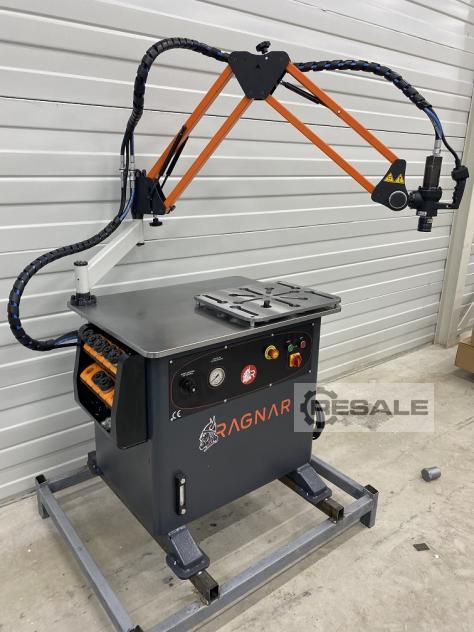

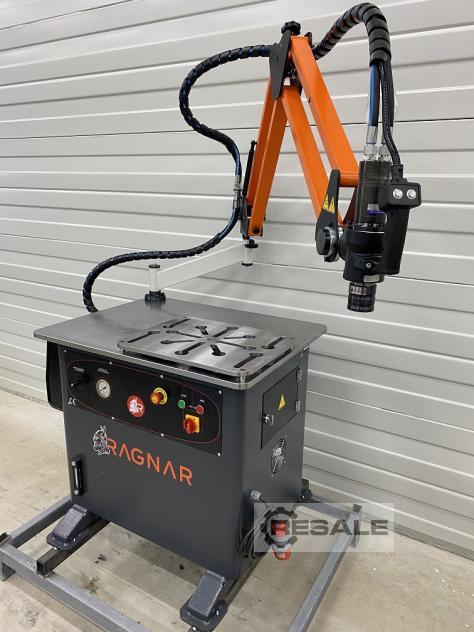

RAGNAR THREAD CUTTING MACHINE TYPE RAGTAP 16H - Hydraulic - Bereik plant 2050 mm - Kop is draaibaar - Snelwisselopname - Traploos instelbare tapsnelheid - Inclusief 7 tappotjes - Noodstop - Documentatie - 400V DUTCHMACH Metalworking machines ENSCHEDE - NETHERLANDS (3 km from the German border)
thread dia.: bis M 24 M turning speeds: 0-600 / 0-150 U/min thread: M5 - M24 M working area: 2050 Rmax. working range: 500 Rmin. work height max.: 900 mm table surface area: 700 x 900 mm oil volume: 100 l engine output: 3,0 kW weight - pallet system: ca. 300 kg Furnishing: - hydraulic threading machine - Incl. machine frame with clamping disc - mobile - hydr. manometer - stepless speed adjustment - Vertical / horizontal thread cutting possible Special accessories included / quick-change inserts: M05 / M06 / M08 / M10 / M12 / M14 / M16 / M18 / M20 / M22 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

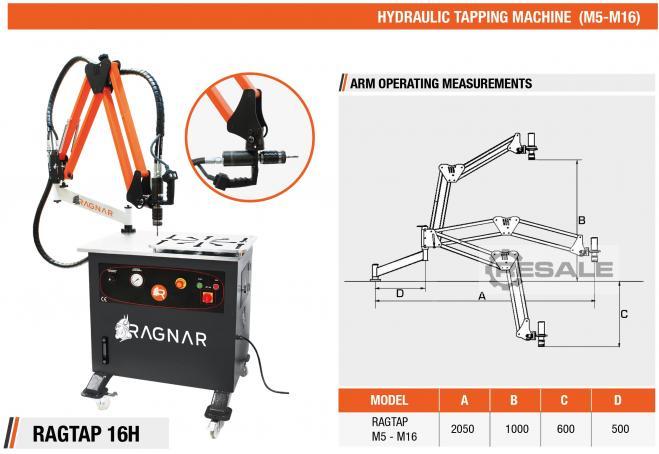

thread dia.: bis M 16 M turning speeds: 0 - 600 U/min thread: M 5 - M 16 M working area: 2050 Rmax. working range: 500 Rmin. work height max.: 900 mm table surface area: 800 x 1000 mm oil volume: 100 l engine output: 3,0 kW weight - pallet system: ca. 250 kg Furnishing: - hydraulic threading machine - Incl. machine frame with clamping disc - mobile - hydr. manometer - stepless speed adjustment - Vertical / horizontal thread cutting possible Special accessories included / quick-change inserts: M05 / M06 / M08 / M10 / M12 / M14 / M16 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
thread dia.: bis M 36 M turning speeds: 0-100 U/min thread: M5 - M36 M working area: 2050 Rmax. working range: 500 Rmin. work height max.: 900 mm table surface area: 700 x 900 mm oil volume: 100 l engine output: 5,5 kW weight - pallet system: ca. 500 kg Furnishing: - hydraulic threading machine - Including machine base with clamping disc - mobile - hydr. manometer - stepless speed adjustment - Vertical / horizontal thread cutting possible Special accessories included / quick-change inserts: M05 / M06 / M08 / M10 / M12 / M14 / M16 / M18 / M20 / M 22 M27 / M30 / M33 / M36 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
