Granulator for high loading (heavy duty) Make NETZSCH CONDUX Type CS 500/600-4 Inlet opening approx. 600x600 mm Semi-open 5-knife rotor, 4 stator blades Drive motor 75 kw
Hollow core granulator and re-cutting mill for pre-shredded material Rotor 450 mm diameter x 600 mm working width 3 rotor blades (bevel cut), 2 stator blades Drive motor 22 kw
Motor 75 kW Rotor blades: 5 Stator blades: 2 Rotor diameter: 600 mm Bu9dtai0he Rotor width 780 mm Inlet opening: 720x780 mm
HERBOLD KG 45/50, granulator, rotor width 500 mm, n.3 rotating knives x 500 mm., n.2 still knives, 37 kw drive, NEW electric panel, Machine offered totally reconditioned, (photos before overhauling - see how we recondition [HERE](.germanplast/pages/photo-gallery)), installed power - used power in work: about 60-65% : 37, conditions: reconditioned, working width: 500 mm.
model: EFS22, Granule size: approx. 3 mm length, Weight: 1000 kg, power: 2.2 kW, Voltage: 400 volts/50 Hz, Fuse protection: 16 amps, model: EFS22, power: 2.2 kW, Fuse protection: 16 amps, Year of construction: 2008, Operating hours: approx. 347 hours
Drying, blending, degassing, agglomerating system for plastic materials and more Automatic process. No operator needed. Italian technology and material quality standards. Used machine reconditioned Very versatile, can be used for a variety of applications: PAPERMILL PULPER, MIXED PLASTICS, but also ORGANIC MATERIALS to be dried and compacted, PEAT SUBSTITUTE, etc. Output is a continuous stream High ROI Installed power 400 kw – average power consumption 260 kw/h Low maintenance costs Ideal for 24/7 shifts On this link you’ll see the machine connected to an extruder: youtu.be/Q3Ayg62mfh8
TRIA GRANULATOR, (machine offered totally reconditioned - photos taken before reconditioning), Series 80-49 DN Rotor width 800 mm. diam.450 mm. 45 kw motor Granulation chamber 840 x 490 mm. Complete with conveyor belt Feeding hopper N.3 screens available (9-15 mm) Control panel The machine is offered TOTALLY RECONDITIONED, See how we recondition [HERE](.germanplast.eu/pages/photo-gallery), INSTALLED POWER: 45 kw, rotor size: 800x450 mm.
PREVIERO GRANULATOR (the machine will be totally reconditioned), Cutting chamber 810 x 180 mm., for sheets and thermoformed plastic scraps, manual feeding staggered knives Engine 55 kW (75 hp) Control panel screen bespoke to project possible addition with blower and downstream equipment, installed power Kw: 55
TRIA GRANULATOR XT 100-80, (machine offered totally reconditioned - photos taken before reconditioning was completed), - Granulating chamber mm.1.040800 (40,9431,50”), - 75 kw drive, - New rotor, diam 620 mm (24,41”) 1.000 mm.wide (40), - N.5 Rotor knifes, - N.2 Fixed knifes, - Electrical hopper opening, - Blower and cyclone Included, - new electric panel, - rotor bearings, motor bearings replaced, - 12 mm dima. screen (or bespoke), - constructed in 2004, - see how we recondition at [Germanplasts](.youtube/watch?v=BCW07AKu-F8), Power: 75 kw, width: 1.000 mm.(40), Knives: 5 R+2S
GAMAN GRANULATOR, complete with loading conveyor belt, 650 mm wide rotor, 75 kw drive 985-1180 rpm, n.2 rotating knives, Constructed in 2013, 380V 50 Hz, installed power Kw: 75
MOLINARI GRANULATOR, High thickness structure in electro-welded carbon steel, extra strong knives, still knives can be axially adjusted ., hydraulic cylinder to change the screen, complete with loading belt, 1.200 mm. wide rotor,, rotor diameter 600 mm, n.66 knives, staggered cutting, 75 kw drive, screen - can be customized, excellent cooling system on the whole machine, total weight : 6 Ton, machine checked for good conditions, installed power Kw: 75
ENGINE PLAST GRANULATOR, type BA 1000.550.3, 75 kw drive, 12 mm screen (or bespoke), complete with loading belt, metal detector, sound proofed, blower to scrap silo of extrusion line, control cabinet, machine reconditioned with new knives, installed power Kw: 75
RAPID GRANULATOR, type 640 KU, grinding chamber 610 x 300 mm., 30 kw drive
RAPID GRANULATOR - needs reconditioning, TYPE GK 1000, MIssing of motor (75 kw ), missing of flywheel, no recess, rotor length 1050 mm, rotor diameter 600 mm, rotor knives: 2x5, stator knives: 2,, 8 mm screen, complete of electric cabinet, Machine dimensions LxWxH 2,75 x 2,10 mm x 2,85 m, machine weight: approx. 4550kg., installed power Kw: 75
TRIA GRANULATOR, Mod. 46-25 TD-SL, Construction year 1990, Complete with blower for material extraction and dust cyclone, Feeding Mouth Diameter 470 x 435 mm, Cutting Chamber Diameter 470 x 250 mm, Motor Power 7.5 Kw, 6 Rotating blades, 2 Fixed blades, Grid Hole Size 9 mm, Material Extraction By Blower, NEW BLADES, installed power Kw: 7.5
TRIA GRANULATOR, Mod. 42-20/JM-SL, Construction year 2005, Feeding mouth size 210 mm x 415 mm, Cutting Chamber Size 200 mm x 420 mm, Engine power 4 Kw, 3 Rotating Blades, 2 Fixed blades, Grid Hole Size 5 mm, Approximate production 50 - 80 Kg/h, Material Extraction Collection drawer with suction hole., NEW BLADES, COUNTER BLADES AND BELTS, installed power Kw: 4
TRIA GRANULATOR, Mod. 42-20/JM-SL, Construction year 2003, Feeding mouth size 210 mm x 415 mm, Cutting Chamber Size 200 mm x 420 mm, Engine power 4 Kw, 3 Rotating Blades, 2 Fixed blades, Grid Hole Size 5 mm, Approximate production 50 - 80 Kg/h, Material Extraction: Collection drawer with suction hole., NEW BLADES, COUNTER BLADES AND BELTS., installed power Kw: 4
TRIA GRANULATOR, Mod. JJM 42-20 SL, Construction year 2014, Feeding Mouth Size: 210 mm x 415 mm, Cutting Chamber Size: 200 mm x 420 mm, Motor Power: 3 Kw, Rotating Blades: 3, Fixed Blades: 2, Grille Hole Size: 5 mm, Orientative Production: 50 - 80 Kg/h, Material Extraction: Collection drawer with hole for suction., installed power Kw: 3
TRIA GRANULATOR, Mod. 42-20/JM, Construction year 2012, Feeding Mouth Size: 210 mm x 415 mm, Cutting Chamber Size: 200 mm x 420 mm, Motor Power: 3 Kw, Rotating Blades: 3, Fixed Blades: 2, Grille Hole Size: 5 mm, Average throughput rate: 50 - 80 Kg/h, Extraction drawer, prepared for blower extraction, installed power Kw: 3
TRIA GRANULATOR 100-65DN, (machine offered totally reconditioned - photos taken before reconditioning), Open rotor length 1.000 mm., Ø 650 mm., n.3 rotating knives, n.2 still knives, 75 kw.drive, Electric cabinet, Constructed in 1996, offered FULLY RECONDITIONED, INSTALLED POWER: 75 kw, rotor size: 1000x650 open
(machine offered totally reconditioned - photos taken before reconditioning), TRIA PRR100 GRANULATOR, rotor width 1.000 mm., closed rotor diam.650 mm., n.5 rotating knioves, n.2 still knives, 110 kw drive, hopper mm.600 x 1.000, The machine is offered TOTALLY RECONDITIONED, NEW control panel, See how we recondition [HERE](.germanplast.eu/pages/photo-gallery)
Compact but extremely versatile cable recycling plant. The pelletizing plant has both a Z-classifier (Zigzag) for the separation of 1 mm heavy copper and a turbine mill for processing fine cables and data conductors. The system was only fed and used by hand with selected cables. The condition is correspondingly good. Specifications: Suitability: Cables, cut to length without impurities Throughput capacity max. 150 kg/hour Connected load: 19 kW Dimensions (LxWxH): 1.4 m x 0.7 m x 2.3 m Weight: 1,200 kg Further information: infoRecyclinganlagen.info
used side feeder for foil snippets / scrap Centrifuge with drive and feed container this unit was mounted on a 150 mm extruder Capacity over 320 kg/h

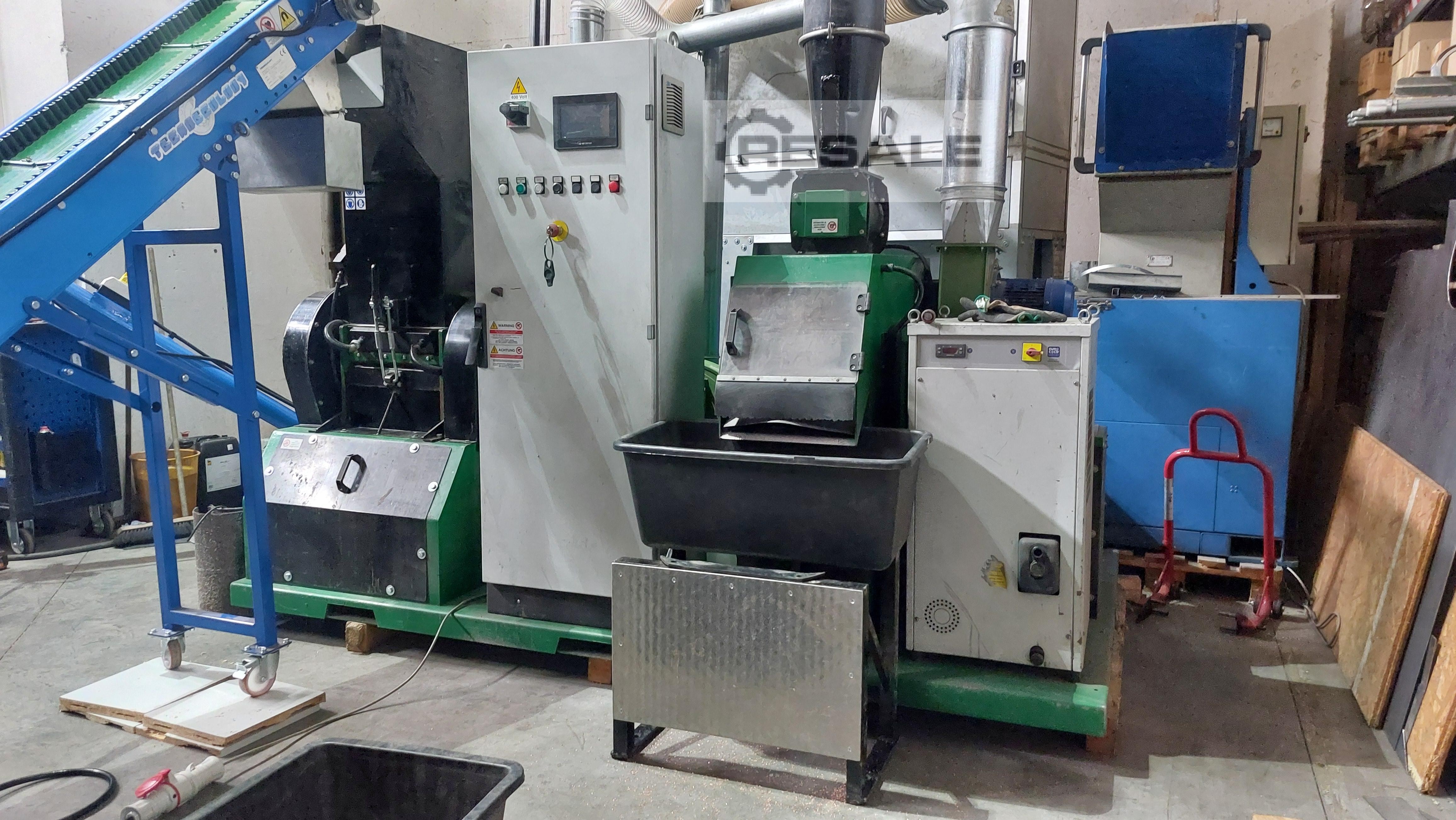

Used cable pelletizing system for mixed and stranded cables. The machine has been overhauled and equipped with new tools. The turbine was re-mounted and the control panel was replaced. In addition, the material inlet control has been activated so that the machine can be used automatically. The hourly output depends on the cable up to approx. 250 kg/hour when using a 5 mm sieve insert. The attached video shows the system in combination with the dosing tank and plastic loading. These components can be supplied as an option. It is operated via a 63 amp connection at 400 V. The power consumption is 28 kW. The plant can be visited and tested at our premises. More information at infoRecyclinganlagen.info
Maximum Diameter: 2000 mm // Number Of Belts: 14
Technical Specification, Will be added soon, magnetic drum separators, Mizars semi-magnetic drum separators offer ideal solutions for separating ferrous metals from bulk materials and transported products. The MDS series is easy to operate and maintain and offers energy efficiency with low running costs.
Plastic recycling plant, Starlinger Recostar 65 U2; Roto diameter = 400 mm, Roto speed = 73/76 d/dk; Number of knives = 48, Shredder capacity = 350 kg/h, Screw diameter / length= 65/24D, Performances PP = 90- 180 kg/h, HDPE = 90-180 kg/h, LDPE = 110 -200 kg/h HP = 110 - 200kg/h Dimensions = 9930 mm X 7050 mm X3150 mm

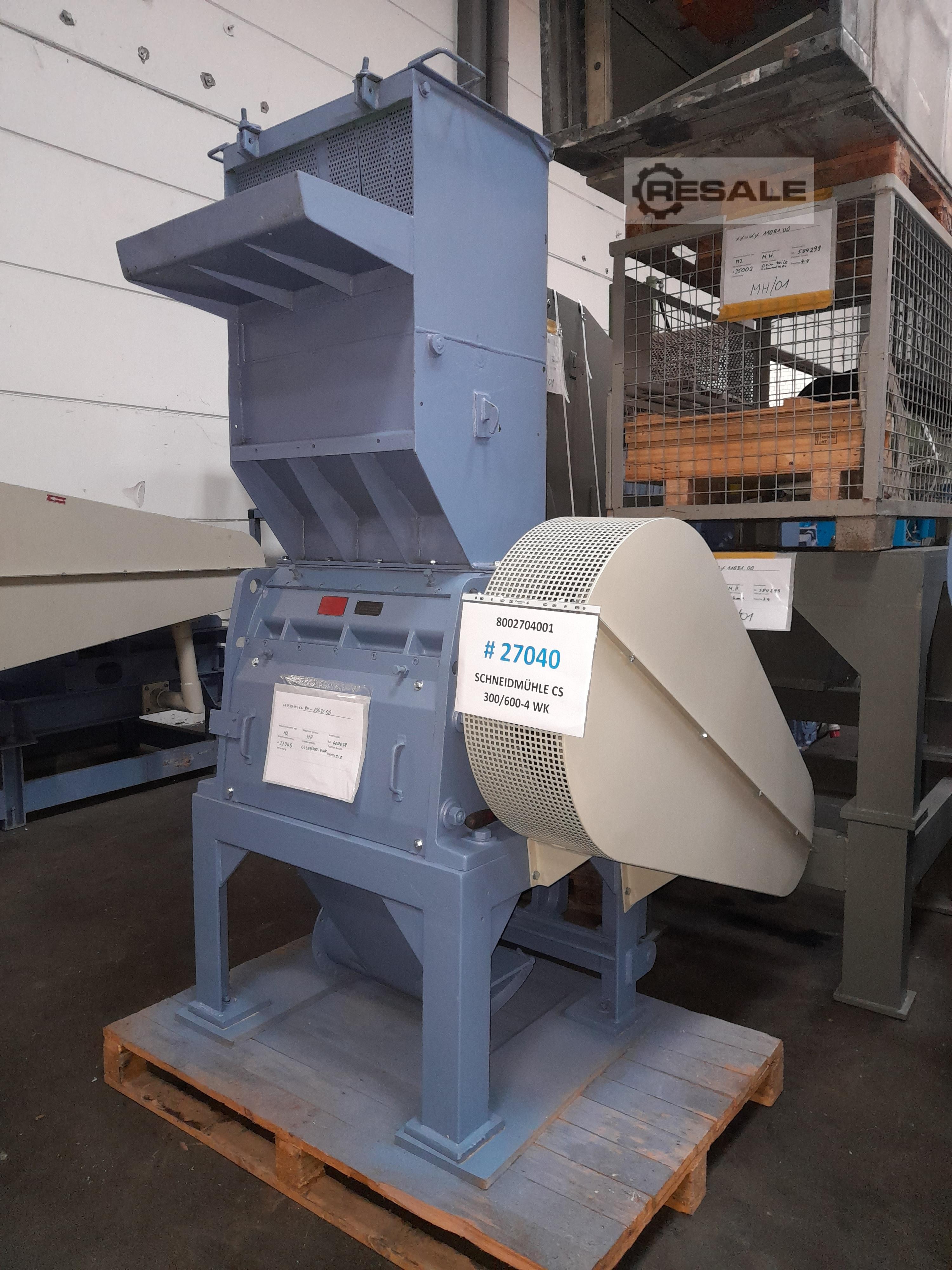

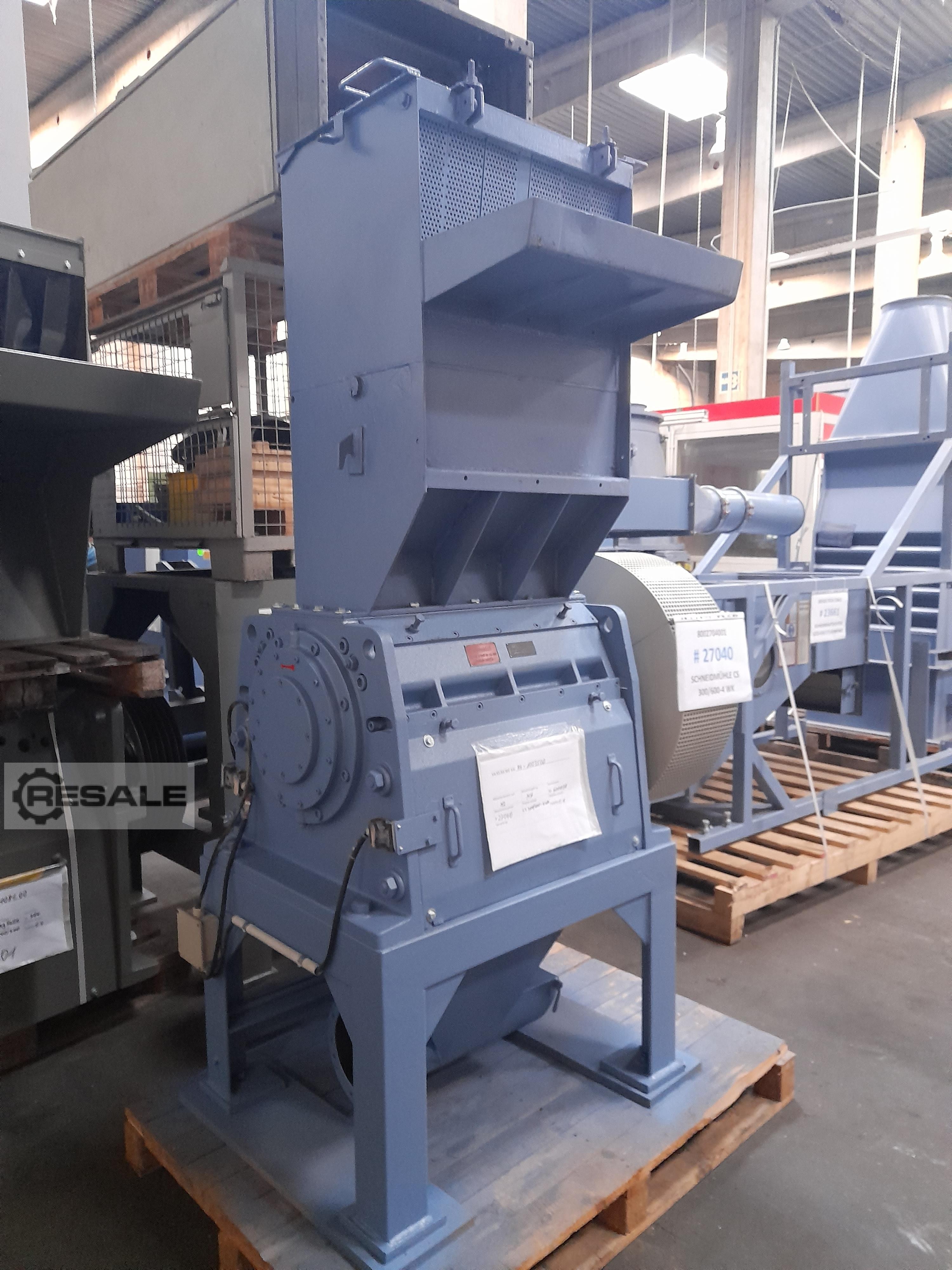

Granulator Manufacturer: CONDUX Type: CS 300/600-4 WK Rotor 300 mm diameter x 600 mm wide 3 rotor blades, open rotor Housing with 4 stator knives With drive motor 11 kw (maximum 30 kw on request)
