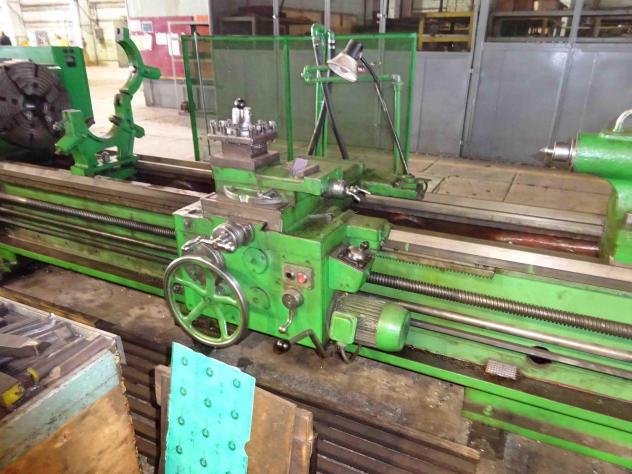

work piece maximum diameter 1000 mm, distance between center 3000mm.,. weight 12,5 ton
Machine is used for the processing of pipe and pipe components, including thread cutting in terms of the single and mass production. Diameter range of processable pipes: 70-290 mm Max diameter of processable work-piece: -Over stand: 800 mm -Over support: 450 mm Diameter of spindle hole: 300 mm Max turning length: -With bevel ruler: 800 mm -W/O bevel ruler: 420 mm Amount of spindle speeds: 12 Limits of spindle rotation frequency: 8-355 turn/min Amount of longitudinal and cross support servings: 32 Limits of: -Longitudinal servings: 0,064-1,025 mm/turn -Cross servings: 0,034-0,458 mm/turn Step limits of cuttable: -Metric threads: 1-12 mm -Inch threads (amount of threads for 1): 2-24 Max turn angle of bevel ruler: +- 10 degrees Overall machine dimensions: -Length: 3600 mm -Width: 1860 mm -Height: 1525 mm Machine weight with electric equipment: 9050 kg
Screw-cutter lathe Ryazan 165 Max. work piece diameter 1200 mm Max. work piece diameter above support 650 mm Distance between centers 5000 mm Diameter of spindle hole 85 mm Spindle speed, rpm 5…500 Spindle moto 22 kW Threading: – metric 1…120 – inch 28…1/4 – module 0,5…30 Number of threads: – metric 44 – inch 31 – module 37 Machine dimensions, mm 8050 x 2200 x 1876 Weight of the machine, kg app. 16800 Price - 12500 EUR
Screw-cutter lathe Ryazan1A64 - max turning length: 2800 mm - turning diameter above the bed (max): 800 mm - turning diameter above cross slide (max): 450 mm - workpiece weight in chuck (max): 5000 kg - lathe length: 5825 mm - lathe width: 2000 mm - lathe height: 1660 mm - lathe weight: 11.5 t Price - 7800 Eur
Screw cutter lathe Ryazan 165 distance between centre: 3000mm, turning diameter over slide rest: 1000 mm, turning length: 3000 mm, spindle bore: 95 mm, weight: 12,5 ton Price 8500EUR

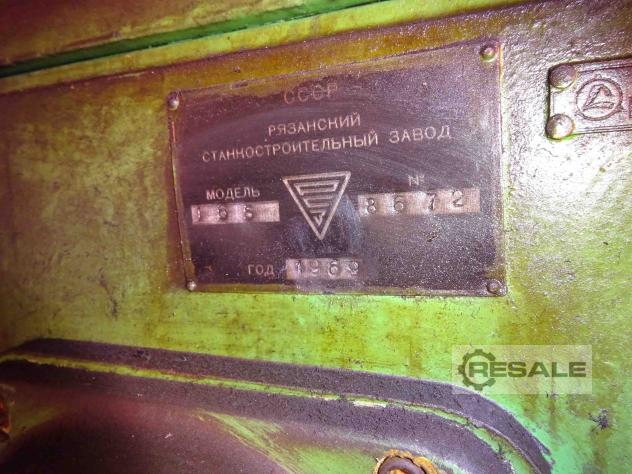

Manufactured by Ryazan plant (Russia) Max. work piece diameter, mm 800 Max. work piece diameter above support, mm 450 Max. work piece length, mm 2800
Screw-cutter Lathe Ryazan 1M63(Russia), 1981, work piece maximum diameter above bed 630 mm; work piece maximum length 2800 mm. price 5200 EUR.
