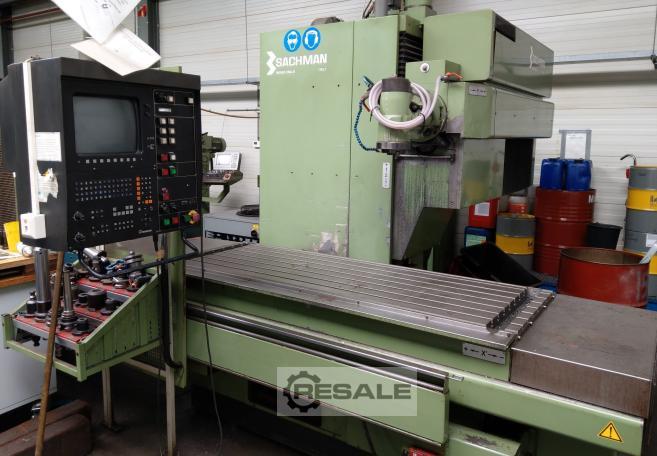

Sachman RP3 milling machine :::SPECIFICATIONS::: CNC Model: Heidenhain CNC version: TNC 426 Head type: Manual bi-rotary head Tool connection: iso 50 Spindle power: 15Kw Number of spindle revolutions: 3000 X Shaft Stroke: 2500mm Y-axis stroke: 800mm Z Axis Stroke: 950mm Table dimensions: 2700 x730mm Guides: flat Type of cutter: fixed bench Mechanical range change: yes :::D IMENSIONS AND WEIGHT::: Length: 4500mm Width: 3736mm Height: 2775mm Weight: 12500Kg
FIXED BENCH MILLING MACHINE :::TECHNICAL SPECIFICATIONS::: CNC Model: Selca CNC Version: S3045 Head Type: Manual Brew head Tool connection: iso 50 Spindle power: 15Kw Number of spindle revolutions: 3000 X Axis Travel: 2500mm Y Axis Stroke: 815mm Z Axis Travel: 1037mm Rapid linear axis feeds X Y Z: 10m/min Table dimensions: 2700 x 730mm Table capacity: 4000Kg Guides: flat Cutter type: fixed bench :::D IMENSIONS AND WEIGHT::: Length: 6600mm Width: 3300mm Height: 2925mm Weight: 9700Kg
Milling machine Sachman GL 120 :::TECHNICAL SPECIFICATIONS::: CNC Model: Selca CNC Version: 4045 Head Type: Automatic Brewhouse Head Additional technical notes for the head: AXIS A 2.5° AXIS B 2.5° Tool connection: iso 50 Number of spindle revolutions: 3000 X Axis Travel: 3000mm Y Axis Travel: 1200mm Z Axis Travel: 1200mm Table dimensions: 3700 x 1100mm
CNC Bedmilling Machine Make: SACHMAN Model: RP 3 x 1800 mm Year: 1996 ( only 5000 hours ) Control: Heidenhain TNC 407 Table: 2000 x 750 mm Speeds: 22 - 3500 rpm Motor: 15 kW Oil cooled universal TVK millinghead
