Automated handling system for picking, positioning and transferring baked goods or biscuits within a production line. Manufacturer: Schubert Machine type: Pick-and-place system / handling and transfer system Year of Make: 2005 Application: Bakery and biscuit production Control: Touchscreen control panel Operating modes: automatic, manual and service functions Product transport: Multi-lane conveyor belt systems Handling system: Automated gripping and repositioning units Equipment: Maintenance platform with railing, extraction and ventilation system, emergency stop switch Fan manufacturer: Rosenberg Fan type: RS 200 L (U05-07) Fan power: 0.160/0.21 kW Fan speed: 2540/2690 rpm Fan voltage: 230 V
Material width 150 mm, material thickness 0.5 -3.0 mm Colour: green Total power requirement: 380 V Weight: 350 kg Dimensions: 800 x 1200 x 1350 mm Roller diameter: 24 mm Machine number 700257

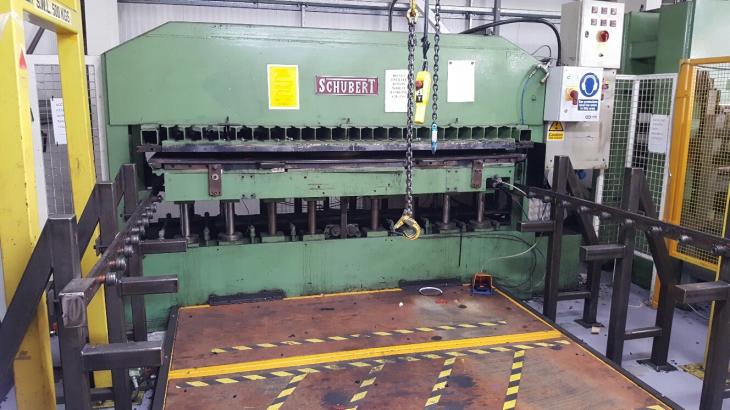

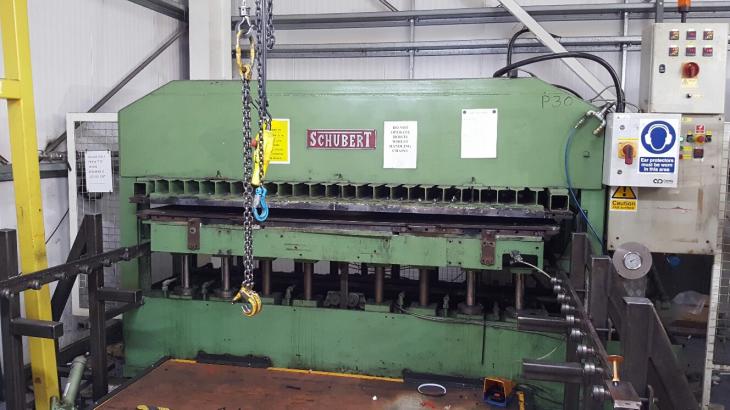

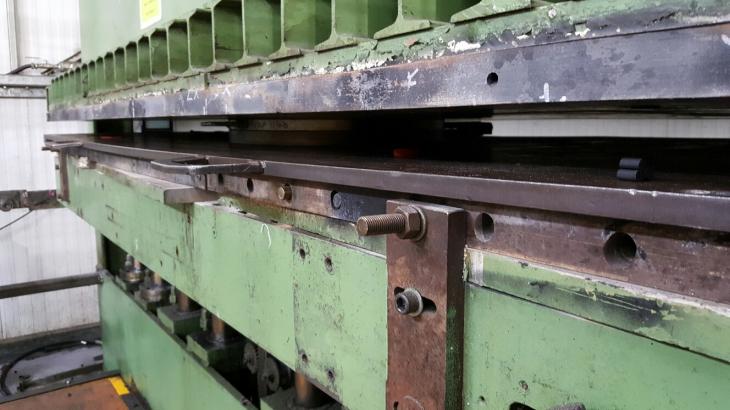

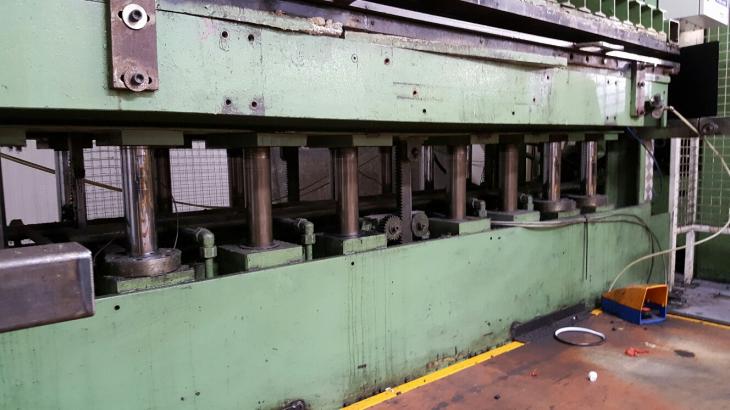

Schubert Press The platen size is 1390 mm (52”) x 2490 mm (98”) Electric heaters Make - Schubert Daylight – 305mm Floor standing Total number of rams: 16 Ram diameter: 2 ¾” Working pressure 3500 PSI The overall dimensions are length 3850mm x width 1500mm x height 2200mm Operational The condition of the hydraulics and pump unit along with ram seals is good Spare seals maybe possible (video link available on request)
material width:120 mm material thickness:0,4 - 4,0 mm no. of straightening rolls:19 straightening roll diameter:24 mm material cross-cut:120 mm² :40 mm bending speed:5 - 25 m/min weight:0,85 t dimensions (WxDxH):1,2 x 1,7 x 1,6 infinitely variable drive:Stöber
sheet width - max.: 630 mm sheet thickness - max.: 6 mm sheet thickness - min.: 0,3 mm number of straightening: 23 Rollers straightening roll diameter: 30 mm straightening feed: 10 m/min workpiece length - min.: 50 mm distance between roll centers: 20 mm : 0,01 mm main drive motor: 6 kW weight: 4,3 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
material width: 0630 mm material thickness: 6,00 mm no. of straightening rolls: 23 sheet thickness - min.: 0,30 mm diam. of the rolls ca.: 30 mm straightening feed: 10 m/min total power requirement: 6 kW weight of the machine ca.: 4,30 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
material width: 250 mm material thickness: 2 mm no. of straightening rolls: 19 weight of the machine ca.: 1,5 t dimensions of the machine ca.: BxTxH 1500x1500x2400 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
