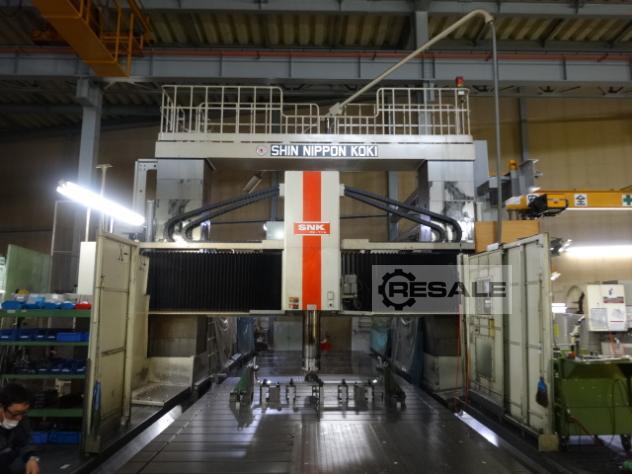

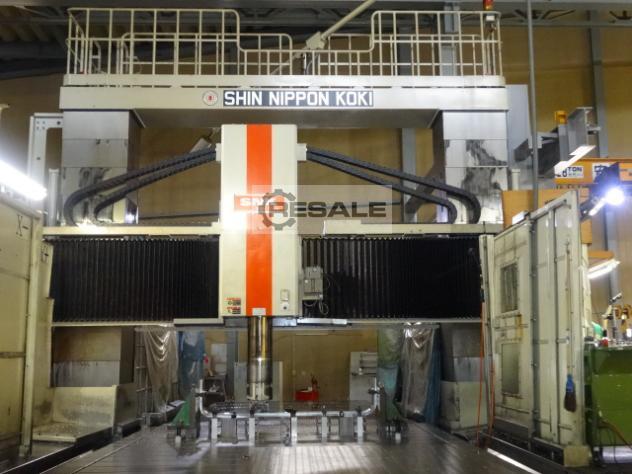

5-Face double column machining center SNK -RB200F Year 2006 Control FANUC F-30i Table: 4000×2000mm X：4250mm Y：2900mm Z：600mm W：850mm B：±95 degree C：±360 degree ATC：60, BT50, 40～6000min-1 Distance between column ：2850mm Main axis Dia：φ90mm Chip conveyor 2 Auto Tool measurement（B0°、C0°）
Double Column Machine SNK RB-7VM Year 2007 5 axis control (X,Y,Z, Wm, Ws) FANUC 18i-MB Bet Column : 4100 Table : 6000 X 3500 XYZ: 6250 x 4500 x 600 W: 2100 Main axis / Quil: 90/ 300 40~8000 rpm ATC :40, AAC Angular Attachment : (L=300)
SNK CMV-100/5 5-Axis CNC Horizontal Machining Center New 2016 - Installed 2017 CNC Control: yes CNC Control: Fanuc 31i-B5 Main Specifications - See Below: See Below Table Size:: 1000mm x 1000mm (39.3 x 39.3 in) Distance from Pallet surface to spindle center: 0-1,300mm (0 -51.1 in) Distance from pallet surface to spindle end (when spindle is in vertical position): 0-1,000 mm (0-39.3 in) Max Table Load: 1,500 kg / table (3,300 lbs.) Spindle:: See Below Spindle Speed: 40 to 8,000 RPM Spindle Nose Taper: CT-50V (Dual face contact type) Coolant Thru Spindle: yes Spindle motor drive: VAC 30/22 kW (40/29.5 HP) Torque N-m: 26 to 653 Nm Travels: See Below Table Longitudinal (X-Axis): 1,500 mm (59.0 in) Column transverse (y-Axis): 1,330 (52.3 in) Spindlehead vertical (Z-Axis): 1,300 mm (51.1 in) Spindlehead tilt (A-Axis): +30 to -120 deg. Table rotation (C- ...
