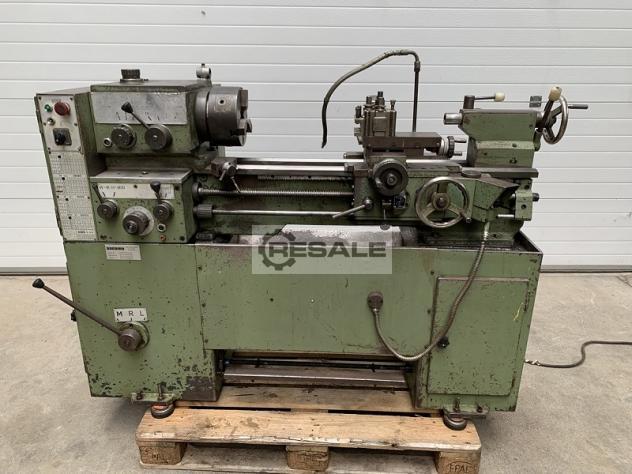

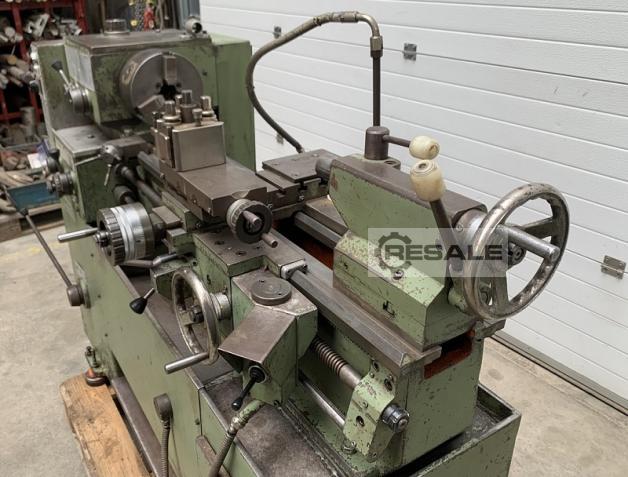

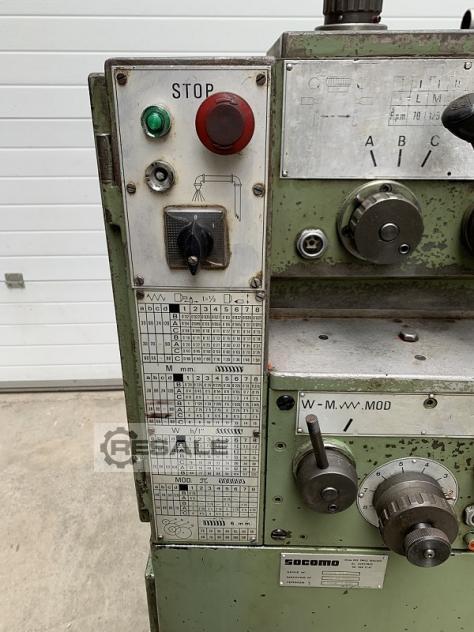

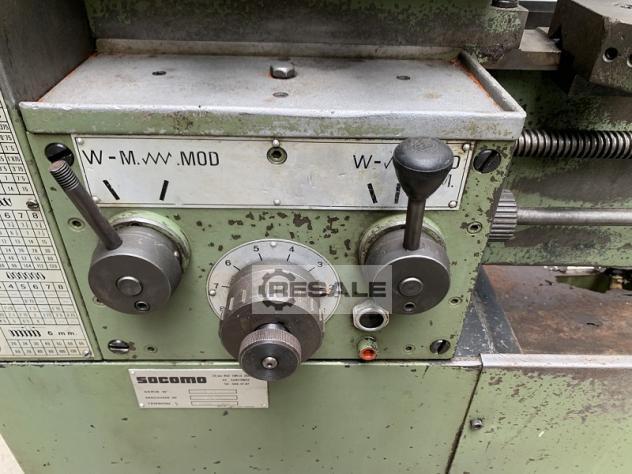

Parallel Lathe SOCOMO type STAR 305 Between points: 700 mm Maxi Ø on bench: Ø 320 mm Maxi Ø over saddle: Ø 175 mm Spindle diameter: Ø 36 mm Rotation: from 70 to 2000 RPM 3-jaws chuck Ø 200 mm Threadings: Metric + Whitworth Tailstock: CM3 Auto feeds longitudinal + transversal Length: 1800 mm Depth: 800 mm Total height: 1200 mm Weight: approx 1 T
Parallel Lathe SOCOMO Between points: 1000 mm Maxi Ø on bench: Ø 400 mm Maxi Ø over saddle: Ø 200 mm Spindle diameter: Ø 41 mm Spindle speed: from 45 to 2000 RPM Square turret 3-jaws chuck Ø 200 mm Threadings: Metric + Whitworth Tailstock: CM4 Auto feeds X - Y Lubricant tank Voltage: 380 V Dimensions (L x W x H): 2200 x 1100 x 1700 mm Weight: approx 1,5 T
