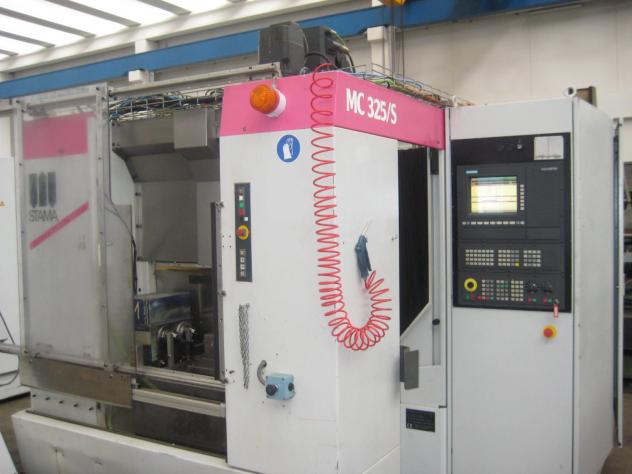

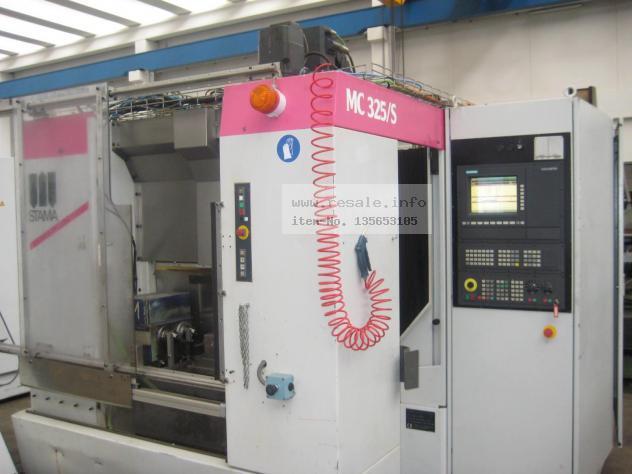

4 axis vertical machining center for input shafts machining 2 pallets STAMA MC 325S 2 pallet with rotopallet Peiseler X=500 Y=300 Z=350 mm Rapids X,Y,Z = 40/40/45m 36 tools ISO 40 36-9000 rpm Table 950 x 800 mm CNC SIEMENS 840 N.2 double 4th axis Coolant through spindle Lavorazione input shafts (ex TRW) INTERESTING PRICE (package of 2 machines)
used
Table size: 700 x 1200 mm traverse path x/y/z: 600/300/350 mm spindle retainer: SK 40 ISA kl. / gr. Table/spindle distance: 150/540 mm spindle speeds: 45-6000 rpm number of tool stations: 12 pieces feeds: 5000-20000 mm / min rapid traverse rate: 5000-20000 m / min spindle drive: 5.5 kW Electr. Supply: 380 V, 12 kVA kW space: 2350 x 2100 x 2500 mm weight: 3800 kg

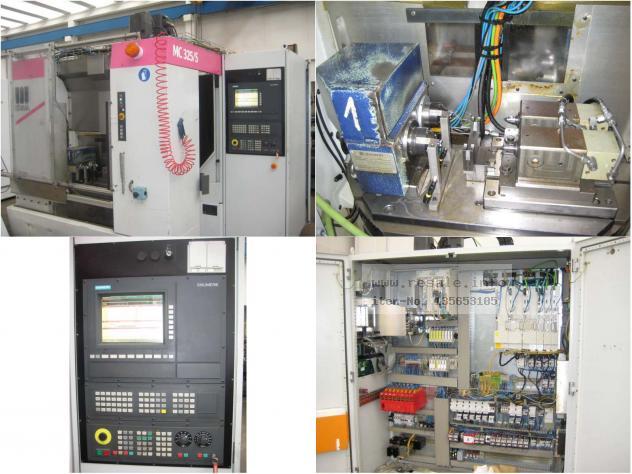

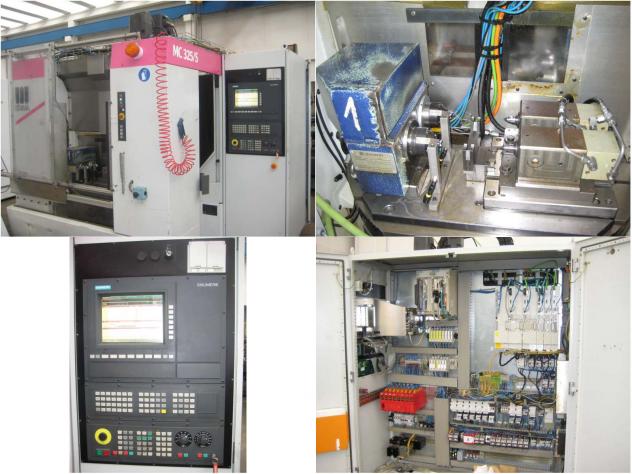

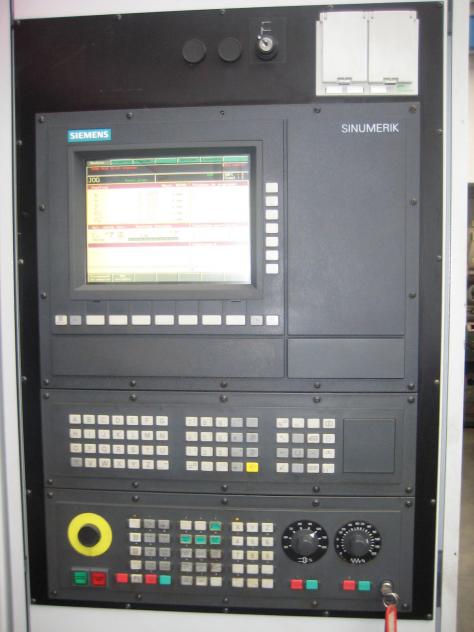

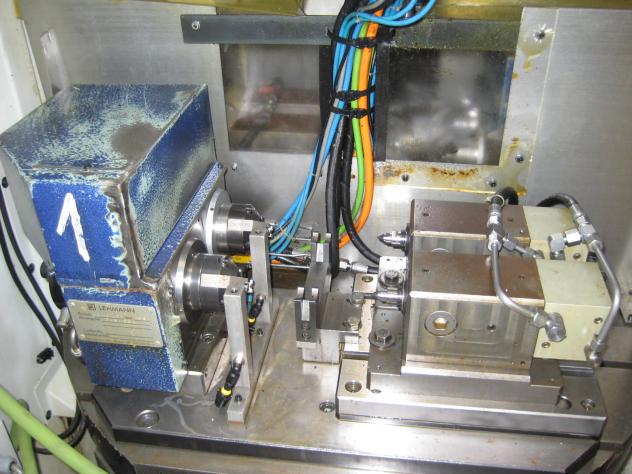

STAMA Mod. MC 2 1997-325S pallet (Pendeltisch Peiseler ATK 520) Aufspannflaeche Pallet: 2 x 550 mm x 330 mm Max Werkstueckgewicht: 2x180kgs X = Y = Z 500 300 = 350 mm Min/Max Distance Spindelnase-Tisch: 200-550 mm rapid traverse X, Y, Z = 40/40/45 36 40 36 Werkzeuge ISO-9000 RPM Spindle IKZ CNC SIEMENS 840 c # 2 LEHMANN doppel 4. Achsen IKZ Unter Strom in unserem Lager It machined \\input shafts\\ (car power steering component) Special price for quick removal
Manufacturer: STAMA Model: MC 326 Year of Manufacture: 2001 Connection Voltage: 400 V, 3-phase, 50 Hz Nominal Current: 72 A Main Fuses: 3x80 A Min. Connection Cross Section: 25 mm² CE Marked: Yes Find more here - / Contact us at -
Travel X/Y/Z: 800mm/400mm/350mm, rapid traverse X/Y/Z: 45m/min, feed force X/Y/Z: 7kN/7kN/12kN. Tool holder: SK40, speed: 12000rpm, spindle power: 21kW. Tool positions: 60, max. tool diameter: 125mm, max. tool length: 250mm. Machine dimensions X/Y/Z: approx. 4200mm/6200mm/3300mm, weight: approx. 7200kg, control: Siemens. The workpiece spindle of the machine is defective. Documentation available. On-site inspection is possible.
Travel X/Y/Z: 1000mm/400mm/360mm, speed: 12000rpm, feed X/Y/Z: 10000mm/min, rapid traverse X/Y/Z: 45m/min, feed force X/Y/Z: 4000N/4000N/8000N. Spindle bearing diameter: 65mm, max. tool diameter/length: 125mm/250mm, tool holder: HSK63, max. torque: 60Nm, max. milling capacity: 350cm³, max. drilling diameter: 32mm, max. thread diameter: M30. Dimensions X/Y/Z: approx. 3600mm/3800mm/3300mm, weight: approx. 6100kg, control: Fanuc 18i MB. Hydraulic unit included. Documentation available. An on-site inspection is possible.
Travel X/Y/Z: 1000mm/400mm/360mm, speed: 12000rpm, feed X/Y/Z: 10000mm/min, rapid traverse X/Y/Z: 45m/min, feed force X/Y/Z: 4000N/4000N/8000N. Spindle bearing diameter: 65mm, max. tool diameter/length: 125mm/250mm, tool holder: HSK63, max. torque: 60Nm, max. milling capacity: 350cm³, max. drilling diameter: 32mm, max. thread diameter: M30. Dimensions X/Y/Z: approx. 3600mm/3800mm/3300mm, weight: approx. 6100kg, control: Fanuc 18i MB. Hydraulic unit included. Documentation available. An on-site inspection is possible.
x-travel:800 mm y-travel:400 mm z-travel:350 mm total power requirement:44 kW weight of the machine ca.:8,8 t dimensions of the machine ca.:6,1 x 4,1 x 3,3 m tool taper:HSK63 number of spindle speeds:36-12.000 Number of tools:2 x 21 St. rotary table diameter:1340 mm
x-travel:2200/3400 mm y-travel:550 mm z-travel:510 mm total power requirement:36,8 kW table length:3050 mm Traverse path can be used as a whole or divided into two areas for pendulum machining. 3 axis HSK 100
This 7-axis STAMA MC 526/M was manufactured in 2005, featuring a Siemens Sinumerik 840 D control system. It includes a milling spindle with a speed of 10,500 rpm and a turning spindle speed of 5,000 rpm. The machine offers a tool magazine with 132 tools capacity and rapid traverse rates up to 60 m/min. Ideal for complex milling and turning tasks. If you are looking to get high-quality milling and turning capabilities consider the STAMA MC 526/M machine we have for sale. Contact us for more information.
This Stama MC 535 Vertical Machining center was manufactured in the year 2001 in Germany. It is equipped with 4 t-slots and operates with 3-axis. The max. workpiece weight is 3000 kg and the max. spindle speed 8000 rpm. The machine is in top condition and fully operational with currently 18,485 operating hours. It will be sold because of replacement with a new and larger one. For the moment it is not connected but upon agreement, on-site testing is possible.
X-travel: 500mm, y-travel: 380mm, z-travel: 360mm, main spindle/turning spindle speed: 10,500/ 3000/min, max. axis speed: 60m/min, control: Siemens 840D, with HSK-A63 and collet chuck, some spare parts are also available.
X-travel: 1600mm, y-travel: 400mm, z-travel: 350mm, max. rotational speed: 10,500/min, rapid traverse: 45m/min, feed rate: 1-10,000mm/min, connected load: 46kVA, controls: Siemens 840D, with documentation, optionally there are one automation and one counter bearing to the fourth axis available.
x-travel: 500 mm y-travel: 380 mm z-travel: 300 mm : 5,5 KW table surface area: 650 x 380 mm Control: FANUC 16M Control: distance spindle /table: 250-450 mm workpiece: 12 Stk. tool adaptor: SK 30 turning speeds: 8000 U/min total power requirement: kW weight of the machine ca.: 1700 KG dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 1250 mm y-travel: 800 mm z-travel: 240 mm control: Siemens turning speeds: 45 - 3600 U/min total power requirement: / kW weight of the machine ca.: 9 t required space: / m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
