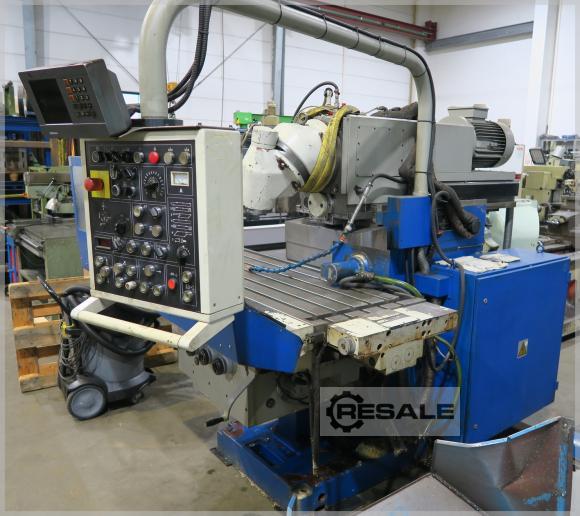

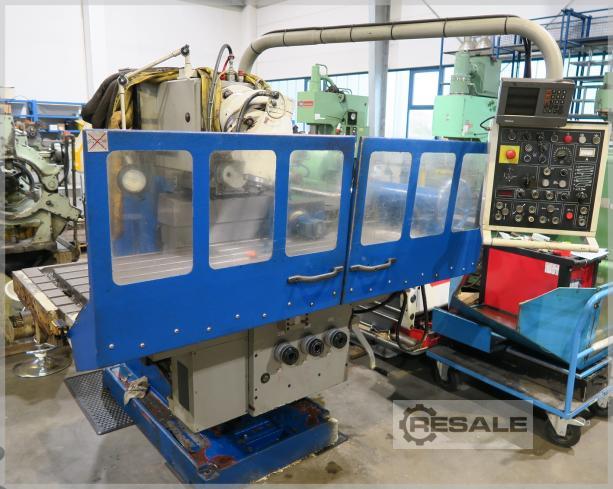

Key data: 1400 mm, 630 mm, 500 mm
Table size 1800 x 630 mm Speed range 56 - 2800 1/min Tool holder ISO 50 Travel X / Y / Z 1400 / 630 / 500 mm Feed range X, Y 10 - 2000 (Z 2.5 - 500 ) mm/min infinitely variable Main motor 15 kW, connected load approx. 20 kW Incl. Universal milling head IUG 32A swivel 360° horizontal milling spindle Rapid traverse, automatic cycle Digital display Heidenhain ND 750 Coolant Setup Work area cladding hydraulic tool clamping CE Declaration of Conformity
Inv. Num. : 6561 Type: VMC 40/8 Producer: Strojtos Created: 2005 Parameters: Control system: Heidenhain 530 Maximum table load (uniform): 500 kg X-axis travel: 800 mm Y-axis travel: 400 mm Z-axis travel: 500 mm Spindle speed: 8000 1/min Number of axles: 3 Cone: ISO 40 Machine weight: 4350 kg Equipment: Heidenhain Tool Probe Tool Holder
Control Heidenhain ... TNC 530 Clamping table surface ... 2000 x 750mm Axis X ... 1565mm Axis Y ... 800mm Axis Z ... 620mm Spindle speed ... 0-10000 rpm Controlled axes ... 3 ISO 40 Magazine slots ... 32 L x W x H ... 5070 x 2900 x 3100mm Machine weight ... 13000kg The machine is in good condition, possible to test under electricity.
Control Heidenhain ... TNC 530 Clamping table surface ... 500 x 1100mm Axis X ... 1000mm Axis Y ... 500mm Axis Z ... 495mm Spindle speed ... 10-12000 rpm controlled axes ... 3 ISO 40 Magazine slots ... 32 L x W x H ... 3170 x 2750 x 2720mm Machine weight ... 6000kg

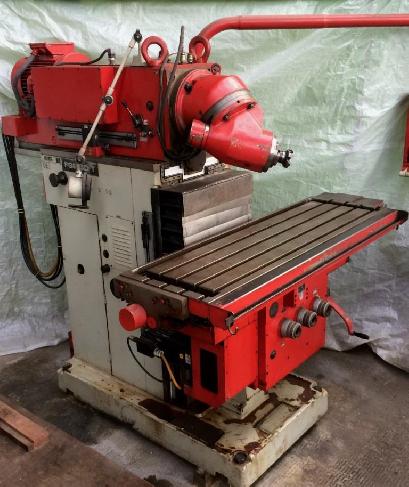

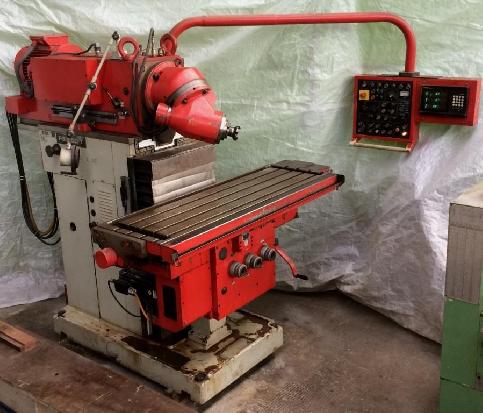

Table clamping surface: 500 x 1600 mm table movement x: 1220 mm table movement y: 500 mm table movement z: 500 mm spindle retainer: SK 50 spindle speeds: 56-2800 rpm feeds longitudinal & cross: 10-1800 mm / min feed vertically: 2.5-450 mm / min. Supply: 400 V, 16 kVA kW space: 2000 x 2250 x 2150 mm weight: 4500 kg
