Key data: 400 mm, 500 mm, 425 mm

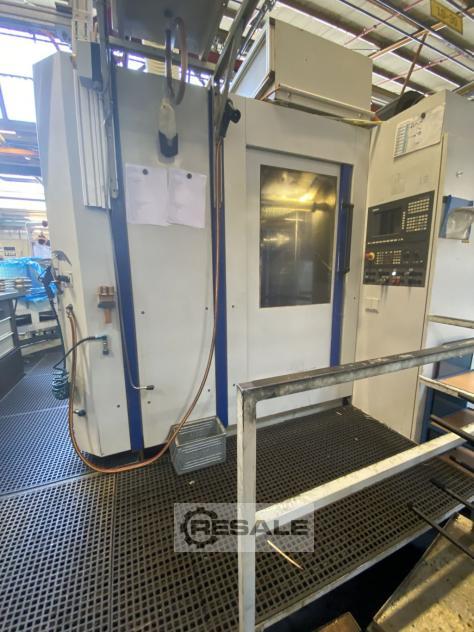

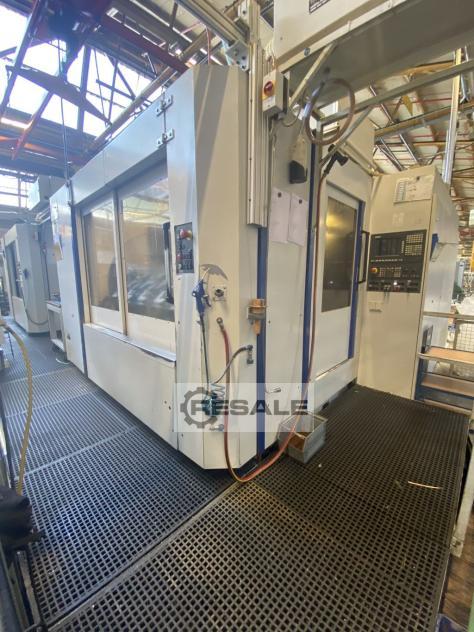

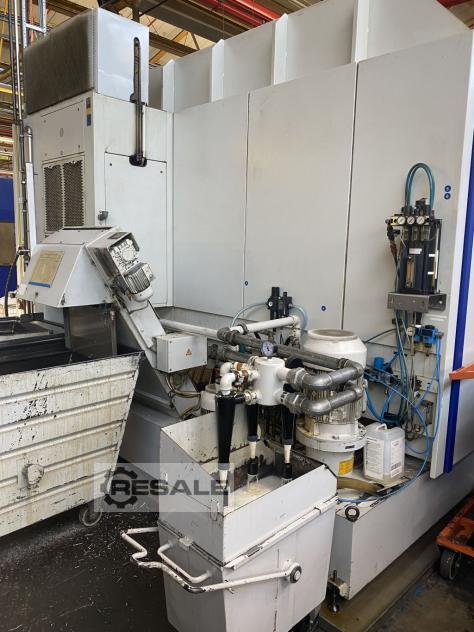

GENERAL Project No.: 905673 Quantity: 1 pcs. Manufacturer: SW (Schwäbische Werkzeugmaschinen) Type: BA W04-22 Control: Siemens 840 D Year of Make: 2008 Condition: Used machine Layers approx.: 2-3 layers DESCRIPTION MILL Travel in X 400 mm Travel in Y 500 (775) mm Travel in Z 425 mm Max. rapid traverse speed in X/Y/Z 100/100/100 m/min Max. acceleration in X/Y/Z 14/14/20 m/s2 Feed force in X/Y/Z 10000/10000/2×5000 N Direct displacement measurement system X/Y/Z/A(U)/C1(C2)/W1(W2) Linear Actuator X/Y/Z Tool holder HSK-A 63 Max. speed milling spindle 17500 1/min Max. power at ED 10-40/100% 35/26 kW Max. torque at ED 10-40/100% 80/60 Nm Spindle diameter in the front bearing 80 mm 2 pcs horizontally arranged milling spindle Spindle spacing 400 mm Pneumatic tool system control Pneumatic tool taper cleaning in milling spindle Torque support for multi-spindle ...
SW BA600-2 CNC machining center with swivel table / built in 1999 / Siemens 840C control / incl. chip conveyor, coolant lubricant preparation and extraction
Key data: 400 mm, 400 mm, 400 mm
Sale of a double-spindle milling machine - machine can still be viewed under power until week 30
Key data: 600 mm, 400 mm, 400 mm
SW BAS 03 - 12, Year of manufacture 2006, Control Siemens 840 D, Travel X/Y/Z 600/400/400 mm, Spindle speed up to 17,500 rpm, Recording HSK, Tool changer 40-speed, NC swivel table 450 830 mm, max. table load 400 kg, Minimum quantity lubrication, Water cooler IKZ 40 bar, scraper belt conveyor,
Key data: 400 mm, 700 mm, 400 mm
Inv. Num. : 7006 Type: BA400-2 Producer: SW Created: 2008 Parameters: Control system: Siemens Sinumerik 840D Number of stacking positions: 120 Maximum spindle speed: 17500 1/min X-axis travel: 400 mm Y-axis travel: 700 mm Z-axis travel: 400 mm Cone: HSK63 Equipment: IKZ Conveyor High Pressure Pump Filtration Knoll 1x two-seater 5th axle W1W2 on U-side (manufacturer SW) Laser Inspection of Broken Tools
Key data: 400 mm, 700 mm, 400 mm
Inv. Num. : 7008 Type: BA400-2 Producer: SW Created: 2011 Parameters: Control system: Siemens - Sinumerik 840D Number of stacking positions: 120 Maximum spindle speed: 17500 1/min X-axis travel: 400 mm Y-axis travel: 700 mm Z-axis travel: 400 mm Cone: HSK63 Equipment: IKZ Conveyor High Pressure Pump Filtration Knoll 1x two-seater 5th axle W1W2 on U-side (manufacturer SW) Laser Inspection of Broken Tools
This 3-axis SW BA 40 NC vertical machining center was manufactured in 1999. Ideal for precision machining tasks, it offers robust construction and reliable performance. Consider the opportunity to buy this SW BA 40 NC vertical machining center. Contact us for more information.
This 4-axis SW BX 621 horizontal machining center was manufactured in 2013. It features a robust SINUMERIK 840D sl CNC control system and dual liquid-cooled motorized spindles, each offering up to 6,000 rpm and 26 kW power. The machine supports a maximum tool diameter of 115mm and a tool length of 300mm, with a rapid traverse speed of up to 60 m/min. Ideal for precision machining, the SW BX 621 machine we have for sale. Contact us for more information.
This 4-axis SW BAS 03-22 vertical machining center was manufactured in 2007. It offers robust capabilities for precision machining. Consider the opportunity to buy this SW BAS 03-22 vertical machining center. Contact us for more information about this machine.
