Model
(Manufacturer: TOX PRESSOTECHNIK)
Key data: 72 kN, 60 mm, 200 mm
Very neat C-column press from TOX Pressotechnik Very good condition,
Key data: 750 kN, 150 mm
Control: STE 328-89-1 1/2 complete TOX Powerhouse: S75.160.200.12D Table size: 996 x 695 mm Installation height: 600 mm Total stroke: 150 mm Power stroke: 10 mm Weight: 5700 kg Electrical connection 230 V

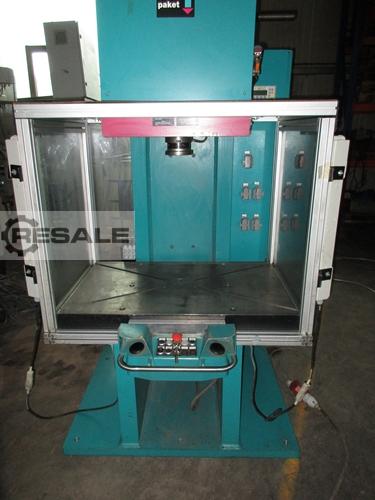

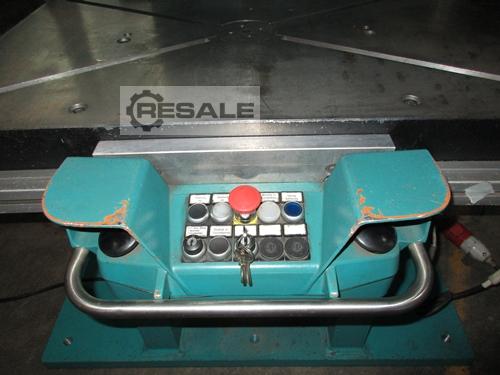

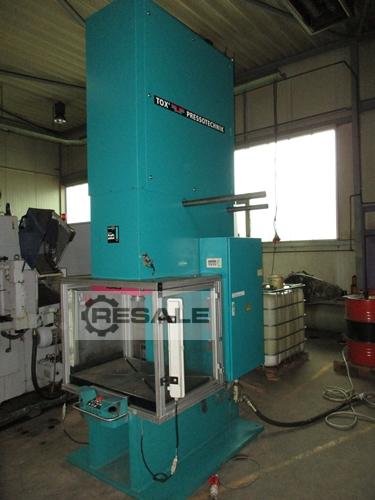

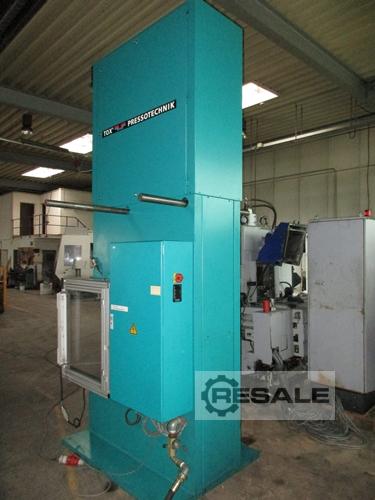

C - Frame Pneumatic, Hydraulic Press Pressing force: max. 75 to. Control: STE 328-89-1 1/2'' complete. Table area: 996 x 695 mm. Installation height: max. 600 mm. Total stroke: 150 mm. Force stroke: 10 mm. Incl. 2 - hand control panel, protective device and documentation. Weight: 5700 kg. Abm. WxDxH: approx. 1300 x 1700 x 3700 mm. Good operational condition. The machine can be inspected and demonstrated under power in consultation and is immediately available. Please also note my other entries.
Pneumohydraulic cylinder TOX PressotechnikHydro-pneumatic press, power packType: S 04.00.050.12 DFabr. Item No.: 208696.460 Year of construction approx. 2000Printing capacity: 4.0 ton. at 10 barPressure capacity: 3.0 ton. at 8 barPressure capacity: 2.6 ton. at 7 barPressure capacity: 2.4 ton. at 6 barPressure capacity: 2.0 ton. at 5 barPressure capacity: 1.6 ton. at 4 barPressure capacity: 1.2 ton. at 3 barTotal stroke: 50 mmPower stroke: 12 mmPiston rod: 30 mmThread mount piston rod: M22 x 2 mmCompressed air requirement: 3 to 10 bar- electronic
There are two identical cylinders available, max. pressure: 6bar, total stroke: 100mm, power stroke: 12mm, max. press force: 39.9kN, fast approach force: 1700mm, retracting force: 1900N, weight: 20kg.
