Model
(Manufacturer:

TRIMILL)


boring mills and machining centers / Horizontal Processing Centers
date: 12.11.2026
approved
dealer
item-No.: 162752102
New in: 2004 used
approved
Location: cz

Key data: 1600 mm, 1200 mm, 800 mm

Manufacturer: Trimill Model No.: HF 1612 Year: 2004 Condition: Used Stock number: 9519 Control system: SIEMENS Sinumerik 840 Work table length: 1600 mm Work table width: 1600 mm Maximum table load (uniform): 20000 kg X-axis travel: 1600 mm Y-axis travel: 1200 mm Z-axis travel: 800 mm Machine height: 3749 mm Machine length: 8335 mm Machine width: 7070 mm Machine weight: 48300 kg

boring mills and machining centers / Vertical Numerically Controlled Machining Centres
date: 06.11.2026
item-No.: 162747604
New in: 2006 used
TOP SELLER
Location: cz

Key data: 2300 mm, 1200 mm, 800 mm

Control Heidenhain ... TNC 530 Clamping table surface ... 2300 x 1600mm Axis X ... 2300mm Axis Y ... 1200mm Axis Z ... 800mm Spindle speed ... 30-12000 rpm. controlled axes ... 5 IKZ ... 20bar HSK 100 Max. spindle torque ... 200Nm Magazine spaces ... 10 Axis C ... ±185° Axis B ... + 60/-90° Rapid traverse ... 30m/min Machine weight... 23000kg L x W x H ... 4800 x 4750 x 4660mm Workpiece probe, spindle IMT 8kW/30 000rpm. In 2024 new spindle.

boring mills and machining centers / Vertical Processing Centers
date: 12.11.2026
approved
dealer
item-No.: 162738338
New in: 2015 used
approved
Location: cz

Inv. Num. : 8573 Type: VC 1810 Producer: TRIMILL Created: 2015 Parameters: Control system: Heidenhain iTNC 530 HSCI Work table length: 2000 mm Work table width: 1370 mm Maximum table load (uniform): 10000 kg Spindle drive power: 25 kW Maximum vertical spindle speed: 14000 1/min X-axis travel: 1800 mm Y-axis travel: 1000 mm Travel Z axis: 700 mm Maximum feed speed axis X: 30000 mm/min Maximum feed speed axis Y: 30000 mm/min Maximum feed speed axis Z: 30000 mm/min Cone: HSK – A80 Number of all tools: 10 pieces Maximum tool diameter: 110/125 mm Max. tool weight: 12 kg Machine weight: 18000 kg Equipment: Tools Thermal clamps

boring mills and machining centers / Vertical Processing Centers
date: 12.11.2026
approved
dealer
item-No.: 162737897
New in: 2005 used
approved
Location: cz

Inv. Num. : 8526 Type: VC 1110 Producer: Trimill Created: 2005 Parameters: Control system: Heidenhain iTNC 530 Switch-on hours: 16373 h Hours: 14340 h Number of axes: 3 X-axis travel: 1100 mm Y-axis travel: 1000 mm Z-axis travel: 550 mm Machine weight: 16000 kg

boring mills and machining centers / Vertical Numerically Controlled Machining Centres
date: 24.10.2023
item-No.: 159029281
New in: 2010 used
Location: cz

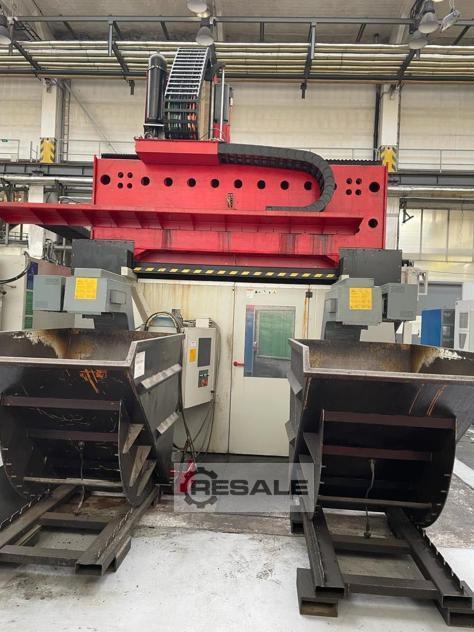

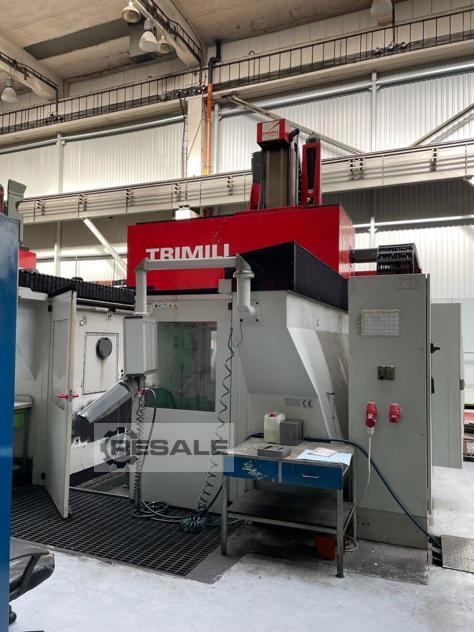

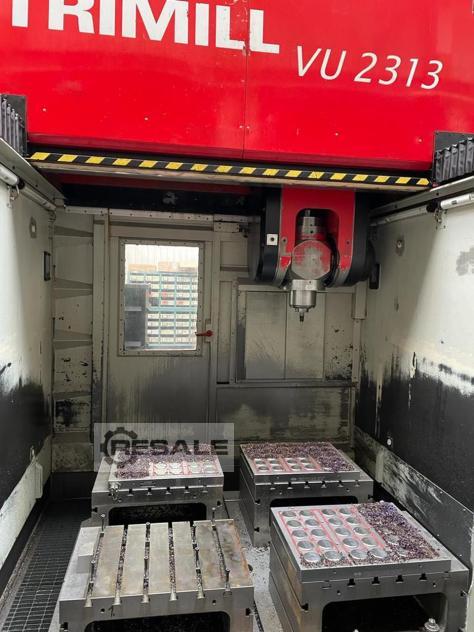

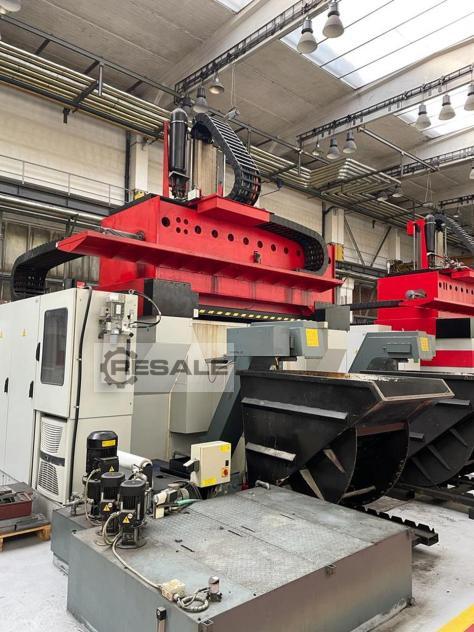

Catalog No. : 5889 Type: VU 2313 Producer: TRIMILL Made in: 2010 Characteristic: Control system: HEIDENHAIN iTNC 530 Table dimensions: 1800x1800 mm Maximum table load: 18000 kg Number of axes: 5 pcs Total hours: 68.648 h Hours on: 41.293 h Travel length X-axis: 2300 mm Travel length Y-axis: 1300 mm Travel length Z-axis: 1000 mm Number of tools in the magazine: 10 pcs Max. pindle speed: 10000 1/min Max. Tool diameter: 110 mm Max. tool lenght: 450 mm Max. tool weight: 12 kg Power of the spindle: 25 kW Tool clamping: HSK-A 100 Weight: 38000 kg Equipment: Turntable Milling head Chip convoyer 2x Probe HEIDENHAIN and BLUM

date: 25.10.2023
item-No.: 158584018
New in: 2017 used
Location: de

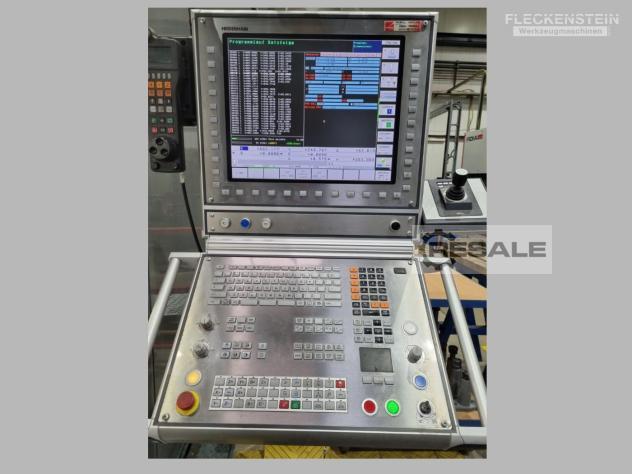

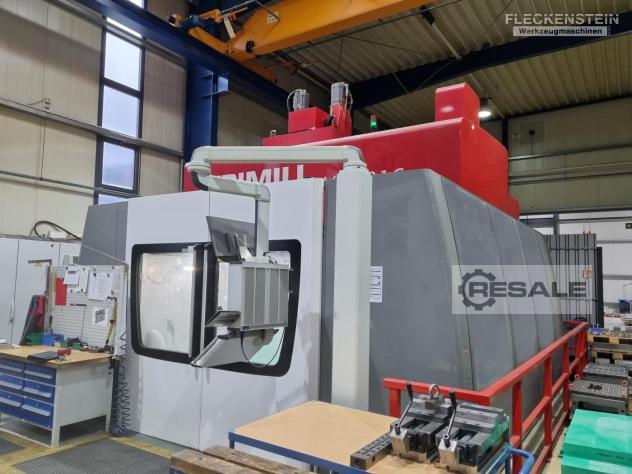

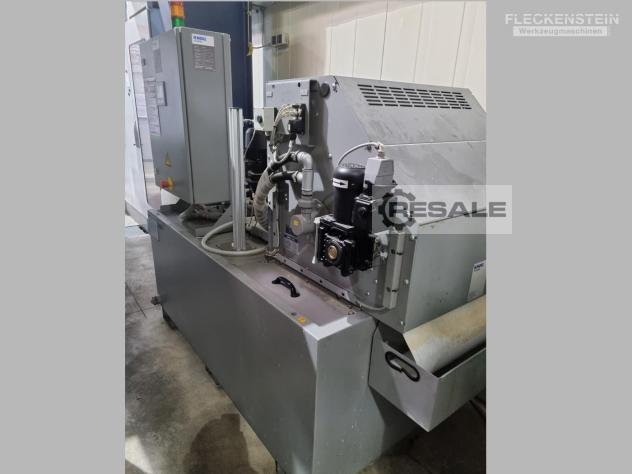

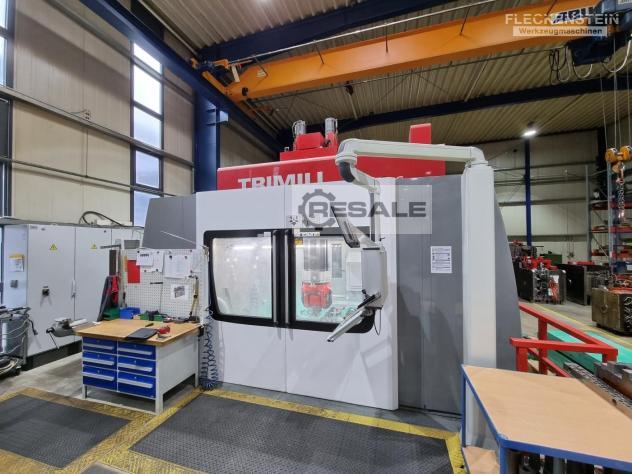

TECHNICAL DATA SHEET CNC – Gantry gantry milling machine TRIMILL brand Type VF3016 Year of construction 2017 Control HEIDENHAIN iTNC530 HSCI Travel X-axis (longitudinal): 3,000 mm Y-axis (transverse): 1,600 mm Z-axis (vertical): 1,200 mm B-axis (swivel axis milling head) +/- 100 ° C-axis (rotation axis milling head) +/- 240 ° Structure / Axis concept AC servomotors with digital control for all axes Gantry drive of the X-axis Rack and pinion drive in the X-axis, backlash-free due to electrically prestressed, water-cooled motors 2 ball screws each in the Y and Z axes Guides of all linear axes are designed as prestressed roller guides Hydro-pneumatic weight compensation of the Z-axis via 2 cylinders Stationary frame components made of mineral casting, movable main components made of grey or nodular cast iron Double beams in load- and thermosymmetric d ...

milling machines
date: 22.06.2025
item-No.: 162709561
New in: 2007 used
Location: de

This 4-axis TRIMILL DEPO Mill was manufactured in 2007. A robust vertical machining center featuring a Heidenhain iTNC 530 control, a high-frequency spindle with a speed of 16,000 min-1, and a main spindle speed of 10,000 min-1. It supports a maximum workpiece weight of 20,000kg and offers a spacious clamping surface of 2300 x 1600 mm. For more information about this vertical machining center, please reach out to us.
