used baler Manufacturer: UNOTECH Type: UPAXX 70 Year of Make: 2022 specifications: Press force: 700 kN Specific pressing force: up to 450 N/cm² Channel cross-section (h x w): 350 x 500 mm Filling opening (l x w): 1,250 x 420 mm Main pump drive power: 30 kW Performance under operating conditions: - At 85 kg/m³ bulk density in 1-stroke operation approx. 1.7 t/h - At 85 kg/m³ bulk density in 2-stroke operation approx. 2.5 t/h Package density for tin cans: up to 1,200 kg/m³ Machine weight depending on equipment: 9.5 t Operating voltage: 3 x 400 VAC / 50 Hz / N / PE Machine has slight fire damage and will be completely repaired if the order is placed.

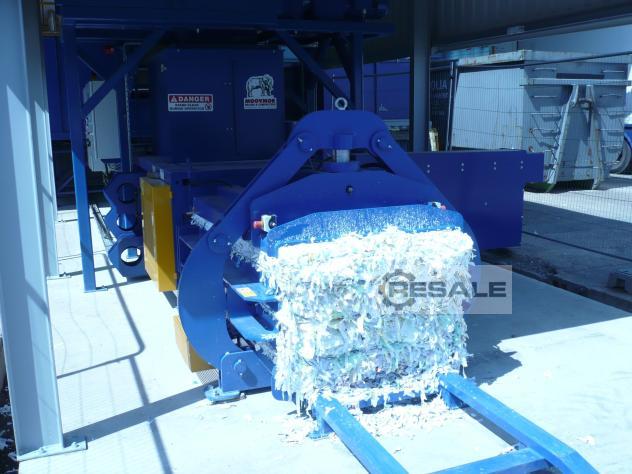

automatic baler Manufacturer: UnoTech Type: UPAMAT 40 H3 Year of Make: 2013 Operating hours: approx. 5,000 specifications: Cutting force: 480 kn at 315 bar Press force: 400 kn at 260 bar Filling opening 1,250 x 920 mm Channel format: 700 x 1,000 mm (H x W) Drive power: 15.0 kW Pump flow rate: 50 Ltr./min. Pump: Double Gear Pump Required oil quantity: 200 Ltr. Oil type: HLP ISO 68 Throughput: - 1.8 t at 20 - 30 kg/m³ bulk density - 3.0 t at 35 - 50 kg/m³ bulk density - 3.5 t at 60 kg/m³ bulk density Bale weight: up to approx. 320 kg Binding: 3-fold horizontal Wire push-through: seen in the direction of pressing on the left side Control: Siemens S7, IM-151 Dimensions: Width approx. 4,202 mm Length approx. 7,185 mm Height approx. 2,060 mm Machine weight: approx. 7,000 kg Noise emission: approx. 82 - 85 dB ...
automatic baler Manafacture: UNOTECH Type: UPAMAT 100 V 5 Year of construction: 2014 specifications: Cutting force: 1,000 / 315 KN / bar Specific pressing pressure: 12.12 kg/cm² Filling opening 2,000 x 1,020 mm Duct format: 750 x 1,100 mm (H x W) Bale weight: 500 - 800 kg (depending on material and bale length) Binding: 5-fold vertical Drive power: 1 x 75 kW Nominal current consumption: 175 A Connection fuse max. 200 A Pump: Internal gear pump Noise emission: 82 - 85 dB/A Machine weight: 32,000 kg Control: Siemens S7 - IM-151 Output: approx. 340 m²/hour under operating conditions Throughput: at 30 kg/m³ bulk density approx. 10.0 t/h at 50 kg/m³ bulk density approx. 16.0 t/h at 100 kg/m³ bulk density approx. 32.0 t/h Equipped with: Press box planked with HARDOX central lubrication point Large-digit display ...
automatic baler Manufacturer: UNOTECH Type: UPAMAT 100V 5 Year of construction: 2014 specifications: Cutting force: 1,000 / 315 KN / bar Specific pressing pressure: 12.12 kg/cm² Filling opening 2,000 x 1,020 mm Channel format: 750 x 1,100 mm (H x W) Bale weight: 500 - 800 kg (depending on material and bale length) Binding: 5-fold vertical Drive power: 1 x 75 kW Rated current consumption: 175 A Connection fuse max. 200 A Pump: Internal gear pump Noise emission: 82 - 85 dB/A Machine weight: 32.000 kg Control: Siemens S7 - IM-151 Capacity: approx. 340 m²/hour under operating conditions Throughput: at 30 kg/m³ bulk density approx. 10.0 t/h at 50 kg/m³ bulk density approx. 16.0 t/h at 100 kg/m³ bulk density approx. 32.0 t/h Equipped with: Press box planked with HARDOX central lubrication point Large digit displ ...
