Catalog No. : 5936 Type: W 200 HB Producer: ŠKODA Made in: 1986 Characteristic: Control system: HEIDENHAIN 530 Minimum rotary speed of the spindle: 0.8 1/min Maximum rotary speed of the spindle: 630 1/min X-Axis travels: 16200 mm Y-Axis travels: 5250 mm Z-Axis travels: 1600 mm Taper: ISO 60 Spindle diameter: 200 mm Machine height: 8000 mm Machine length: 20000 mm Machine width: 10000 mm Equipment: Chip convoyer 2008: renovation (new control. wiring and drives)
axis X x Y x Z x W: 3350x2510x1600x1600 mm 3 pcs plate 1500x4000x200 mm 1x table SKODA OB20281, diameter 1600x1600 mm, new in 1971 with tools, accessories and screw compressor weight of machine with table 47,5 ton refurbished 2010
Manufacturer/ Make: SKODA Typ/ Type: W200 Year of construction/ year: 1987 X-way: 11500 mm Y-way/ Y-way: 4500 mm Spindle diameter: 200 mm
For sale comes: 1 used clamping/boring table Manufacturer: Skoda Type: E20OB22875 YEAR: 1989 Dimensions 2,000 x 2,000 mm Part weight: up to 25t electr. adjustable Mass: 10t
Year of construction construction 1983 Drive power Drive power 83 kW Clamping table Clamping table 2500 x 2500 mm workpiece mass on table Workpiece mass 20 t Processing width on table 5770 mm Processing height on table 2800 mm processing depth 1985 mm Spindle diameter Spindle diameter 200 mm Slide cross-section Slide cross-section 530 x 550 mm Additional equipment Angle head large Angle head small
Inv. Num. : 5479 Type: PC W 200 HA Producer: ŠKODA Created: 1987 Parameters: Spindle drive power: 77 kW Minimum spindle speed: 0.8 1/min Maximum spindle speed: 630 1/min Mechanical feed length axis X: 4000 mm Maximum feed speed axis X: 4000 mm/min Maximum feed speed axis Y: 4000 mm/min Maximum feed speed axis Z: 4000 mm/min Cone: ISO 60 Spindle diameter: 200 mm Maximum turning-out depth: 2000 mm Spindle extension: 1600 mm Base size: 6400 x 5100 mm Ride of the stand on the bed: 5000 mm
6pcs of Skoda floor plates 6400x1885x400mm pirce 12000eur/pc 4pcs of Skoda floor plates 5600x1885x400mm price 10500eur/pc 2pcs of Skoda floor plates 3200x1885x400mm price 6000eur/pc
Two unused tables from paller horizontal borer Skoda W180NC 2240x2240cm of clamping surface and the weight of one table is 6500kg

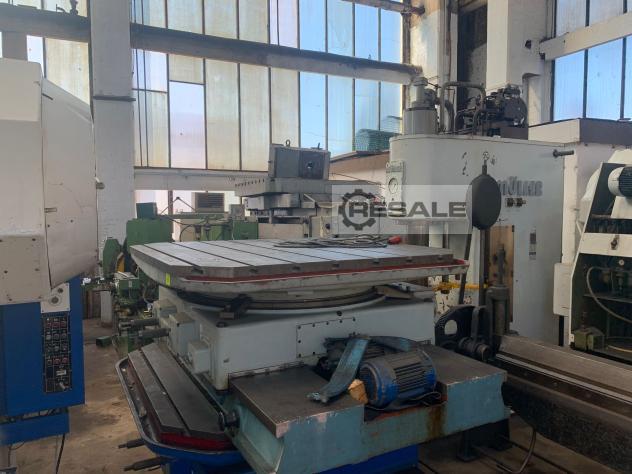

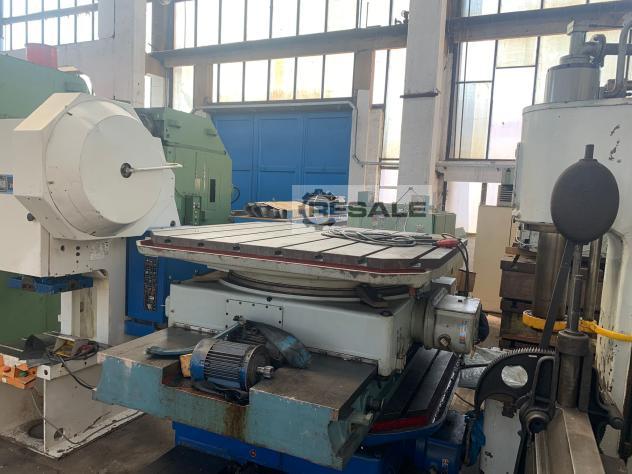

Rotary table E20 Table working surface 2000x2000mm Table height 910 mm The biggest load of the workpiece table 200000N Movement for sleigh bed 1200 mm Longitudinal feed 2,8-8-22.4 mm min-1 Circular shift on average of 2000 mm 5.8-16.4-48.1 mm min-1 Rapid longitudinal 1245 mm min-1 Rapid circular diameter of 2000 mm to 2600 mm min-1 4kW electric engine for the displacements Floor surface 3000x2765mm Table weight 9350 kg

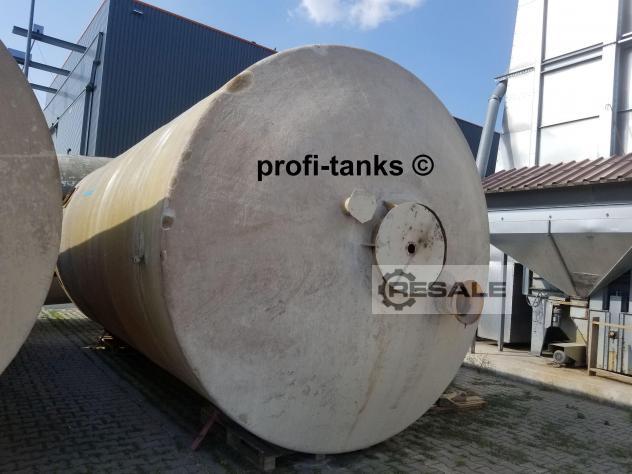

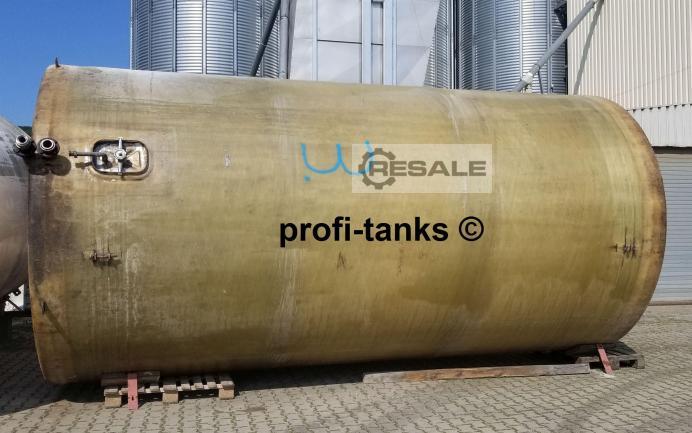

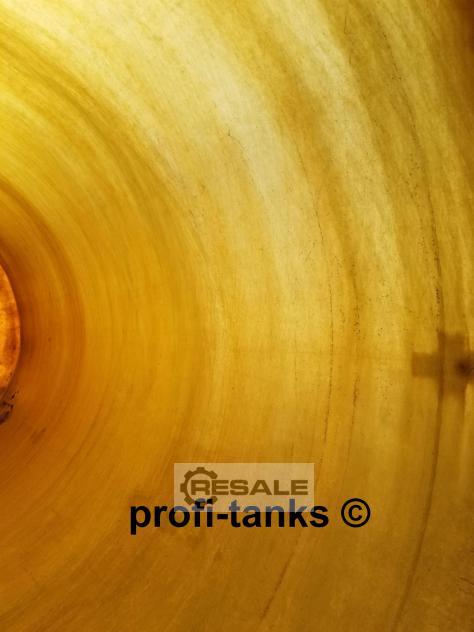

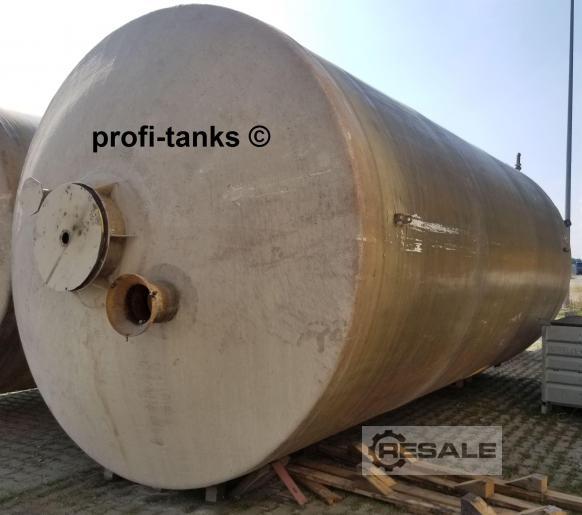

P187 - 3x used approx. 43 m³ / 43,000 litres polyester tank, GRP-tank, aboveground, vertically standing, flat floor, in good condition. technical details: capacity: approx. 43 m³ / 43,000 litres material: polyester tank / GRP tank manufacturer: Skoda dimensions: Ø approx. 3.00 m x height approx. 6.50 m Used tanks in good condition, by manufacturer Skoda. Upright standing storage tank with flat bottom, lid on the tank body, multiple connections, inlets and outlets. One tank is equipped with a propeller agitator on the side, functionality not yet tested by us. The container can be used as a storage tank for many different media such as water, liquid feed, fodder, whey, molasses, manure, seeping juice, rapeseed oil or as a rainwater collection tank etc. Price upon request. Transport can be arranged at low cost. It is not possible to update all our advertisem ...
Dear's Sale, used 2 complete engine Skoda 27.5 with R/G Also, cover, piston, liner, conrod new/used, fuel pump, 6cyl std cranksaft etc any parts. Brgds Hakan KUSCU +905323642509
4 pcs 5600 x 1885 x 400 mm price 10500eur/pc
2pcs 3500 x 2000 x 350 mm price 7000eur/pc
W 200G with Siemens AC main motor. modernized the main drive by instalation of Siemens AC motor with SIMODRIVE 611. Original built ISO 60 taper and 630 rpm Main data: X=8000 mm Y=4150 mm Z =1600 mm W=2000 mm Spindle dia 200mm ISO 60 spindle speed max 800 rpm Accessories: DRO Philips available as original rotary table E 20 4 floor plates 5600x1880x400mm milling head IFH 1 and IFW 3 counter steady SKODA IOT 4150

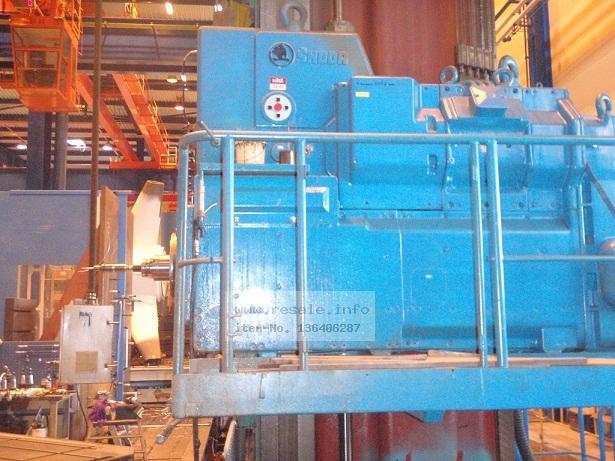

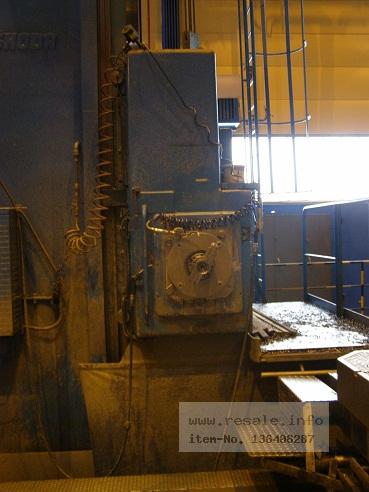

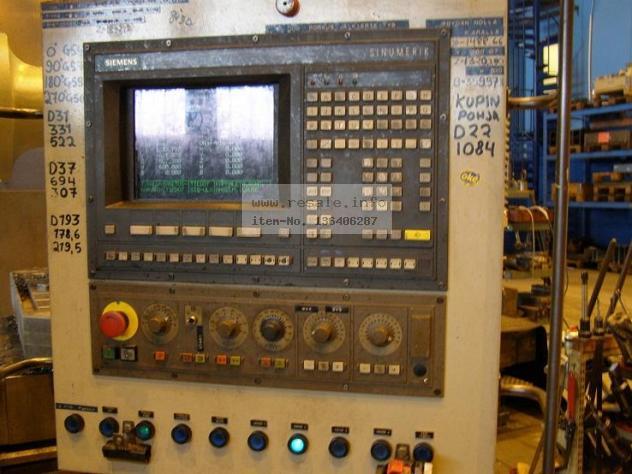

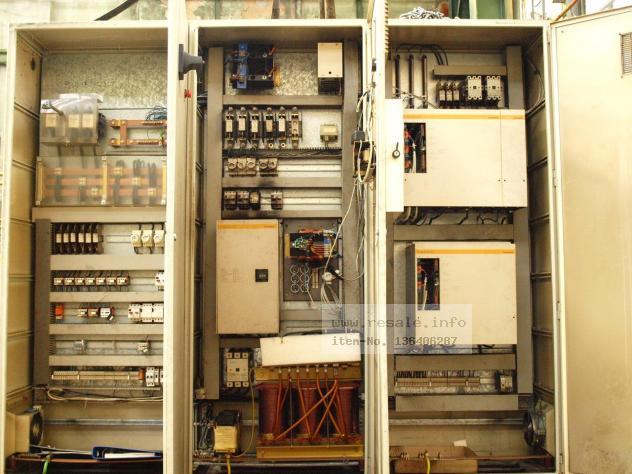

Skoda W 160 H/NR CNC Travel x= 14.500mm (bed is for the travel 18,500mm) Travel Y= 3.150mm Travel Z= 1.600mm Travel W= 1.250mm Spindle diameter 160mm Machine with ball screw Many accessories available: CNC control Siemens SINUMERIC 850 Rotary table ISO 16 2.200 x 2.200mm, capacity 16 ton included Chip conweyor : 19.000 mm + 12.000 mm Floor plates
Make SKODA type SUA 125 PA built 1992 place of storage from location country of origin Czech Republic delivery time immediately freight base from location Technical details: turning diameter over bed 1500 mm Turning diameter over support 1100 mm turning length 13000 mm Control SIEMENS 820 T plan disc speed range 0.9 - 315 r pmWork unit weight between tips max. 14000 kg Main drive DC 42 kW Total power requirement 65 kW Machine weight approx. t space requirement approx. m Additional information - CNC control SIEMENS 820 T - increased turning diameter 1500 mm - positioning of the flat disc via M-function or manually in typing mode with digital display - other accessories: + belt grinding device + 2 bezels max. 630mm and 4.8t load capacity + 2 roller blocks max. 950 mm and 7t load-bearing capacity - Hydrostatic main spindle bearing

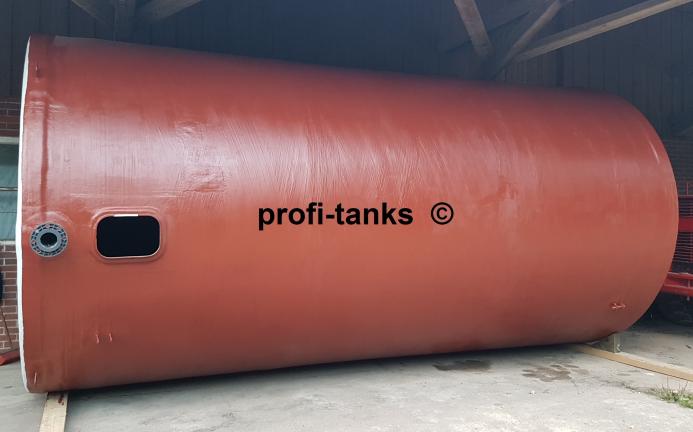

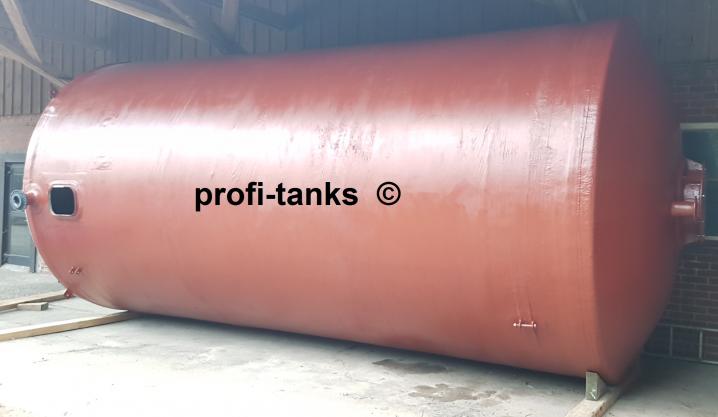

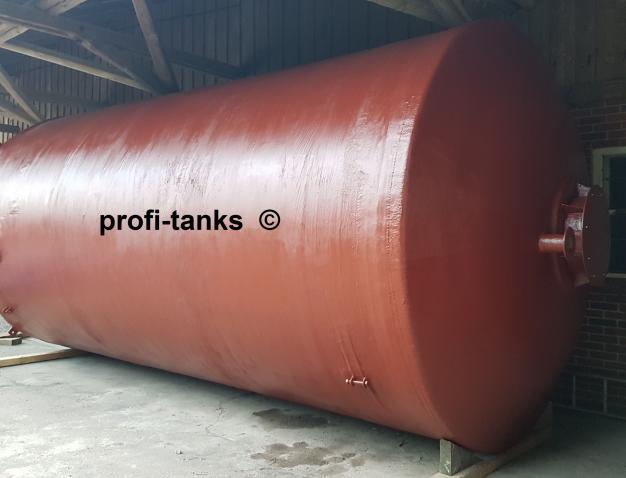

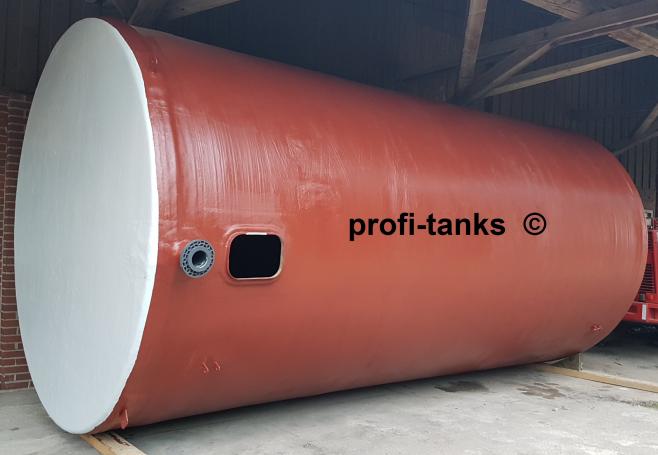

P64 - used appr. 46 m³ / 46,000 litres polyester tank / GRP tank, aboveground, vertical, flat bottom tank, Skoda tank. volume: appr. 46 m³ / 46,000 litres material: polyester / GRP diameter: Ø appr. 3.10 m height: appr. 6.50 m Skoda tank, aboveground, vertically standing tank, flat floor, dome upon the tank body, multiple connections, in- and outlets. Tank as shown on the pictures. The container can be used as a storage tank for many different media, such as water, liquid food, whey, potato steam skins, molasses, liquid manure, seeping juice, rapeseed oil, rainwater tank, etc. Price upon request. Transport can be arranged at low cost. Also we can modify the tank to suit your demands, just ask us. It is not possible to update all our advertisements daily. Since our inventory is changing continuously, it may be that this tank has already been sold but a similar on ...

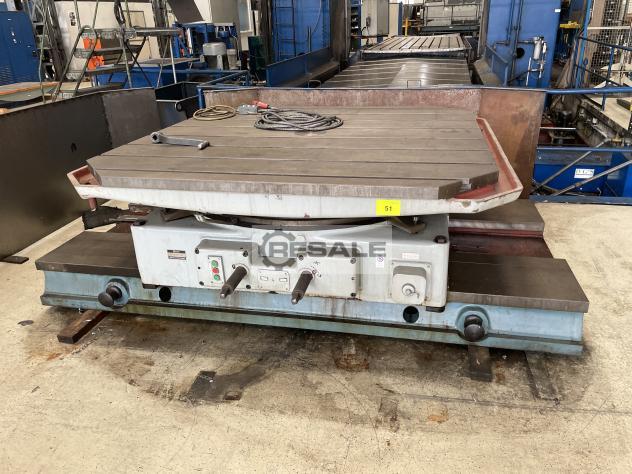

Table dimensions: 2000 x 2000 mm Table height: 890 mm Table displacement: 1,200 mm Maximum table load: 20 tons. Electrics: 400 V / 50 Hz

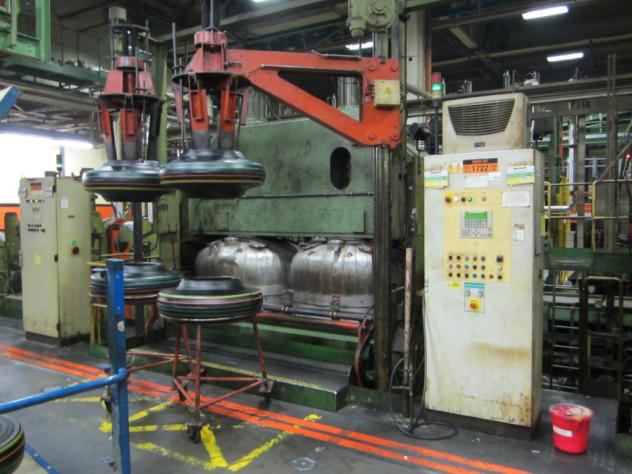

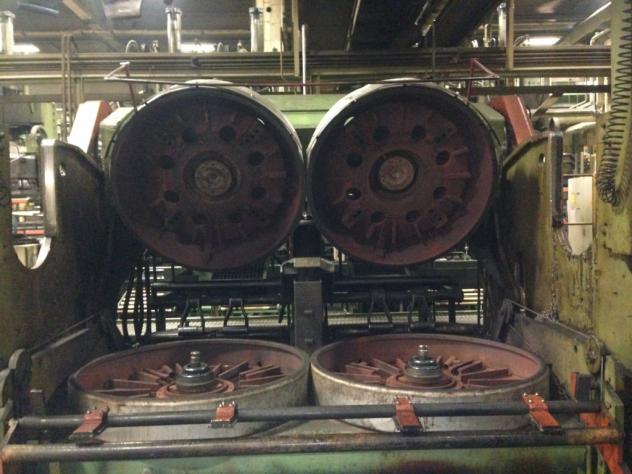

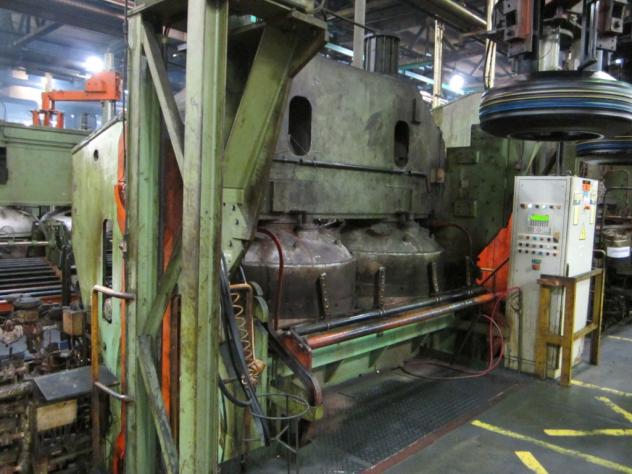

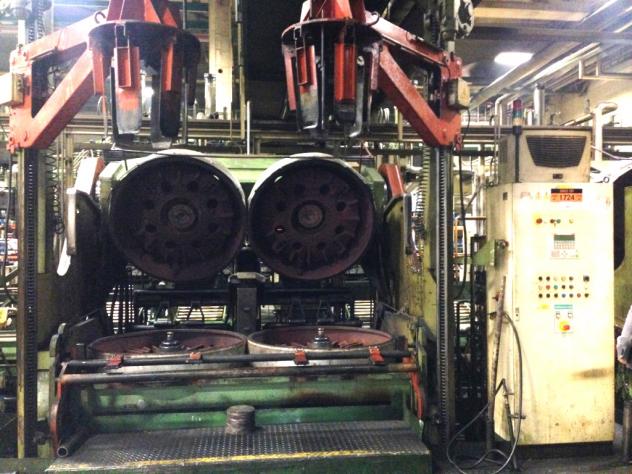

Press Type: Twin Cavities Mold Type: Segmented Type of Tires: Passenger and Light Trucks Bead Diameter Range: 16â â 20â Closing force: 650,000 Lbs / 3680 KN Heating System: Steam Bladder System: Hydraulic Water Max. Pressure: 20 Bar Power Supply: 18.5 KW, 380 V / 50 Hz Loader: Available Controls: Simatic S7
Dimensions (L/W/H): 2000 x 2000 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 11500 mm y-travel: 4500 mm spindle diameter: 200 mm w-axis: 1600 mm z-axis: 2000 mm Rotary table: 3000 x 4000 mm tool adaptor: 80 t bed length: 4600 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m incl. 15 plates The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
This SKODA SRM 125 CNC was manufactured in 1974. A robust horizontal turning machine, it represents a reliable option for precision machining and was retrofitted in 2010 . Contact us for more information.
Spindle diameter: 0 mm Longitudinal X: 15000 mm Vertical Y: 3150 mm Cross Z: 1600 mm Positions ATC: 0 Table length: 0 mm Table width: 0 mm Number of tables: 0 CNC Brand: Siemens CNC Model: 810 M Make Skoda CNC Type W 200 H - CNC Year 1981 / 1999 CNC Skoda Floorborer with Siemens 810 M Spindle diameter (mm) 200 Longitudinal X (mm)15.000 Cross Y (mm)3.150 Pos ATCW = 2.000 Number APC.Z = 1.600 CNC Siemens 810 M Ram Size = 520 x 520 Power = 77 kW Speeds Vario = 0.8 - 630 Rpm Feed Rate = 0.63 - 1.250 / 2.000 / 3.500 Optional: Floorplates = 13.000 x 5.560 mm 6 x 6.390 x 1.885 x 350 - T 36 Optional: Skoda Rotary Table Size = 4.000 x 3.550 mm X - Travel = 2.100 mm Max. load = ca. 80.000 Kg Incl. Chip Conveyer CNC Skoda Floorborer CNC Skoda Plattenbohrwerk
Turning diameter: 1000 mm Center distance: 5000 mm Spindle bore: 0 mm Numbers of bed guide ways: 0 Weight between centres maximum: 14000 kg Make Skoda SRM 1 Type SRM 100 x 5000 Year 1976 Heavy Duty Lathe Centre height (mm) Swing bed = 1.000 Center distance (mm) DBC = 5.000 Spindle bore Work load = 14 T incl. 4 chuck 1000 mm incl. steady rest 500 mm Power 40 kW / bed width 950
Turning diameter: 2500 mm Center distance: 10000 mm Spindle bore: 560 mm Numbers of bed guide ways: 0 Weight between centres maximum: 160000 kg CNC Brand: 0 CNC Model: CNC Control
turning diameter over bed: 3.150 mm turning diameter over slide rest: 2.650 mm turning length: 15.000 mm Control: CNC Siemens 840D workpiece weight: 160 t number of spindle speeds: 4 Bereiche – von 0,25 bis Pictures from location. Machine is now in warehouse in dismantled condition. See last picture. 8 steadies The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
clamping width: 2000 mm clamping length: 2000 mm workpiece weight: 25000 kg bed length: 3000 mm table height: 890 mm table width: 2766 mm x-travel: 1200 mm electrics - voltage/frequency: 380/50 V/Hz dimensions of the machine ca.: 3x2x1 m weight of the machine ca.: 9 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
