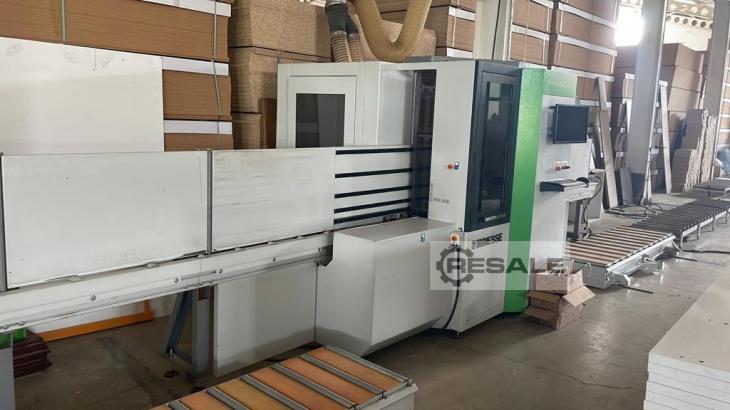

This 3-axis BIESSE BREMA EKO 2.1 drilling machine was manufactured in 2017. It features a tool changer with 8 positions, a milling unit of 5.5 kW, and a drilling unit with 23 tools. The working table includes a counter-pressure system and pliers with a thickness measuring system. Ideal for handling panel sizes up to 2600 mm in length and 900 mm in width, the BIESSE BREMA EKO 2.1 represents a robust addition to any workshop. Contact us for further details.
used
Key data: 2600 mm, 900 mm, 80 mm
SPECIFICATIONS: CNC Editor BSolid Basis Working range X mm: 200 - 2600 Working range Y mm: 35 - 900 Working range Z mm: 8 - 80 BH17 autonomous spindle unit Configuration: 10 autonomous vertical spindles with 32 mm spacing, with tool holder system, of which: - 5 arranged in X-direction - 5 arranged in Y-direction 3 independent horizontal spindles, arranged in the X and Y directions, equipped with the tool holding system, of which - 2 double outputs arranged in the X-direction - 1 double output arranged in Y-direction 1 sawing unit with saw blade diameter 120 mm, clockwise rotation, fixed working direction in X-direction Key features: Saw blade Ø 120 mm Max. cutting depth: 25 mm Cutting thickness: 4 mm Clockwise rotation of the tools - tool fastening by screws Vertical pneumatic unlocking The control unit is designed to accommodate the electrospindle. ...
used
Machine Size 2800 x 1940 x 2000mm Min. Size of machined panel 200 x 35 x 8mm Max. size of machined panel 3200 x 900 x 60mm
