Facing Lathes ALFING E II special

metal working machines / lathes / Facing Lathes

Manufacturer: ALFING

Model:E II special

Type of machine: Facing Lathes

item-No.: 160337542

Quantity: 0

Date: 30.11.2022

Year of manufacture: 1976

Location: Land-de Germany 33161 Hövelhof

Price:


Machine in stock:Yes

Seller-item-No.:WKG 308

Manufacturer: Alfing

Type: E II special machine

Machine No.: 10-02541

Year of construction: 1976

Weight of the plant: approx. 43t

General / technical data:

Connecting rod stitch size: 400mm- 1.100mm

Spindle thickness: depending on tools up to Ø350mm

Installation area (l x w x h): approx. 6000 x 10000 x 3000mm

Power Supply: 380V / 50Hz / 180kW

Remark:

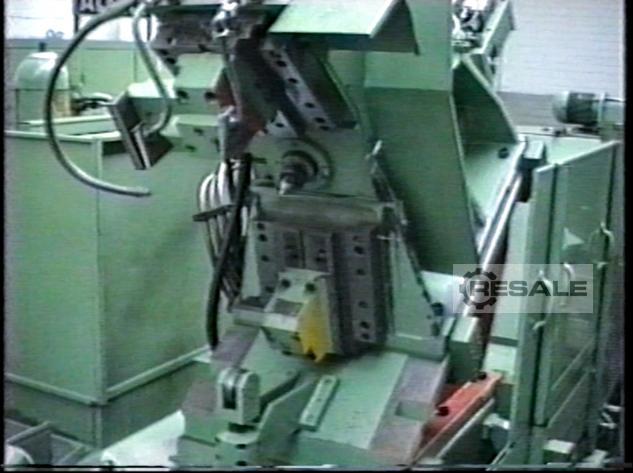

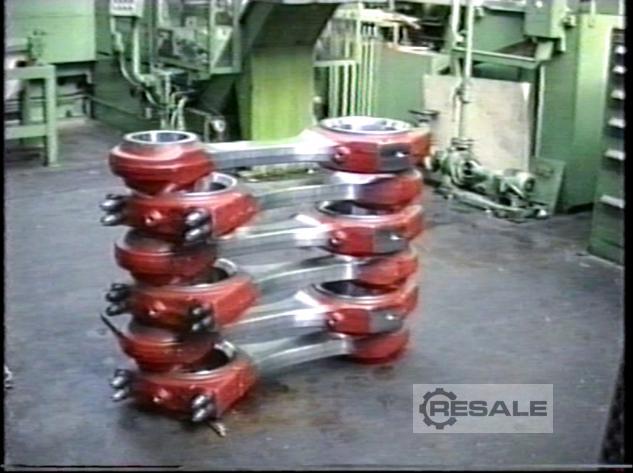

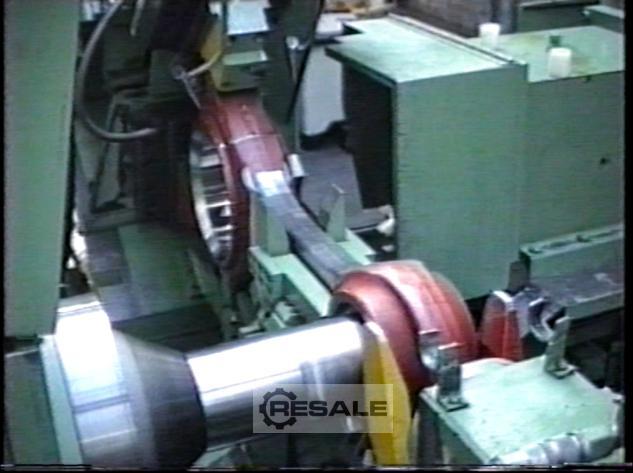

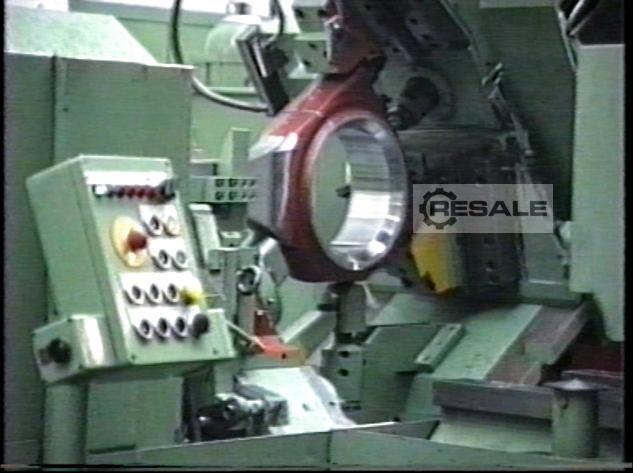

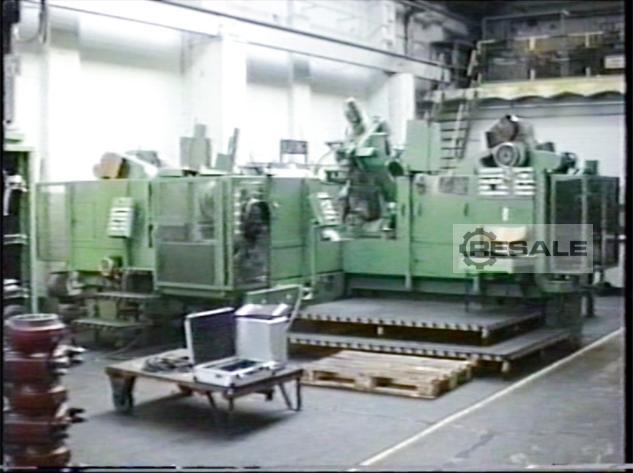

ALFING special machine for fine spindling of connecting rod bearing seats for large engines. The machine has a clamping device that can be moved on the middle bed. The processing is done on 2 sides. Station 01 D with laterally movable carriage unit for adjusting the stitch size. The machine has a splash guard for wet machining. On the machine connecting rods of the Type 540 and Type 528 were produced (Deutz engines up to 300 liters displacement and 4000hp)

Composed of:

– 1 machine bed

– 2 sled units 630 x 800

– 1 slide machine unit 630 x 630

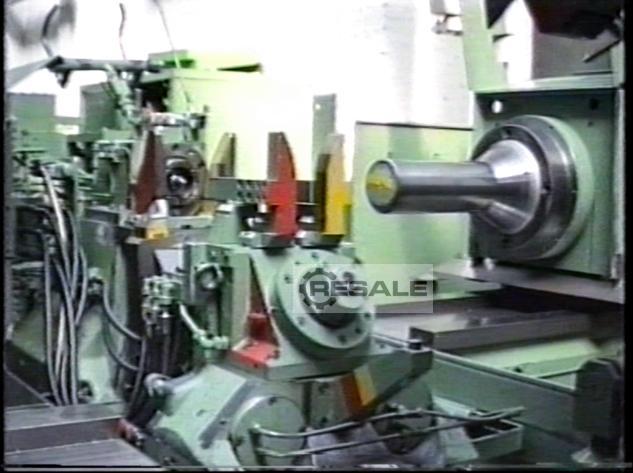

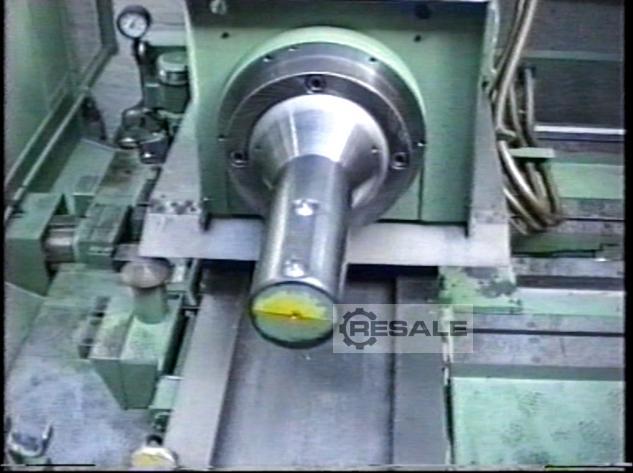

– 2 spindles WS 200 x 250 x 6 and WS 220 x 250 x 8

– 2 Planzug facilities

– Device for clamping BVM 540 and clamping BAM 528

Accessories:

– 6 control cabinets

– 1 hydraulic unit

– 1 central lubrication unit
