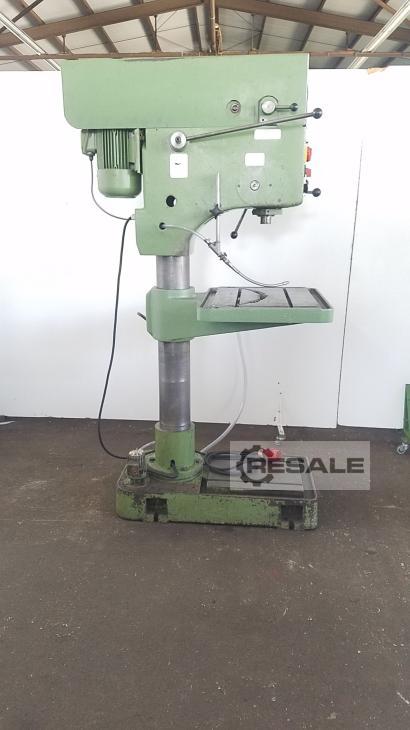

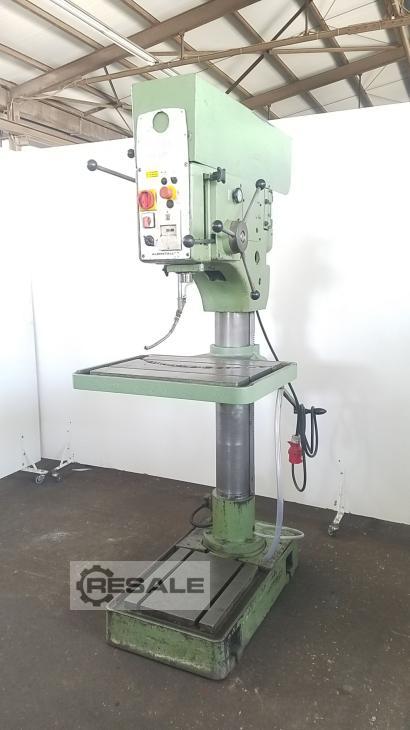

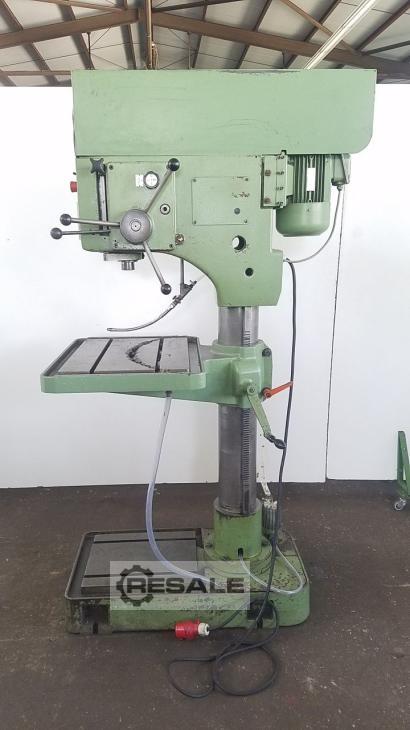

Column-Type Drilling Machines ALZMETALL AB 4 SV

Specifications:

- Drilling capacity in steel ST 60 40 mm
- Drilling capacity in steel ST 60 50 mm
- Drilling spindle holder MK 4
- Drilling spindle stroke 180 mm
- Drilling spindle speeds infinitely adjustable with countershaft

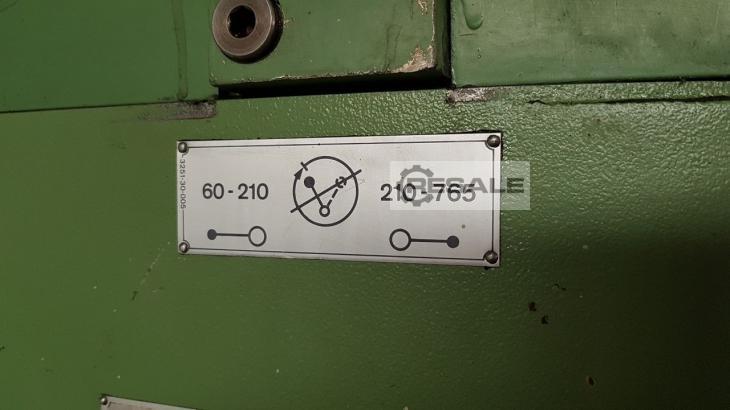

- Level 1: 60 - 210 rpm
- Level 2 210 - 765 rpm
- Projection 330 mm
- 3 feeds 0.1 - 0.2 - 0.3 rpm
- Table with 2 T-slots 720 x 360 mm
- Table height-adjustable via rack with hand crank
- Max. distance table – drilling spindle approx. 780 mm
- Max. distance between machined base plate and drilling spindle approx. 1250 mm
- Coolant device
-Lighting
- Drive 400 V / 4 kW
- Space requirement approx. W 720 x H 2050 x D 1150 mm
- Weight approx. 500 kg

seller offer No. resale Lg.Nr. 22614
