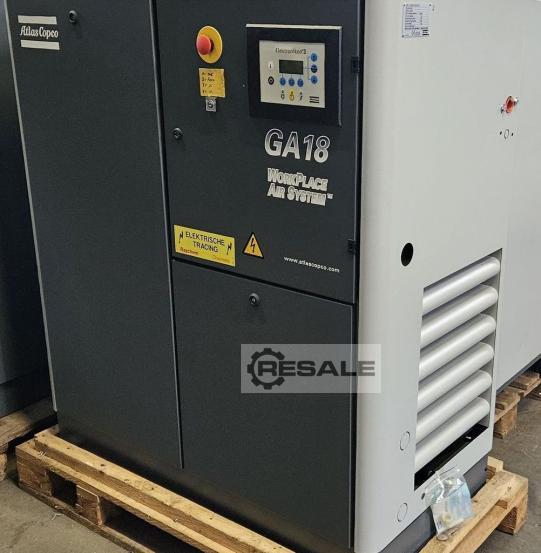

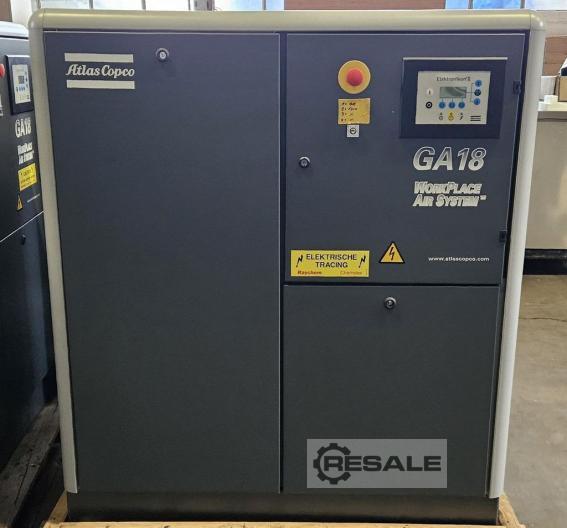

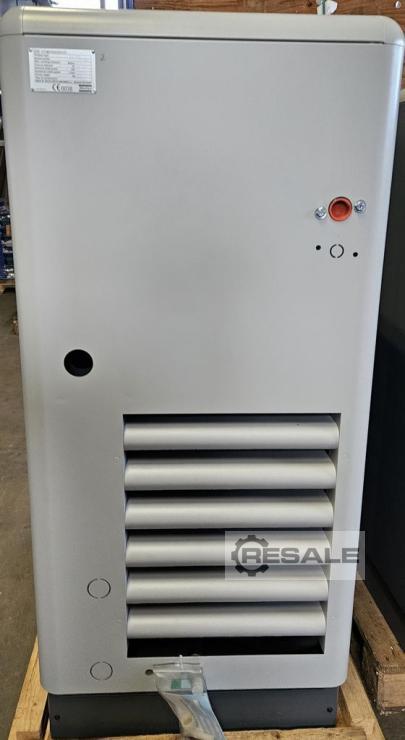

Screw compressor ATLAS COPCO GA 18

compressed air technology / compressors

add to watchlist

send inquiry

print view

item-No.: 162715078	Quantity: 0	Date: 10.04.2025
Year of manufacture: 2002	Location: 46325 Borken

Price:	5,450 EUR
Manufacturer:	Atlas Copco
Model:	GA 18
Type of machine:	Screw compressor

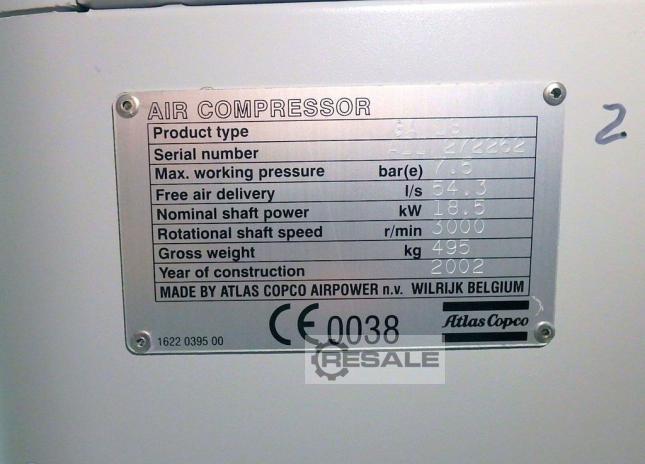

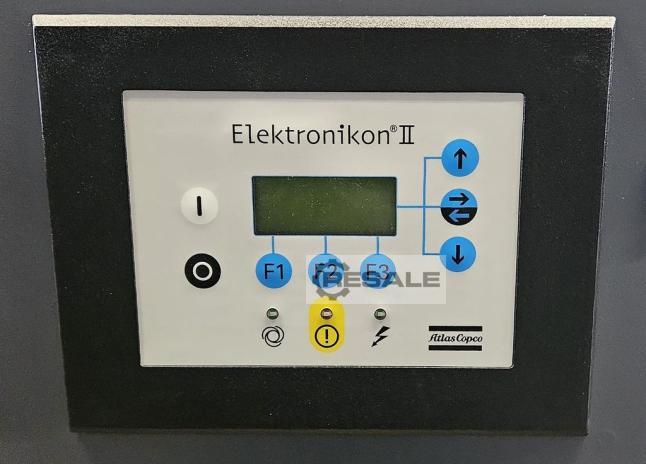

Description:	Screw compressor Atlas Copco GA 18 used machine SCREW COMPRESSOR GA 18 + 7.5P Serial Number: 272262 Operating hours: Only 1 hour of operation By integrating Atlas Copco's GA compressors directly into the production area, a reliable flow of compressed air directly to the job site is ensured. This makes it possible to dispense with a separate compressor room or an expensive and complex piping system. The GA compressors are designed to offer the highest efficiency and ensure constant and reliable production. Premium screw compressor Fully automatic, internally completely piped and wired compressor, single-stage oil-injected, compressing, air-cooled, soundproofed. Aftercooler with integrated water separator and electronic condensate drain for cool and relatively dry compressed air Compressor control system Elektronikon II Specifications Manufacturer: Atlas Copco Type: GA 18+ 7.5P Screw compressor Max. operating pressure: 7.5 bar Free Air Output: 54.3 I/s Volume flow: 3.51m³/min Rated power of shaft kW 18.5 Shaft speed: 3000 r/min Oil water separator: Öwamat Terms & Conditions Suction pressure: 1 bar Suction temperature: 20 °C Relative humidity: 0 % Usable volume flow at the outlet of the compact system according to ISO 1217-3, C at operating pressure 7.5 bar 58.5 Is: 3.51m³/min Motor rated power: 18 kw Rated engine speed: 2940 min Shaft Power Requirement of Motor at maximum operating overpressure: 21.1 kW Shaft power requirement at no-load: 4.9 kW Compressed air temperature after aftercooler: 25 degrees Cooling air volume: 1.15 m³ Oil capacity: 7.6 l Residual oil content: <2 mg/m² Sound pressure level, in the open field K427004 at a distance of 1 m according to ISO 2151: 66 dB(A) Limits Operating overpressure: 4 to 7.5 bar Cooling air temperature: 0 to 46 °C Data of the electric motor Flanged three-phase motor protection class IP 55 Insulation class F Make 1 LA 9 166 Voltage/Frequency: 400V/50 Efficiency: IE3 92.4 Hz Dimensions: (LxWxH) 1255 x 692 x 1475 mm Net weight: 466 kg Weight gross: 536 kg Pipe connections Compressed air connection: G1 Condensate manual: G1/8 Automatic condensate: 5.5 mm Year of construction 2002 Scope of supply: 1 x Atlas Copco GA 18 compressor More items - new and used - can be found in our shop! International shipping costs on request! seller offer No. resale 46281
Machine in stock:	Yes
Seller-item-No.:	46281
