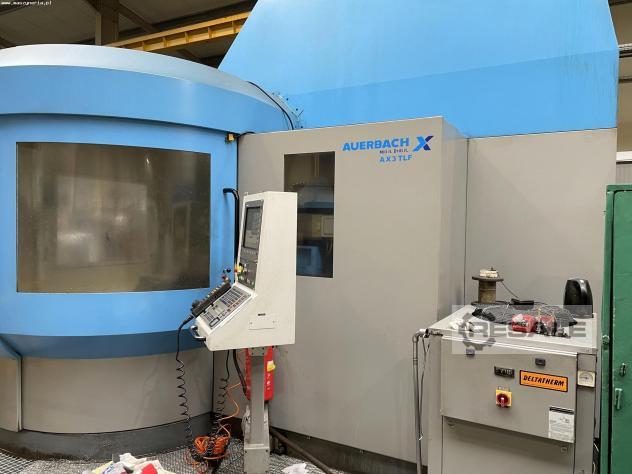

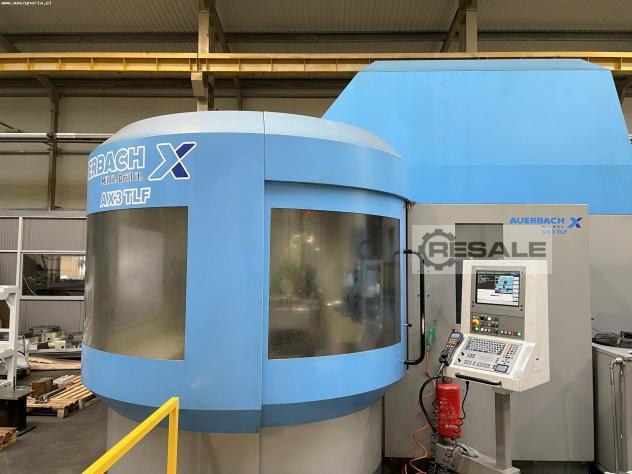

AUERBACH AX3 TLF deep hole drilling machine was manufactured by the
renowned German company Erste Maschinen Fabrik (ERMAFA
Sondermaschinen- und Anlagenbau GmbH) in 2011. Characterised by its
high reliability and performance, the AUERBACH AX-3 TLF machine used
in the drilling of deep holes with high precision and tolerances in
various types of metal, provides excellent optimisation of all aspects
of the process and a significant reduction in cycle times.
The machining process is fully automatic in 6 axes (X, Z, W, Y, B, A),
making it capable of obtaining holes with a maximum diameter of 32 mm
and a depth of up to 1700 mm. The AUERBACH AX 3 TLF deep hole
machining centre is equipped with, among others, a 1500 x 100 mm
interpolated rotary table and a user-friendly HEIDENHAIN iTNC 530 CNC
control for programming all parameters of the process. The total
weight of the drilling and milling machine is 15000 kg.
Technical specifications of the AUERBACH AX3 TLF deep hole drilling
machine
- maximum possible hole depth: 1700 mm
- drilling depth in one pass (without support): 1300 mm
- maximum hole diameter: 32 mm
- minimum hole diameter: 3 mm
- longitudinal travel (X axis) table: 1600 mm
- lateral travel (Z axis) column: 700 mm
- lateral travel (W axis) drilling head: 1300 mm
- vertical travel (Y axis) drilling head: 800-1200 mm
- rotary axis (B axis) rotary table: 360°
- rotary axis (A axis) drilling head: -25°/+15°
- feed rate: 1-15 m/min (Y axis: 1-10 m/min)
- rapid traverse speed in all axes: 15 m/min (Y axis: 10 m/min)
- maximum spindle speed: 8000 rpm
- minimum spindle speed: 60 rpm
- spindle torque (100% ED, S1): 115 Nm
- tool holder: HSK63
- tool clamp: OTT tool holder
- motor power: 30 kW
- nominal main drive power (100% ED, S1/40% ED, S6): 12/18.5 kW
- coolant tank capacity: 800 l
- maximum coolant pressure: 100 bar
- ambient temperature range: +5°C / +40°C
- power supply: 3x 400 V; 50 Hz
- space requirement (L x W x H): 5500 x 5300 x 3400 mm
- AX3 TLF machine weight: 15000 kg
Equipment of the deep hole drilling machine
- CNC control: HEIDENHAIN iTNC 530
- interpolated rotary table with limited clearance with dimensions
1500 x 100 mm
- swivelling drilling head +15°/-25°
- shaft drilling head
- HR520 handwheel
- fixed supports (2 pcs)
- adjustable coolant nozzles
- oil cooling
- electrical cabinet cooling device
- closed top cover (roof)
