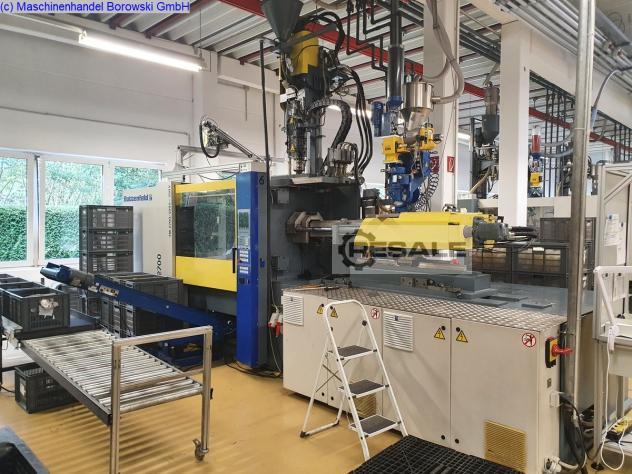

Multi component injection moulding machines BATTENFELD TM 2100-750+350V

warehouse no.: 502923
manufacturer: BATTENFELD
type: TM 2100-750+350V
controller: UNILOG B4
year of construction: 2003

clamping force: 2100 kN
distance between tie-bars h x v: 570 x 570 mm
size of mould plates h x v: 840 x 840 mm
min. mould height: 350 mm
max. mould height: 700 mm
max. open daylight: 1230 mm
opening stroke: 530 mm

horizontal injection unit:
screw diameter: 45 mm
swept volume: 358 ccm
injection pressure: 2116 bar

2nd vertical injection unit:
screw diameter: 35 mm
swept volume: 169ccm
injection pressure: 2083 bar

equipment included:
8x control for hotrunner
screen text german
CEE-socket 16A
core pulling hydraulically 1x
core pulling hydraulically 3x
air valve 1x
machine incl. water flow regulator
machine without material hopper
needle shut-off-nozzle
Anti vibration mounts
electric interface for handling units according to Euromap 12
interface EUROMAP 13
Schuko-socket 10A
Injection moulding machine for two components

measures of machine l x w x h: 5.7m x 1.5m x 3.97m
total weight: 13900KG
seller offer No. resale 502923
