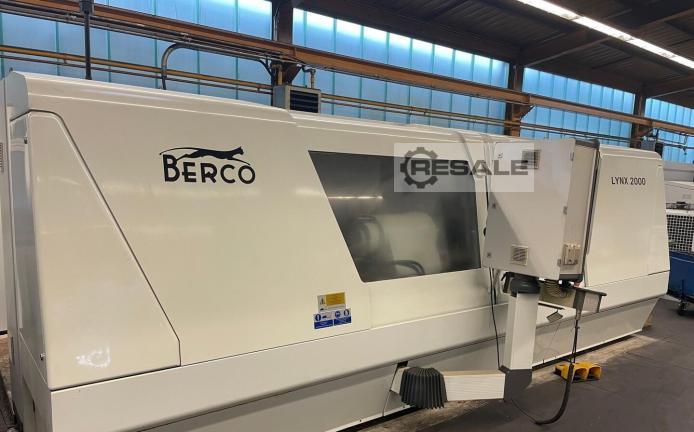

1 pc. used crankshafts & camshafts - cylindrical grinding machine
Make BERCO
Model LYNX 2000
Year of construction 2013
Specifications
Max. grinding diameter for recirculating grinding 220 mm
Max. grinding diameter for cylindrical grinding 300 mm
Max. workpiece weight between the tips 150 kg
Center height above table 270 mm
Center width 1700 mm
Max. sanding length 1300 mm
Diameter of the chucks 180 mm
Tailstock quill path 50 mm
Max. grinding wheel diameter 660 mm
Min./Max. Grinding Wheel Width 20/80 mm
Max. circumferential speed 35/80 m/sec.
Grinding spindle head (X-axis)
Final drive with linear motor - travel 490 mm
Measuring device optical scale resolution 0.0001 mm
Workpiece head (C-axis)
Workpiece spindle speed range 1 - 1000 rpm.
Encoder Measurement Range - Resolution 0.0001 degrees
Table (Z-axis)
Final drive with linear motor
Measuring device optical scale - resolution 0.0001 mm
Machine dimensions L x W x H 5500 x 2600 x 2000 mm
Space requirement approx. 7,500 x 5,000 mm
Machine weight 9850 kg

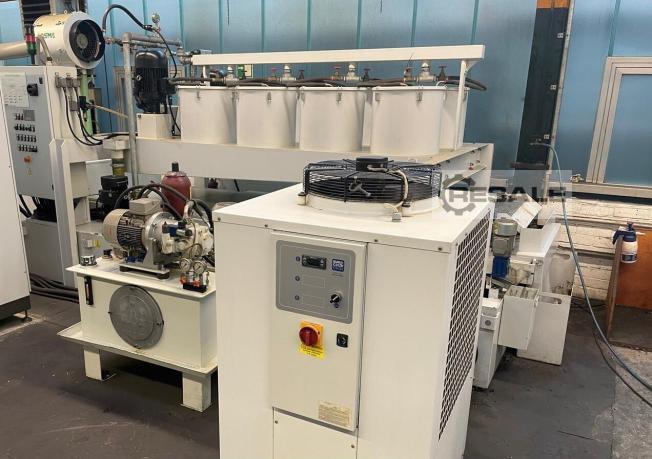

Accessories:
CNC control Siemens 840 D
Germany
