Horizontal Turning Centres BIGLIA B436 Y2

metal working machines / lathes / Horizontal Turning Centres


request photos
add to watchlist
send inquiry
print view
item-No.: 162731054 Quantity: 0 Date: 24.10.2024
Year of manufacture: 2016 Location: 23801 Calolziocorte
Price: request quote
Manufacturer: Biglia
Model: B436 Y2
Type of machine: Horizontal Turning Centres
Description: Horizontal Turning Centres Biglia B436 Y2

used machine

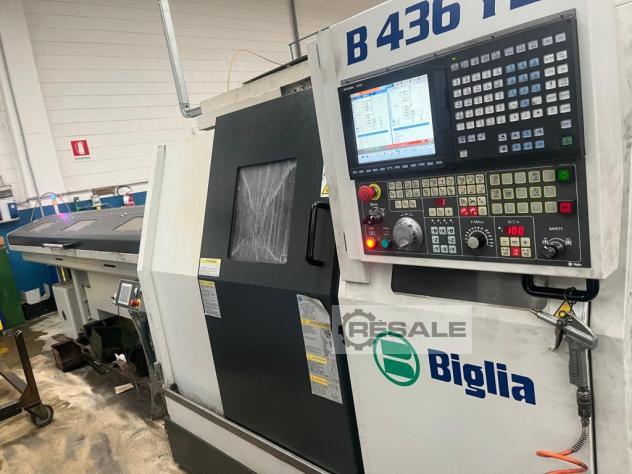

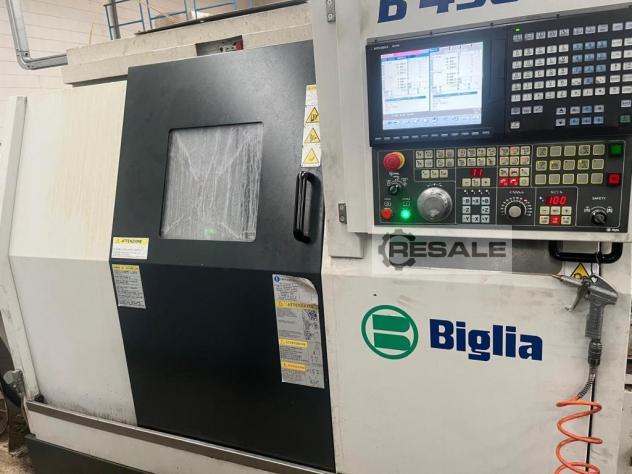

Bar lathe Biglia B436 Y2

:::TECHNICAL SPECIFICATIONS:::

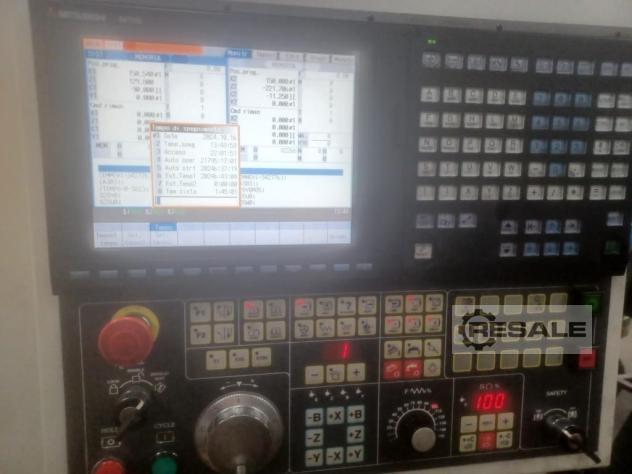

CNC Model: Mitsubishi

CNC Version: M700

Main spindle nose: ASA 5

Main spindle power: 11Kw

Main spindle bar passage: 36mm

Turning diameter: 100mm

Turning length: 100mm

Main spindle speed: 7000

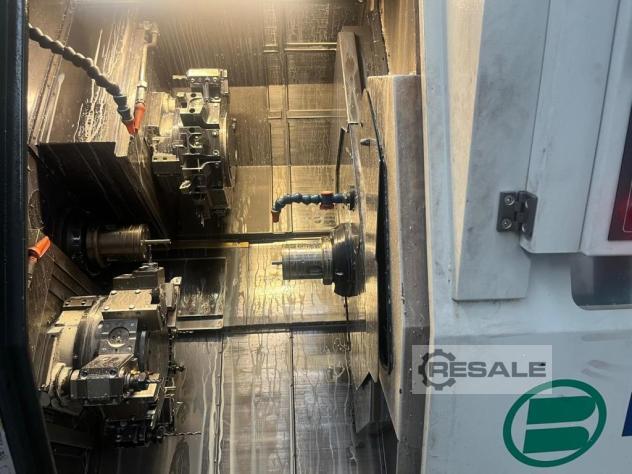

Number of tool turrets: 2

Number of tool positions for the first turret: 12

Number of Motorized First Turret: 12

First turret X-axis travel: 85mm

Y-axis travel first turret: +25 -25mm

Z-axis travel first turret: 300mm

Number of second turret tool positions: 12

Number of motorized second turret: 12

Second turret X-axis travel: 85mm

Second turret Y-axis travel: +25 -25mm

Second turret Z-axis travel: 300mm

Fast feed rates linear axes X Y Z: 15 15 30m/min

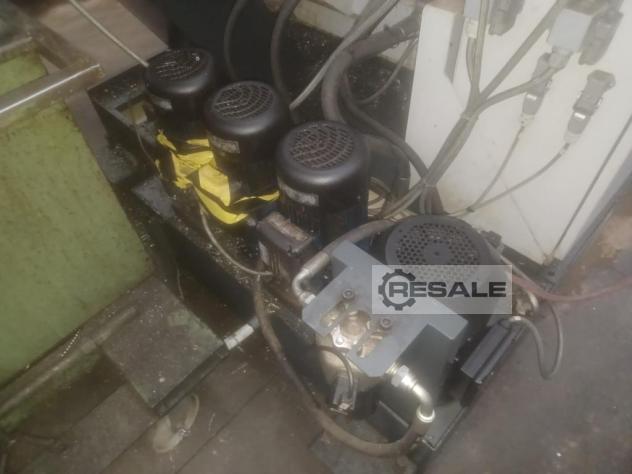

High refrigerant pressure: yes

Sub-spindle: yes

Number of counter-spindle speeds: I434012 7000

Counter spindle power: 11Kw

Bar Passage: 36mm

Z stroke sub-spindle : 340mm

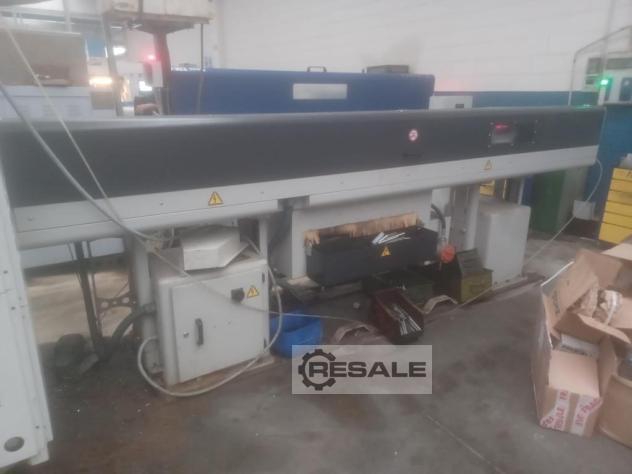

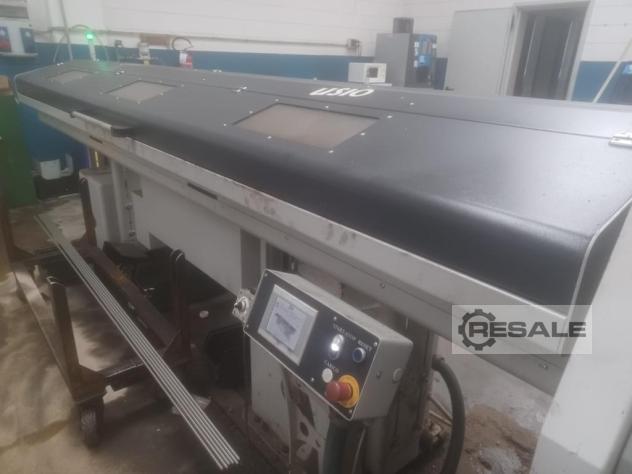

Bar loader model and brand: Top Fusion

Chip conveyor: belt

Presetting: yes

Machine equipment: Set of fixed and motorized tool holders

:::D DIMENSIONS AND WEIGHT:::

Length: 3687mm

Width: 1515mm

Height: 1992mm

Weight: 4700Kg


seller offer No. resale 823193
Seller-item-No.: 823193
