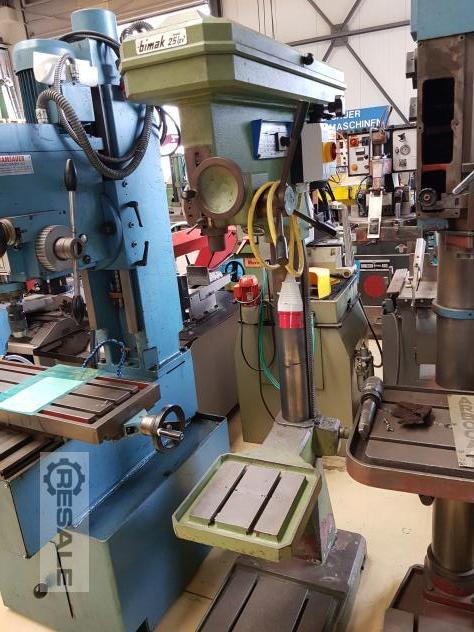

Column-Type Drilling Machines BIMAK 25 lpv

metal working machines / boring mills and machining centers / Column-Type Drilling Machines

Manufacturer: BIMAK

Model:25 lpv

Type of machine: Column-Type Drilling Machines

item-No.: 159764276

Quantity: 0

Date: 06.09.2022

Year of manufacture:

Location: Land-ch Switzerland

Price:


Machine in stock:Yes

Seller-item-No.:130

Specifications
Model: 25 lpv
Tool holder: MK3
Pinole stroke: 110mm
Projection: 400mm

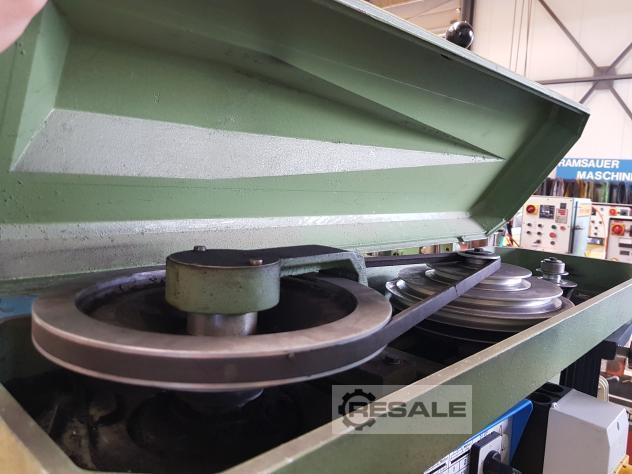

Drive: 3 phase motor with 2 motor stages and V-belt drive
Speeds 14 / 35 – 65 – 70 – 125 – 130 – 200 – 250 – 335 – 400 – 570 - 670 – 1140 – 990 – 1980 rpm

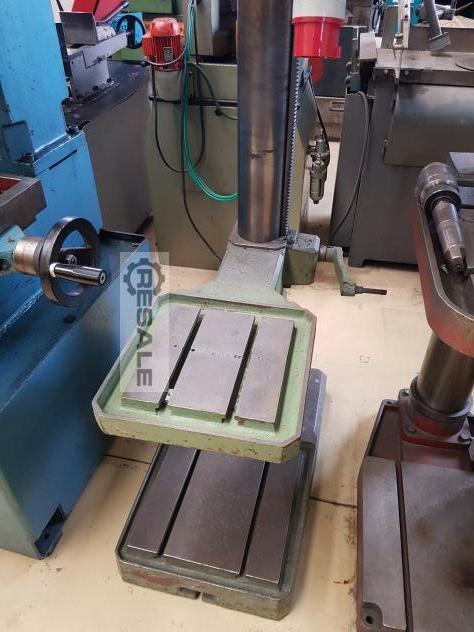

Table dimensions: LxW 330x330mm
Machine dimensions: LxWxH 410x700x1830mm

On the machine, we installed a new motor and renewed the entire electrical system with the step and motor circuit breaker as well as the cables.

Inquiry

Machinery dealer?

Please remit optionally

Send wanted inquiry?

Copy to you?

Save input data

Specifications
Model: 25 lpv
Tool holder: MK3
Pinole stroke: 110mm
Projection: 400mm
Drive: 3 phase motor with 2 motor stages and V-belt drive
Speeds 14 / 35 – 65 – 70 – 125 – 130 – 200 – 250 – 335 – 400 – 570 - 670 – 1140 – 990 – 1980 rpm
Table dimensions: LxW 330x330mm
Machine dimensions: LxWxH 410x700x1830mm

On the machine, we installed a new motor and renewed the entire electrical system with the step and motor circuit breaker as well as the cables.

seller offer No. resale 130
