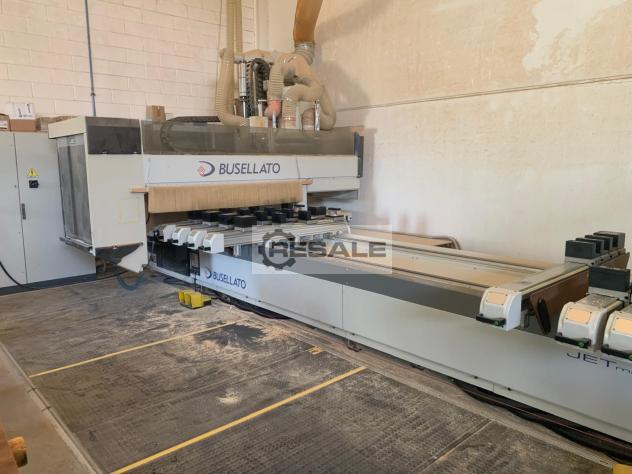

BUSELLATO machining center model JET MASTER 5WF XL with 5 axes:
- useful axis stroke 5500 x 1900 mm
- Useful working range 4650 x 1555 mm
- workpiece passage 240 mm (data to be verified)
- automatic tables with CNC positioning

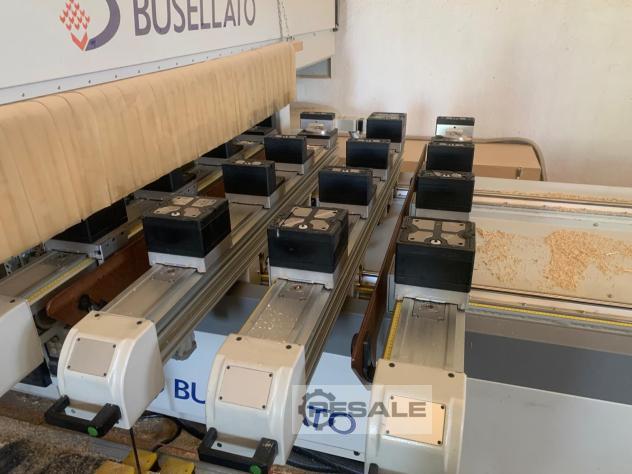

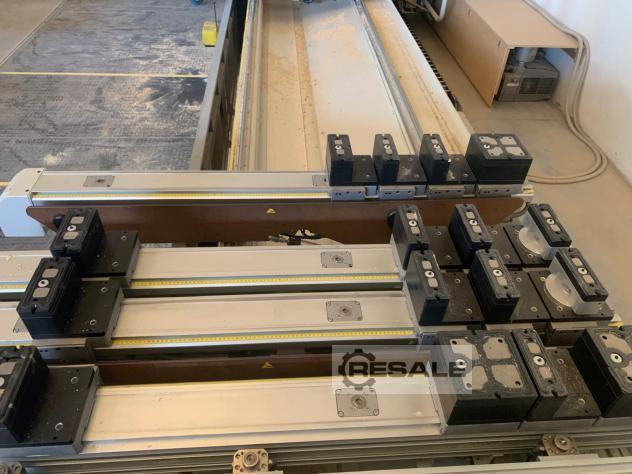

- 8 bars each with 4 suction cups, and 2 vacuum pumps
- with 4 lifts - devices for load assistance
- with front safety mats and integrated scrap unloading belt

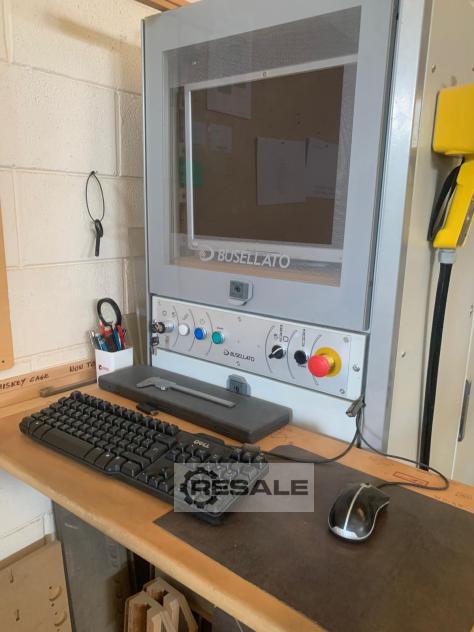

- GENESIS EVOLUTION electronic control with PC/PLC, based on
Windows operating system and with 3D editor (CAD – DXF – XLS
files)
- total installed power KW 25, volt 380
- machine according to CE standards, year 2007
Operating units:

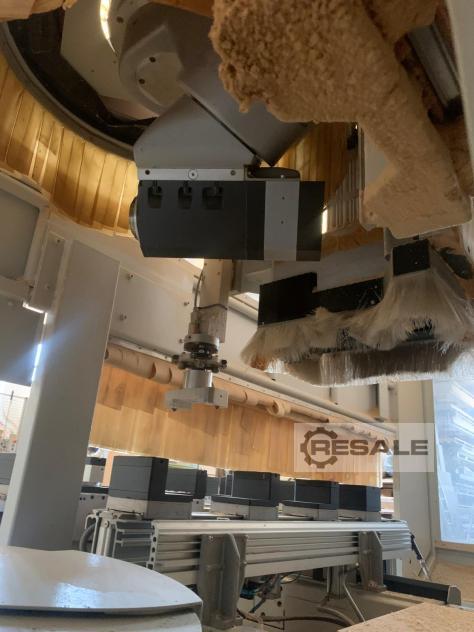

- 5-axis milling unit, with:
electrospindle with power KW 14, HSK63F connection
24-position rear tool magazine
2-position side magazine, for blade unit and for
Large tool

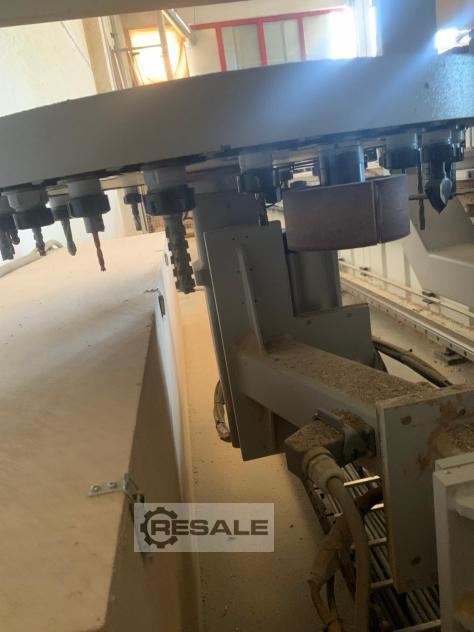

- TFR18 drilling unit, power KW 1.7, with:
7 X vertical mandines
5 vertical Y-shaped handles
2+2 horizontal spindles in X
1+1 horizontal spindles in Y

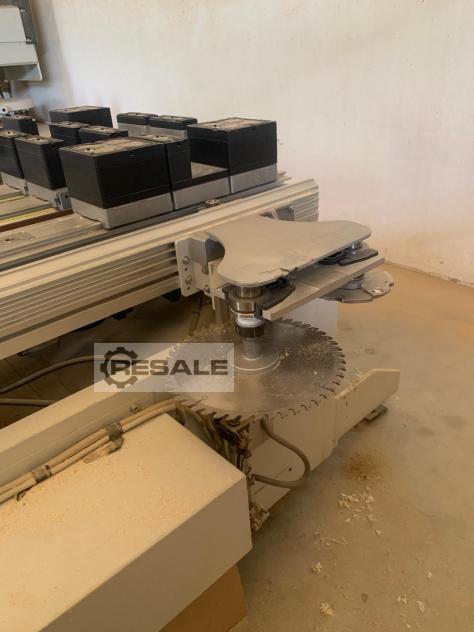

integrated blade unit D=120mm for grooves
Availability from February 2025
Italy
