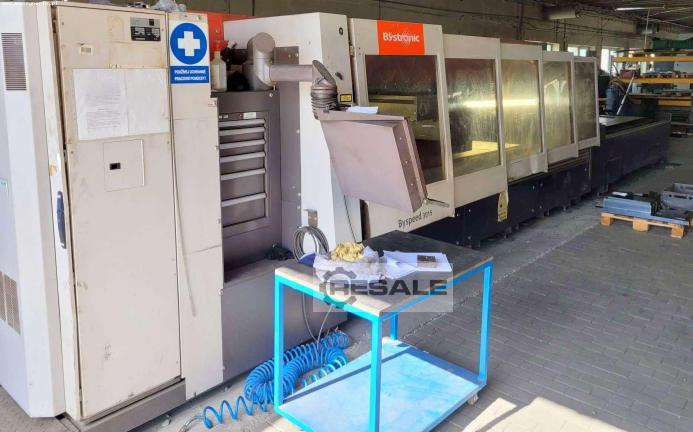

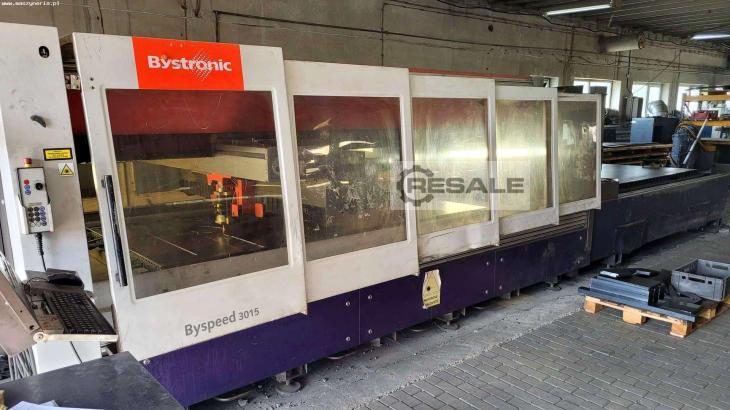

BYSTRONIC Byspeed 3015 laser cutting machine was built in Switzerland
in 2004. The machine equipped with an extremely reliable BYSTRONIC
Bylaser 4400 laser source with a power of 4.4 kW, performs the cutting
and engraving process on workpieces with a maximum thickness of 25 mm
(structural steel), 20 mm (stainless steel), 12 mm (aluminium) and 3
mm (brass, copper, titanium).

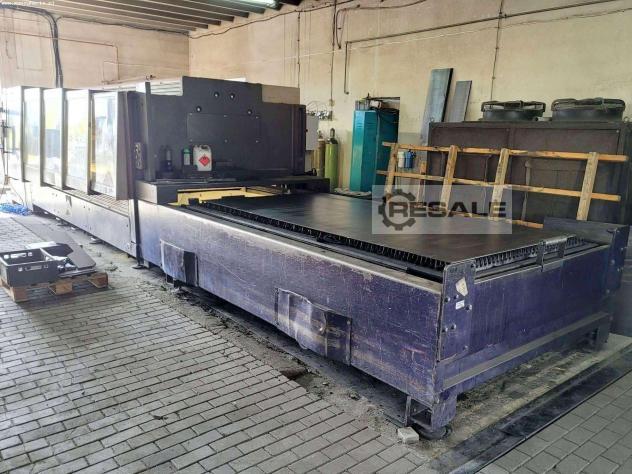

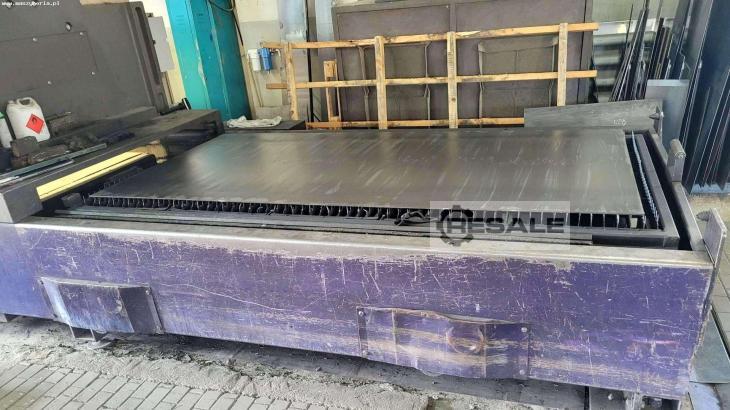

Workpiece machining is performed on a large work table with a length
of 3000 and a width of 1500 mm, allowing free access to the laser’s
work area and for loading larger-size sheets weighing up to 890 kg.
The control panel with BYSTRONIC ByVision CNC controller for
programming the machining parameters has been placed on the arm to
increase the machine operator’s comfort.
Characteristics of the BYSTRONIC Byspeed 3015 laser cutting machine
- maximum laser power: 4.4 kW
- wavelength: 10.6 μm
- laser beam diameter: 20 mm
- work table surface (L x W): 3000 x 1500 mm
- cutting area in the X/Y/Z axis: 3048/1524/100 mm
- speed of simultaneous positioning of the X/Y axis: 30 m/s2
- maximum radial acceleration: 10 m/s2
- maximum sheet thickness (structural steel): 25 mm
- maximum sheet thickness (stainless steel): 20 mm
- maximum sheet thickness (aluminium): 12 mm
- maximum sheet thickness (brass): 3 mm
- maximum sheet thickness (copper): 3 mm
- maximum sheet thickness (titanium): 3 mm
- maximum workpiece weight: 890 kg
- maximum cutting speed: 50 m/min
- laser type: CO2
- positioning deviation: ±0.1 mm
- positioning spread: ±0.05 mm
- cutting time: 55545 h
- Byspeed 3015 machine switch-on time: 90848 h
- total power requirement: 65 kW
- power supply: 3×400 V; 50 Hz
Equipment of the laser cutting machine
- CNC controller: BYSTRONIC ByVision

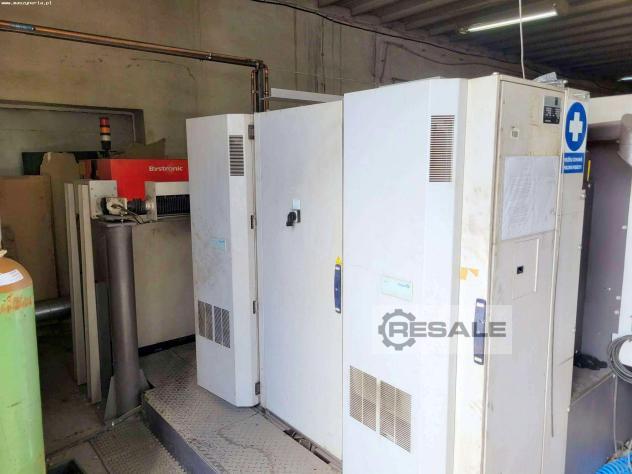

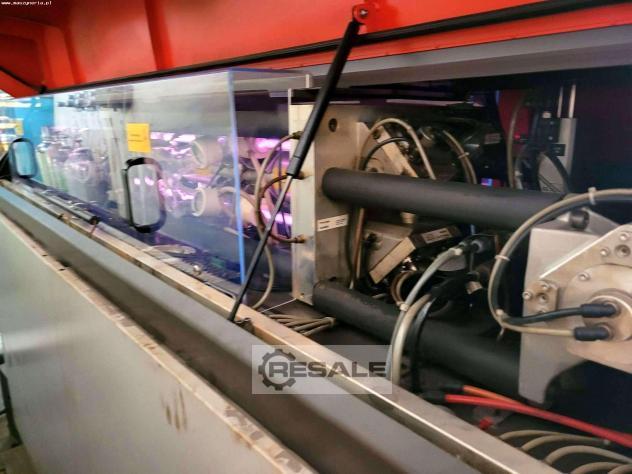

- laser source: BYSTRONIC Bylaser 4400

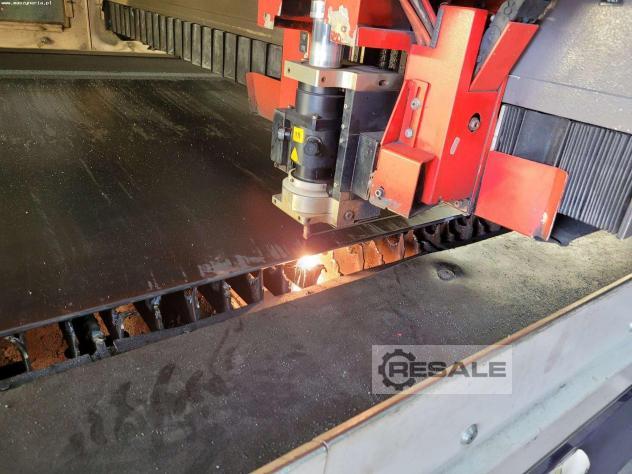

- two cutting heads
