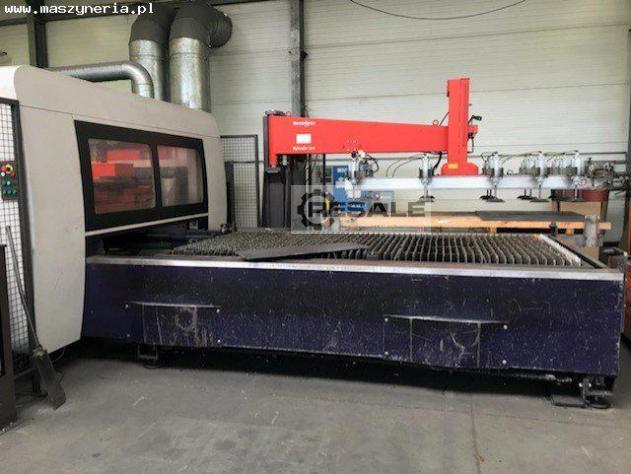

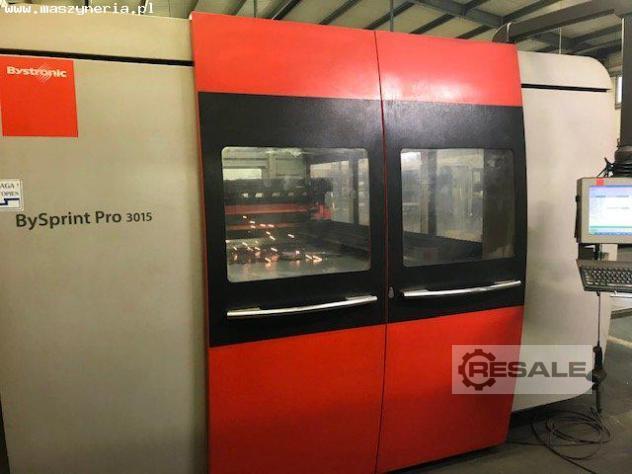

BYSTRONIC BySprint Pro 3015 laser cutting machine built in 2011 in
Switzerland, is designed for precision cutting and industrial
engraving of metal sheets with maximum dimensions (length x width) of
3000 mm x 1500 mm. Workpieces made of mild steel, stainless steel and
aluminium are processed with the highest precision using a 4.4 kW

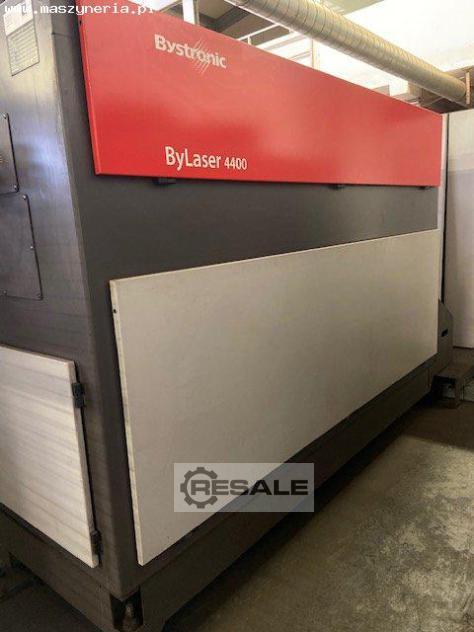

laser beam generated by a reliable BYSTRONIC ByLaser 4400 laser
source.
The laser is equipped, among others, with the BYSTRONIC ByVision CNC
control with a touch screen for programming processing parameters, and

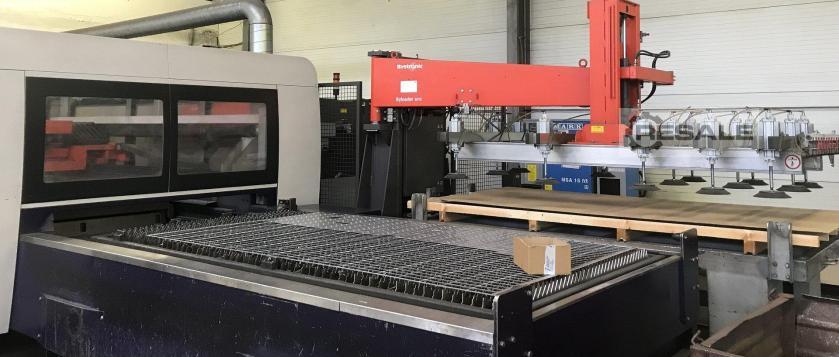

the BYSTRONIC Byloader 3015 system, allowing for fast and safe loading

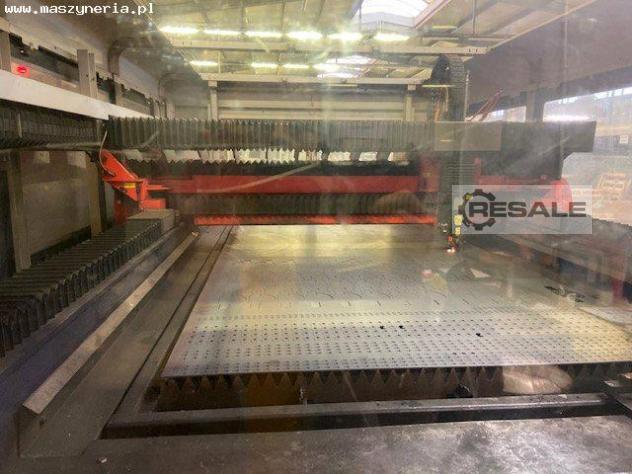

and unloading of metal sheets on the work table. This combination
simplifies the cutting process and maximises user convenience. The
total weight of the machine is 12000 kg.
Technical specifications of the BYSTRONIC BySprint Pro 3015 laser
- laser power: 4.4 kW
- maximum sheet size (L x W): 3000 x 1500 mm
- maximum workpiece thickness (mild steel): 20 mm
- maximum workpiece thickness (stainless steel): 12 mm
- maximum workpiece thickness (aluminium): 8 mm
- maximum sheet weight: 750 kg
- feed rates in the X/Y/Z axis: 3048/1524/70 mm
- parallel positioning speed of the X/Y axis: 100 m/min
- simultaneous positioning speed of the X/Y axis: 140 m/min
- maximum axis acceleration: 12 m/s2
- laser type: CO2
- wavelength: 10.6 μm
- positioning accuracy: ± 0.1 mm
- repeatability: ± 0.05 mm
- edge detection accuracy: ± 0.5 mm
- power requirement: 40 kW
- overall dimensions (L x W x H): 10400 x 6500 x 2450 mm
- laser source weight: 1700 kg
- BySprint Pro 3015 machine weight: 12000 kg
Equipment of the laser cutting machine
- CNC control: BYSTRONIC ByVision
- sheet loading/unloading system: BYSTRONIC Byloader 3015
- laser source: BYSTRONIC ByLaser 4400
- cutting head 5″
- cutting head 7.5″
Poland
