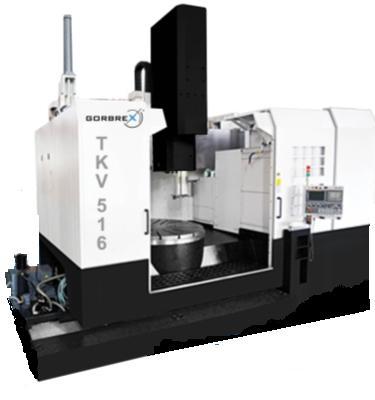

Manufacturer: GORBREX
Model: TKV 516
New in: 2015
CNC control: CNC SIEMENS SINUMERIK 828
Location: our workshop, Rudniki - Poland
Machine fully modernized and modified of SEDIN 1516. Machine with new
electrical unit, new lubrication unit, painted, slideways regrinded,
replacement of worn mechanical parts. Machine will be equipped with
new CNC control SIEMENS SINUMERIK 828.
Delivery time: 3-4 months
Tool Changer and Warranty
Technical details
Numbr of columns: 1
Number of carriages: 1
Type of carriage: Rotary head in 5 position or Ram
Axis controlled: X/Z
Turning diameter: 1 600 mm
Faceplate diameter: 1 400 mm
Max workpiece height: 1 000 mm( with possibility of extension to 1400
mm)
Max table load: 5 000 kg
Range of table speeds: 5-200 rpm
Number of speeds range stepless: 3
Vertical travel of Z axis:
Rotary head: 700 mm
Ram: 1000 mm
Horizontal carriage travel in X axis: 950 mm
Working feeds range: 2-2000 mm/min
Rapid feeds: 10 m/min
Knife cross-section: 25 x 40 mm
Vertical travel of crossbeam: 640 mm
Crossbeam speeds: 360 mm/min
Main motor power : 30 kW
Installed power: 37 kW
Positioning accuracy: 0,01/1000 mm
Dimensions:
3200 x 3400 x 3800 mm
Machine weight:
19 200 kg
