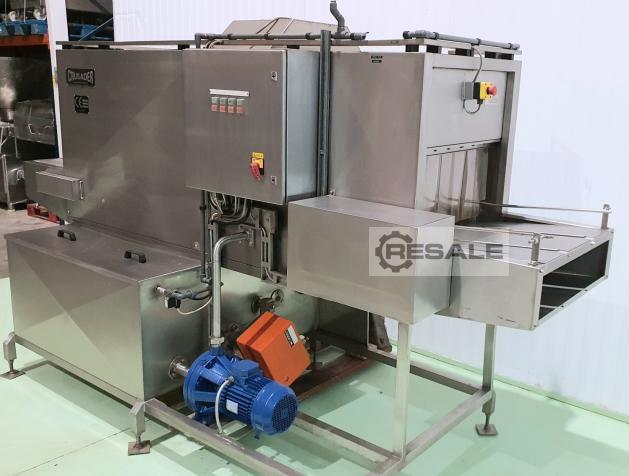

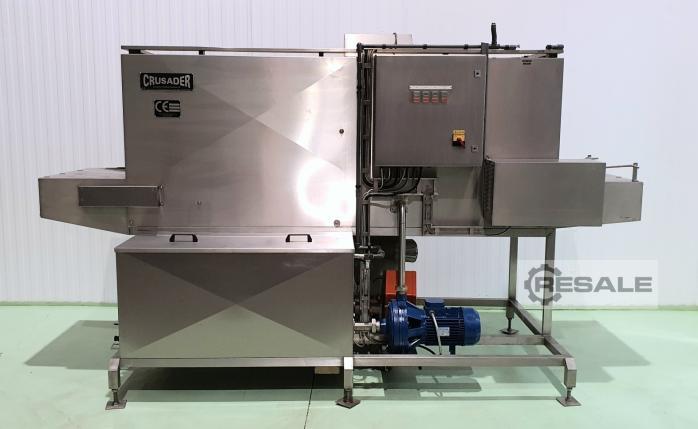

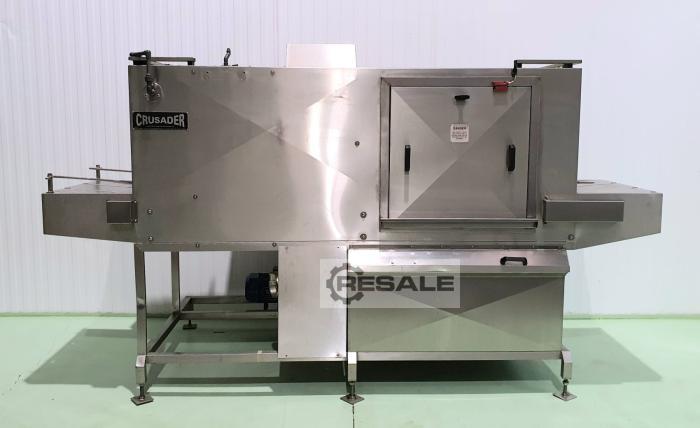

LIQUIDATION of washing machine of boxes and trays. Its condition is
completely renovated, revised and guaranteed. Tunnel for washing trays
or boxes, production 400/600 units / h. Manufacturer by INDUSTRIAL
WASHING MACHINES LTD model CRUSADER 600. The tunnel is calculated and
designed for a production of 400/600 ud / h, the water is heated by
oil heating system, its washing phase with hot and soapy water, and
its rinsing with mains water make its finish optimal. PROCESS Washing
in closed circuit with hot soapy water.
Rinsing with mains water.
GENERAL CHARACTERISTICS Construction in stainless steel AISI 304.
Tunnel dimensions: Length: 3,500 mm Width: 1,400 mm Height: 2030 mm
Loading mouth 570 x 280 mm high (max. trays 600 x 400 x 280 mm).
Loading height of 1,000 mm.
Upper body with side hinges for registration and rounded shapes to
facilitate sanitation and avoid water crossings.
PVC curtains 4 mm thick separation between zones.
Tunnel leveling on 6 adjustable feet.
Sound pressure level less than 80 dB (A).
Production: 400/600 pcs./hour depending on the dirt and dimensions.
