Vertical rotary table surface grinding machine DELTA LC-400
Availability: Immediate (subject to prior sale)
Article number: 14-10-051
Manufacturer: DELTA
Model No.: LC-400

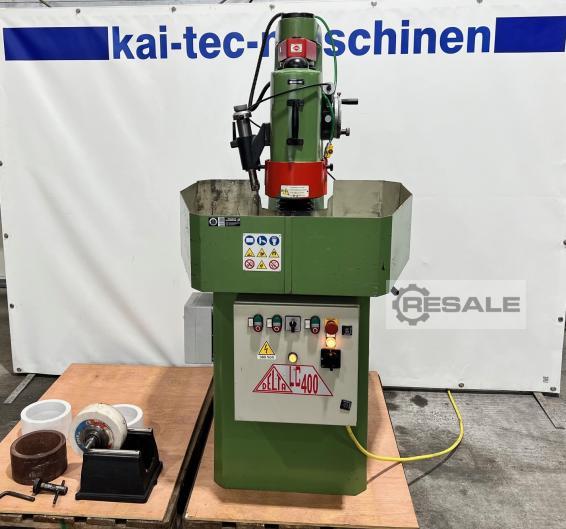

Machine description:
The DELTA LC-400 is a conventionally controlled vertical rotary table
surface grinding machine, which is in very good, used condition and
can be delivered immediately. The machine has been tested in the
workshop and is ideal for precise grinding work.
Machine data:
Year of construction: approx. 1999
Dimensions (L x W x H): approx. 800 x 800 x 1800 mm
Weight: approx. 800 kg
Specifications:
Control: Conventional
Grinding range:
Grinding diameter: approx. Ø 400 mm
Grinding height: approx. 220 mm
Magnetic clamping surface: approx. Ø 300 mm
Grinding spindle:
Grinding wheel dimensions: approx. Ø 200 x 80 x 78 mm
Grinding spindle speed: approx. 2840 rpm
Drive power: approx. 3.0 kW
Rotary table drive:
Rotary table rotation speed: approx. 30 & 60 rpm
Delivery: Manual/Automatic
Grinding Movement: Manual

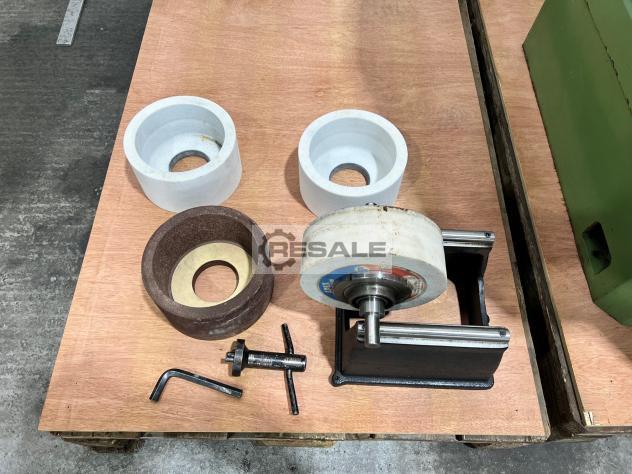

Accessories:
Pulling device
Permanent magnet
Wet grinding equipment
Machine enclosure
Operating instructions
Grinding Wheel Protector
Cup grinding wheel
Various tension wrenches
Balancing device
Additional accessories are available on request.
Price and other technical data on request.
Errors and input errors excepted.
