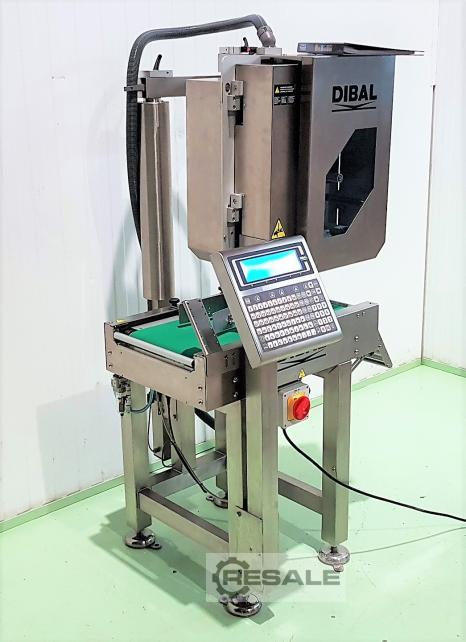

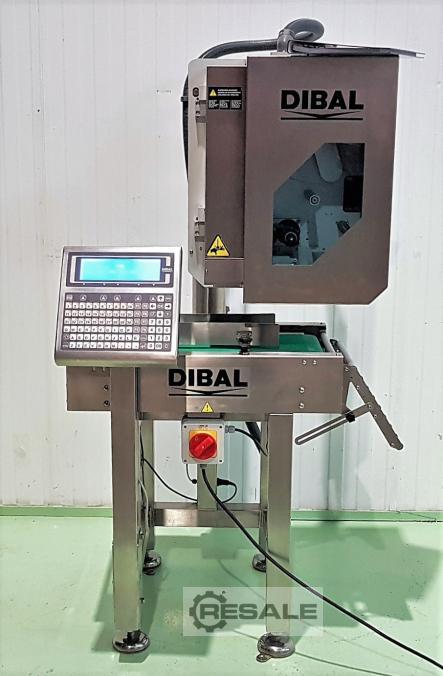

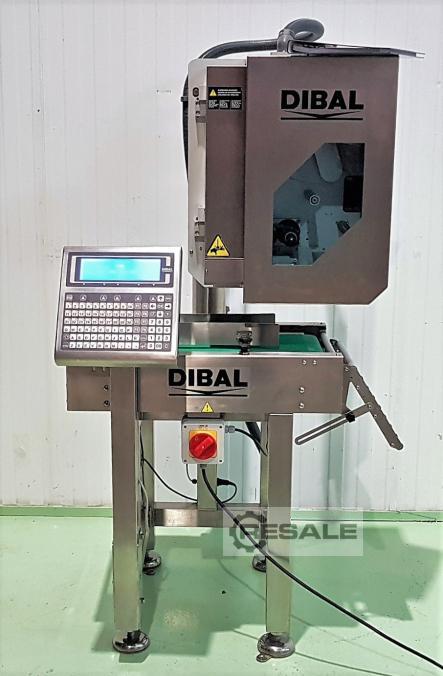

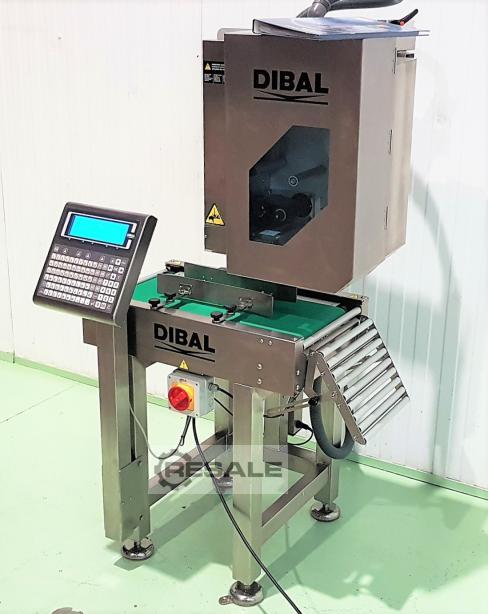

Automatic labeling train manufactured by Dibal, model LS 3130,
Automatic equipment with
Static weighing to label weight and fixed prices.
Allows you to label products with weight information and fixed
prices.
Ideal for top labeling.
LS-3130 SERIES MODEL
WEIGHING TYPE
Dynamic and static. 6 kg / 2 g with L270 x A430 mm trolley.
LABELLING SYSTEM
TYPE OF PRINTING
Direct thermal and ribon.
PRINT HEAD.
3 ́ ́ long life and resolution 8 dots / mm
APPLICATION OF LABELS
Pneumatic piston applicator, in upper labeller also possibility by air
blowing Air-jet ® (AA
LABEL
Top label, from A30 x L35 mm, up to A80 x L100 (3)
STRUCTURE – CONSTRUCTION
AISI 304 stainless steel and anodized aluminum
FEED.
Electrical: 230 V and 50 Hz; 115 V and 60 Hz.
Air: max. 150 l/min (at 5-8 bar)
MACHINE MEASUREMENTS
Tape height 800 x 950 adjustable legs.
Maximum height 1450-1860 adjustable legs.
Length 1320 for 3 L400 trolleys
Width of 720.
