Homogenizer DLS HG125

1 unbr. Homogenizer type HG 125

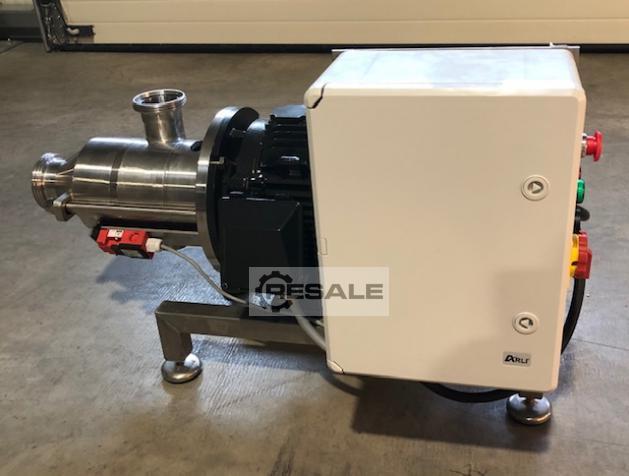

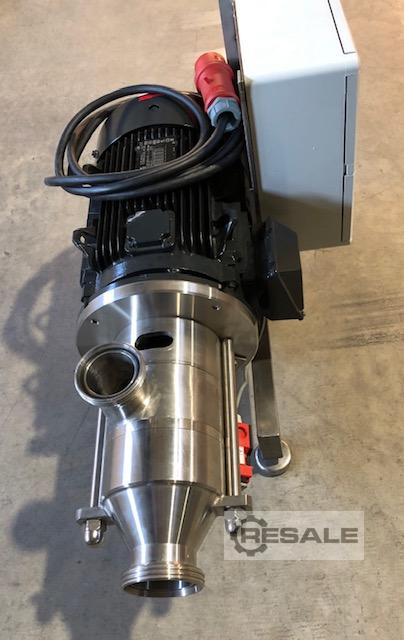

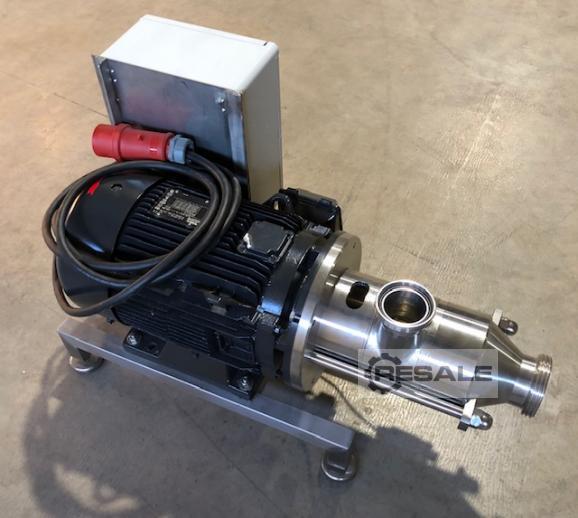

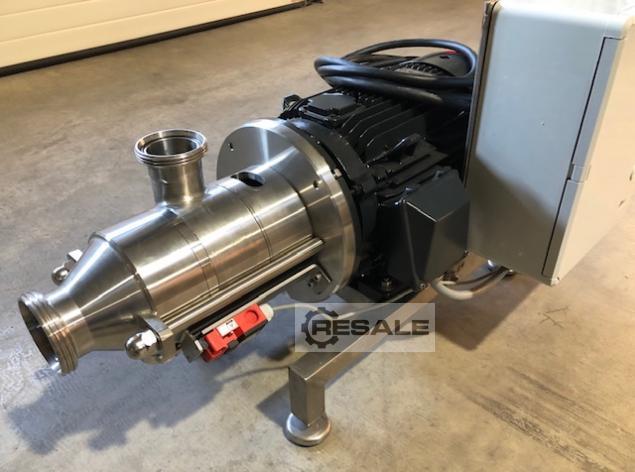

Homogenizer in horizontal design with direct drive by three-phase motor with height-level base frame. Standard version suitable for maximum system pressure up to 10 bar and product temperature up to max. 150°C.

Technical data:

Drive power: 18.5 KW three-phase motor
Operating voltage: 400 V, 50 Hz, 3 phases
Protection: IP 55
Speed: 3000 rpm
Material of the
product-contacting parts: 316 L (1.4404/1.4435)
Shaft sealing: single-acting GLRD
Side seals: Viton
Connections: Suction side DN 80 DIN 11851
Printing page DN 65 DIN 11851
Throughput and
Conveying pressure at water
similar products: approx. 25 m3/h or 3 bar

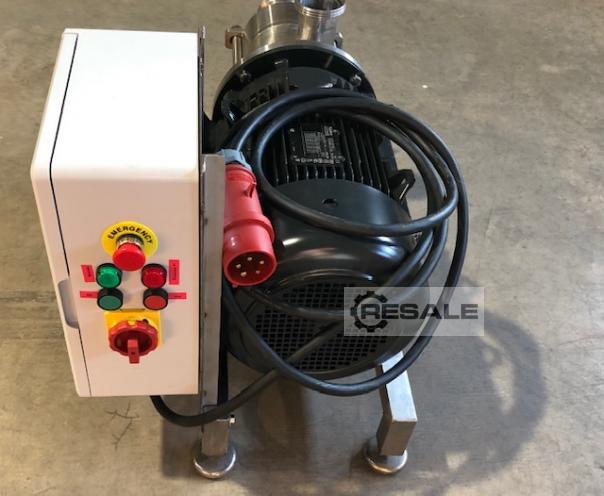

with star-triangle circuit in plastic housing without pre-locking
with cable and plug


seller offer No. resale 147565688
