CNC Turning Centers DMG GILDEMEISTER CTX 410

metal working machines / lathes / CNC Turning Centers

Manufacturer: DMG GILDEMEISTER

Model:CTX 410

Type of machine: CNC Turning Centers

item-No.: 162701113

Quantity: 0

Date: 26.08.2024

Year of manufacture: 2006

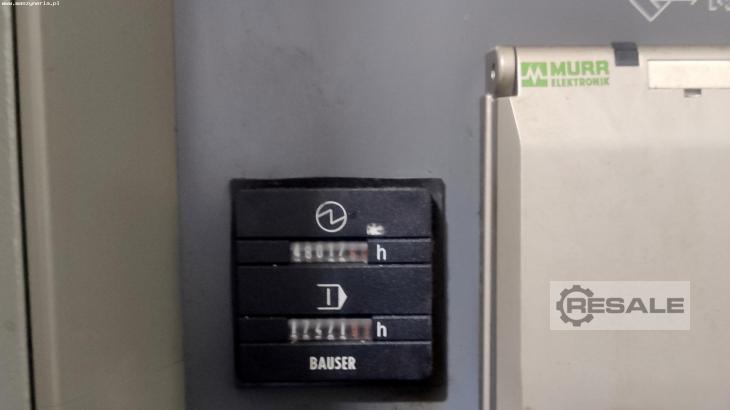

Operating hours: 17471

Location: Land-pl Poland

Price: 35,715 EUR

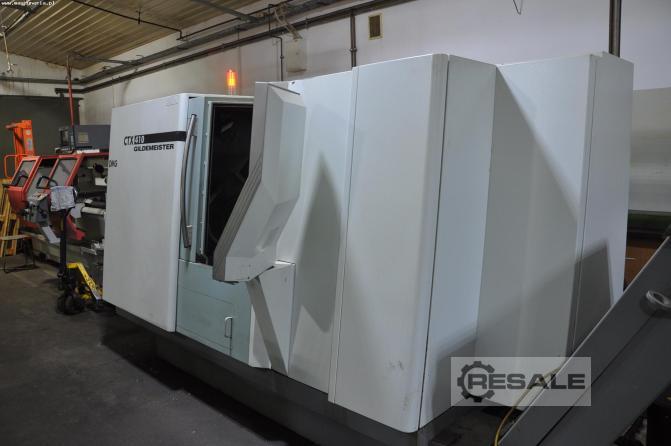

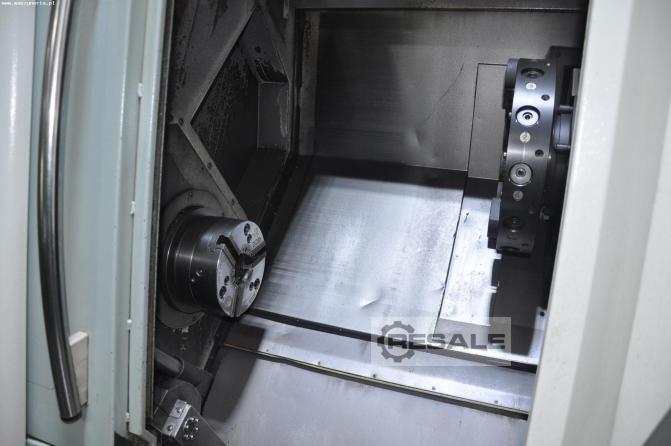

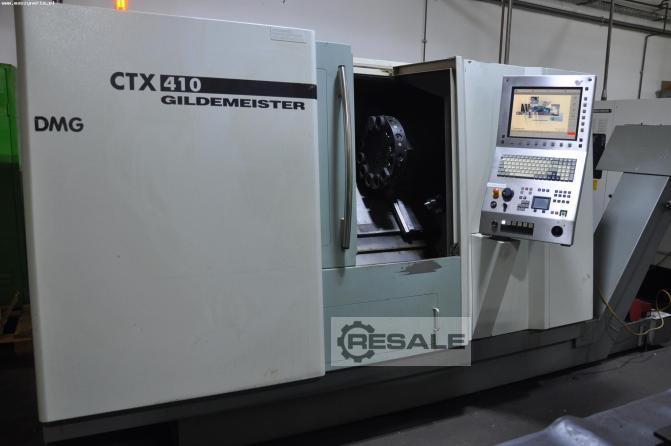

DMG GILDEMEISTER CTX 410 CNC lathe built in 2006 is an extremely powerful machine designed for precision machining of workpieces with a maximum diameter of 320 mm. The machining process is performed inside a large, fully illuminated workspace using reliable components in the form of cutting tools and a high-speed spindle. The specially designed inclined bed effectively dampens all vibrations and oscillations, resulting in better quality of the machined surface and increased tool life. The offered DMG CTX 410 CNC turning center is also equipped with an integrated chip conveyor and a perfectly optimised, intuitive HEIDENHAIN CNC control. The total weight of the machine is approximately 6000 kg.

Technical specifications of the DMG GILDEMEISTER CTX 410 turning center

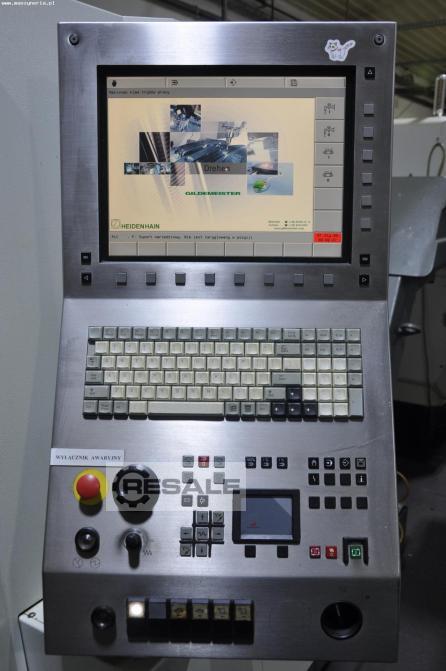

- CNC controller: HEIDENHAIN
- turning diameter: 320 mm
- turning length: 600 mm
- feed in the X/Z axis: 250/635 mm
- rapid traverse in the X/Z axis: 24/30 m/min
- maximum spindle rotational speed: 5000 rpm
- spindle passage: 65 mm
- spindle drive power: 21 kW
- maximum spindle torque: 240 Nm

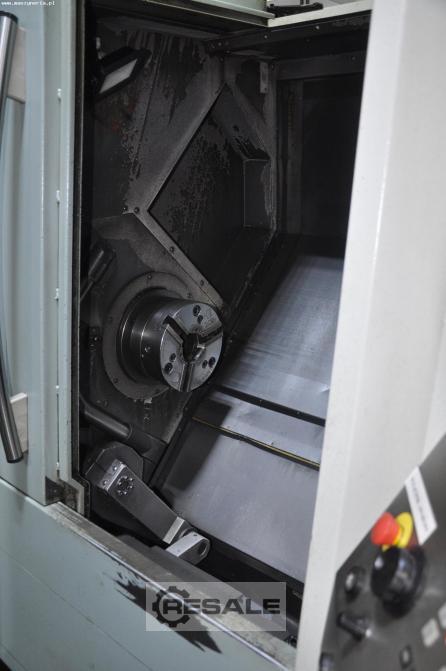

- lathe chuck diameter: 250 mm

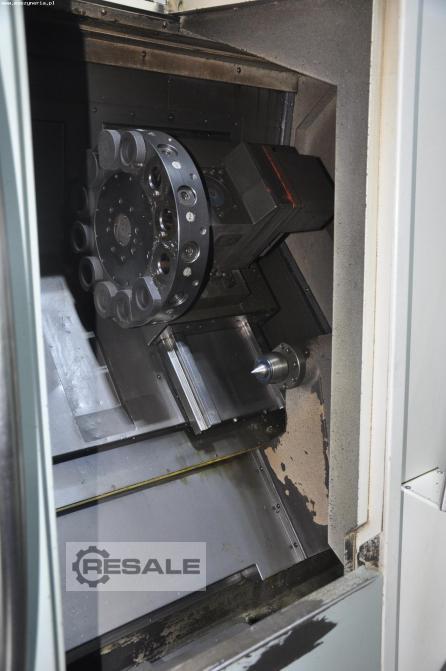

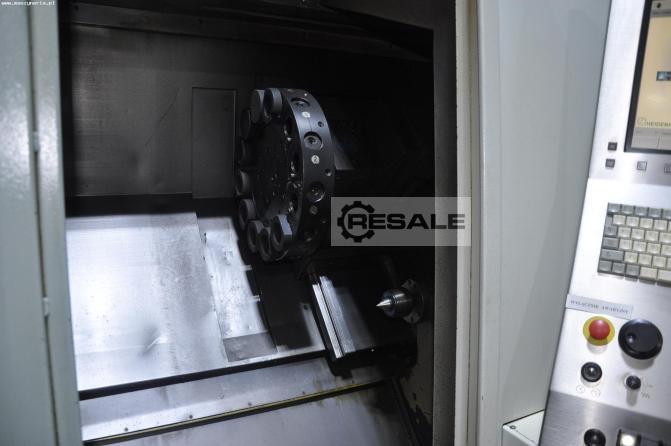

- 12-position turret
- integrated chip conveyor
- workspace illumination
- operating hours: 17471 h
- installed power: 44 kVA
- power supply: 400 V; 50 Hz
- weight of machine: approx. 6000 kg
