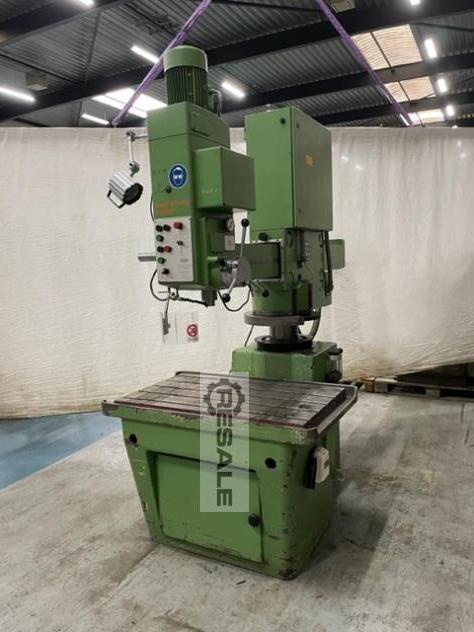

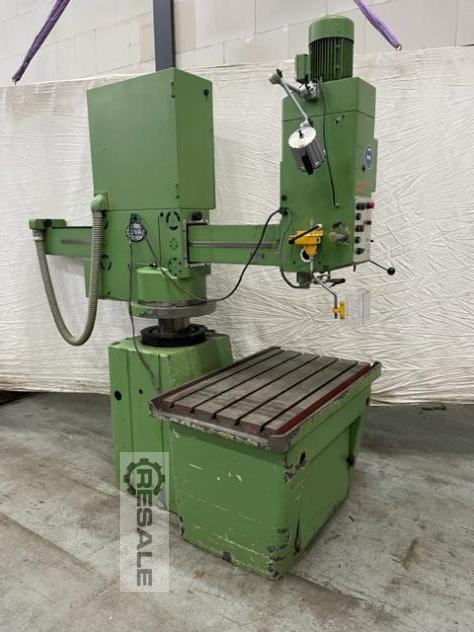

High Speed Radial Borers DONAU DR 40

metal working machines / boring mills and machining centers / High Speed Radial Borers

Manufacturer: DONAU

Model:DR 40

Type of machine: High Speed Radial Borers

item-No.: 162695000

Quantity: 0

Date: 25.03.2024

Year of manufacture: 1988

Location: Land-nl Netherlands 7327 Apeldoorn

Price:


Code 231027

Rewriting Controlled Fast Radials

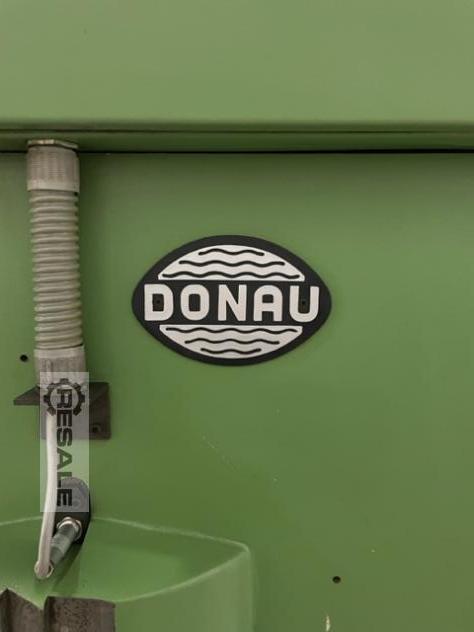

Make DONAU

Type DR 40

Machine No. 1137 – 3

Built in 1988

Drilling into full stem 60 40 mm
Drilling into full GG 22 50 mm
Tapping capacity into the St. 60 M 33
Tapping capacity into the GG 22 M 45

Steep taper of the drilling spindle SK 40

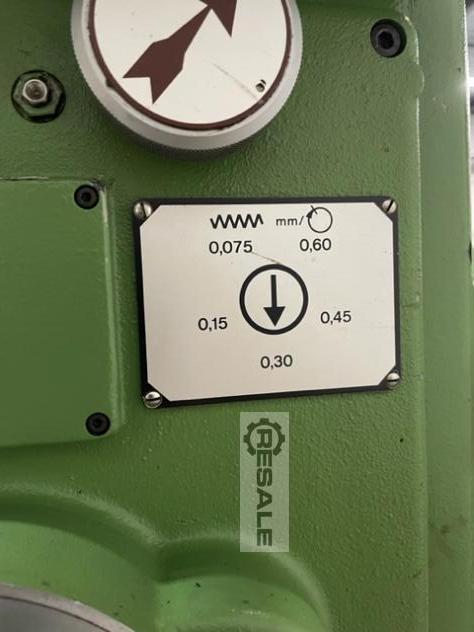

Feed normal ( 5x ) 0.075 – 0.6 mm/rev

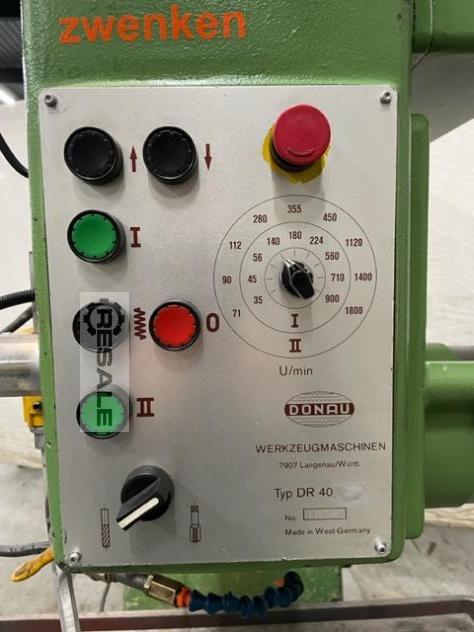

Drilling spindle speeds 18 pcs. 35 – 1800 rpm

Drilling spindle stroke 200 mm
Drilling radius min/max 350 / 1300 mm
Projection min/max 120 / 1007 mm
Height adjustment of the drilling spindle head 450 mm

Distance drilling spindle/table min/max 350 / 800 mm

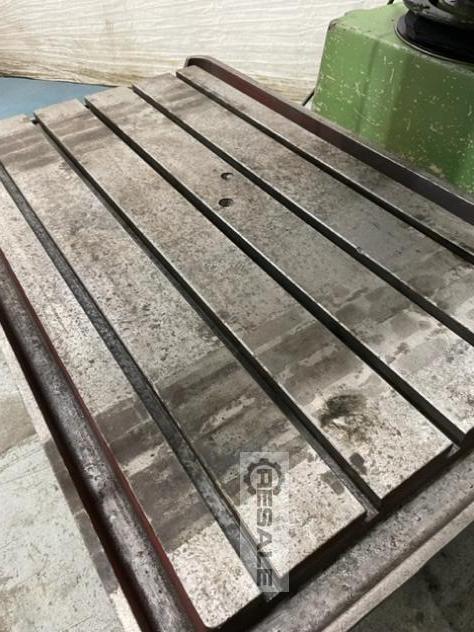

Table top 1225 x 750 mm

Power 2 / 3 kW 380 Volt

Weight 2000 kgs
Dimensions LxWxH 2300 x 1225 x 2400 mm

Accessories for tapping device

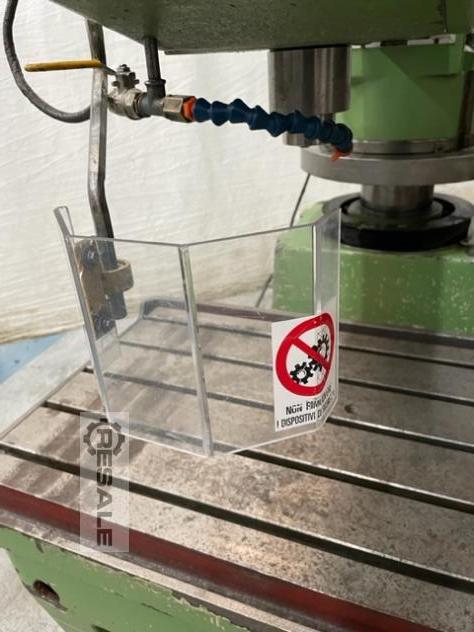

Coolant system

Condition machine is in good condition
