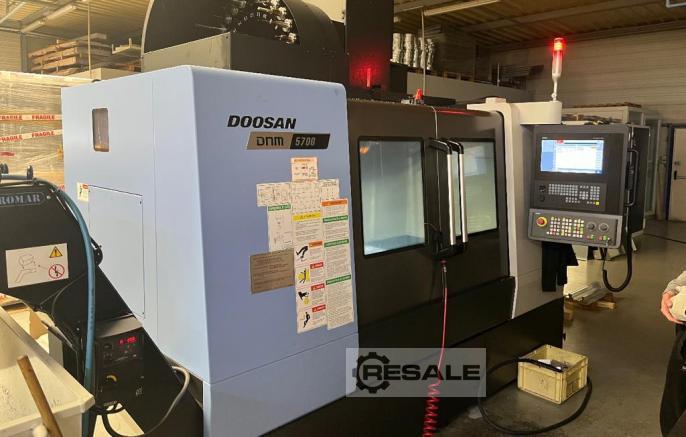

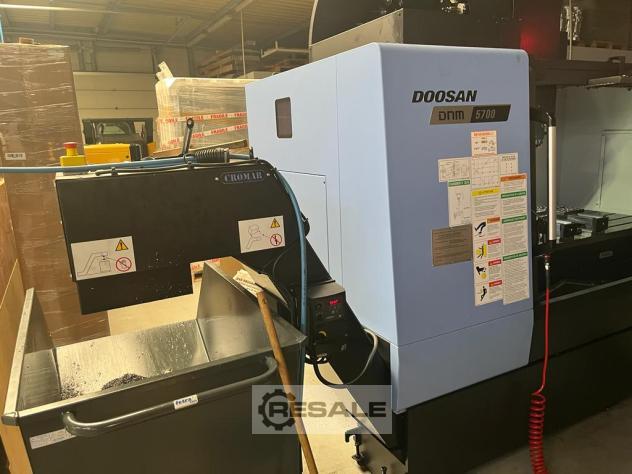

Numerically Controlled Machining Centres DOOSAN DAEWOO DNM 5700

Machine Details
Stock number 1105-03801
Machine Type Machining Center - Vertical
Make DOOSAN DAEWOO
Type DNM 5700
Year of construction 2021
CNC control type
Location: HAGUENAU FRANCE
Country of origin KORREA
Delivery time IMMEDIATELY
Freight base ex-factory

Technical details
longitudinal 1020 mm
transverse 570 mm
vertical 510 mm
Tool changer 30 pos.
max. tool length 300 mm
max. tool diameter 80 mm
max. toolthrough. with a free neighbor's box. 130 mm
Rapid traverse 36 m/min
Machine weight approx. 7 t
Drive power 100% ED 11 kW
Drive power 40 % ED 12000 kW
Speed range 8000 1/min
Tool holder BT 40

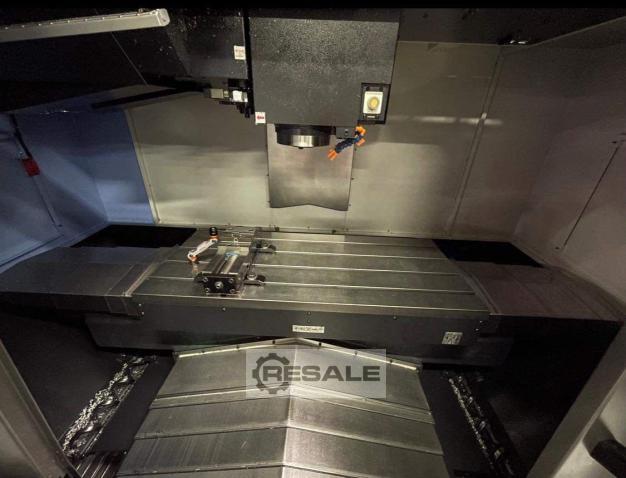

Table surface 1200 x 500 mm
Permissible load (center of table) 800 kg
Groove width 18 mm
Number of grooves 4 pcs.
Information
CNC SIEMENS 828D
El. Handwheel

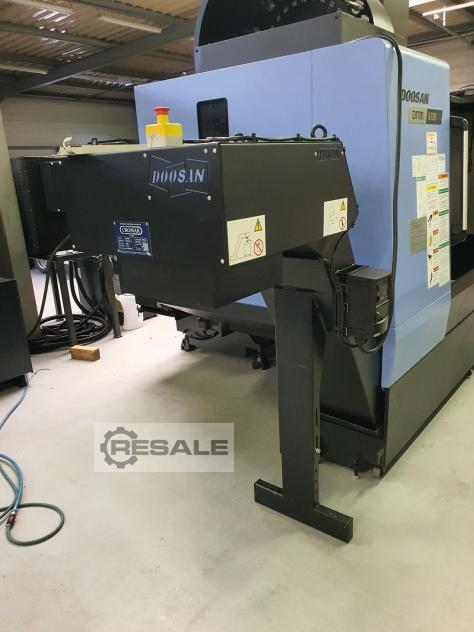

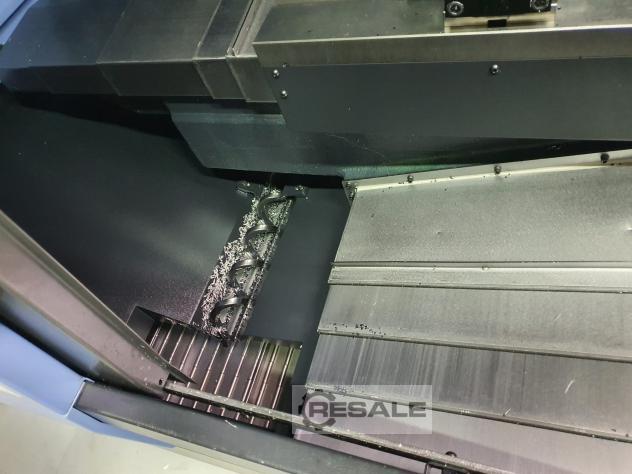

Conveyor
12000 RPM RPM
MAGAZINE 40-SPEED ATC BT 40 BIG PLUS
RENISHAW OMP 60
IKZ 20 BARS
COOLING TROUGHT THE SPINDLE 20 BARS
TABLE 1200 X 540 MM
