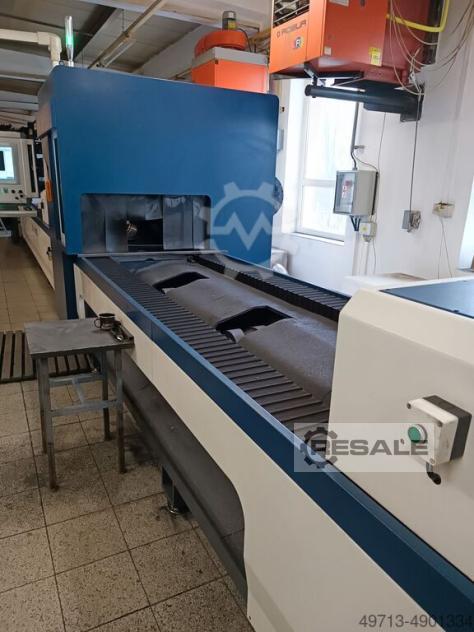

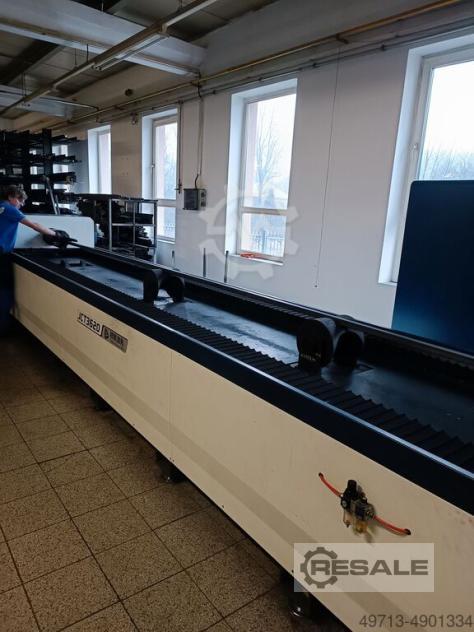

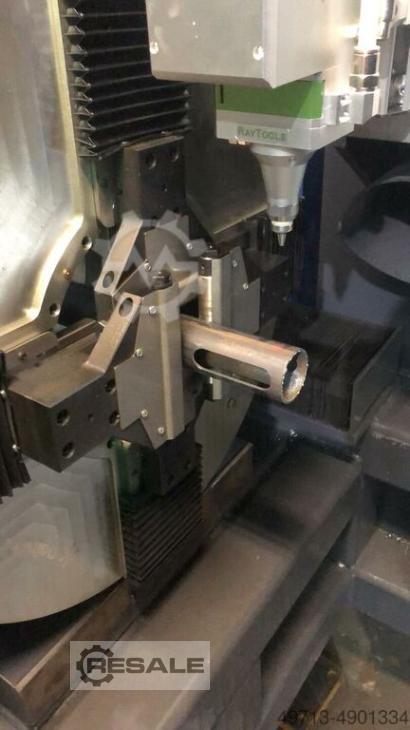

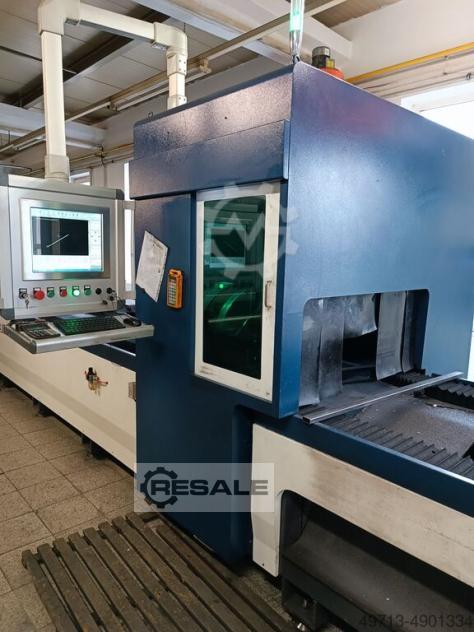

The DPL-7040/5 axis system enables fully automatic laser cutting of
tubes with round, square and rectangular cross-sections, as well as
oval profiles.
The table lists the maximum values. The system is characterized by
excellent productivity and precision, so that it does not even need to
shy away from comparison with other specialized tube processing
systems in this work area.
Basic parameters (option according to customer requirements) Machines
Type DPL-7040/5 axes Laser wavelength 1070 nm Laser power 2000W IPG
fiber laser Connected load 13.5 kW , Max driven axes 5 ,X./ Y axis
positioning accuracy ±0.08 X / Y axis repeatability ±0.04 X / Y axis
travel speed 80 m/min Max, cutting speed 30 m/min Min. cutting width
0.02-0.08 Max. cutting thickness at 2000W Steel: 7 mm , Stainless
steel: 6 mm cutting material stainless steel, black steel St37,
titanium, aluminum and much more.
Machine weight 5000 KG Cutting diameter 20 - 220 mm Graphic formats
AI,PLT,DXF,BMP,DST,DWG,LAS,DXP Connection voltage 380V 50Hz/60Hz
Germany
