Pallet circulation systems ELEMATIC Acotec Wall Panel Line

For Sale is a ACOTEC Production Line
Manufacturer: ELEMATIC
Output: 160 m2/h (double line)
Year: 2019

This offer comprises 2 ELEMATIC production lines with a combined capacity
of 160m2/h and also includes a FRUMECAR batching plant.

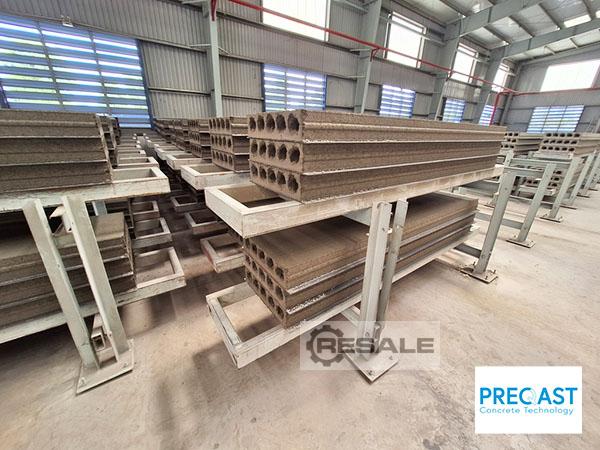

Acotec panels are precast, non-load bearing partition walls.
They are room-high and 600-mm wide, with a tongue and
groove design along the vertical edge.
The panels are 6 times faster to install than traditional
brickwork and twice as fast as blockwork.

Modules list of the production plant
-Concrete Supply
-Plate Handler
-Plate Feeding Conveyor
-Casting Module
-Product Module 6/100
-Saw
-Conveyor for Saw
-Trimmer
-Product Conveyor
-Recycling
-Stacker
-Stack Conveyor
-Stack Return Conveyor
-Crossing Station
-Restacker
-Product Tilting Receiver Conveyor
-Product Tilting Device
-B-Quality Conveyor
-Pallet Conveyor
-Cleaning and Oiling System
-Bundle Conveyor
-Line Automation and Electrification
-Base Mold Plates no. 500

BATCHING PLANT FRUMECAR
FPT2250/1500 Planetary mixer
Set of 4 CPL-4000 Hoppers
Hydro-Probe Moisture Sensor
Weighing Belt for 4 Aggregate Hopper Set
Aggregate Lifting Skip to the Mixer
Screw Conveyor for Cement Transportation
Cement Scale
Water Dosing and Counting
et al.
seller offer No. resale PREQAST-M24515
