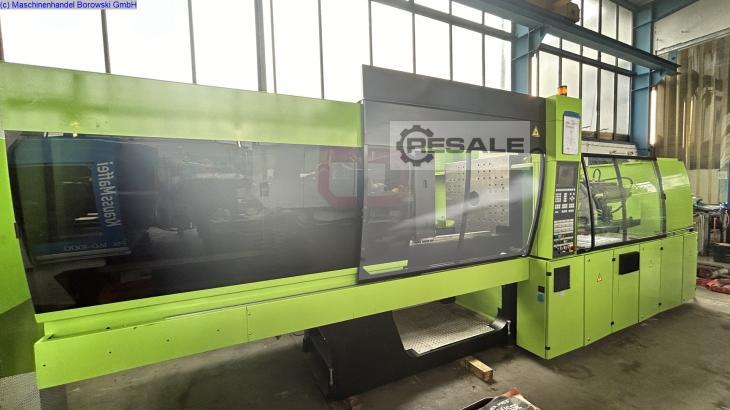

Injection molding machines ENGEL Victory 1050-220 TECH

Injection moulding machine ENGEL Victory 1050-220 TECH

Stock No.: 503439
Manufacturer: ENGEL
Type: Victory 1050-220 TECH

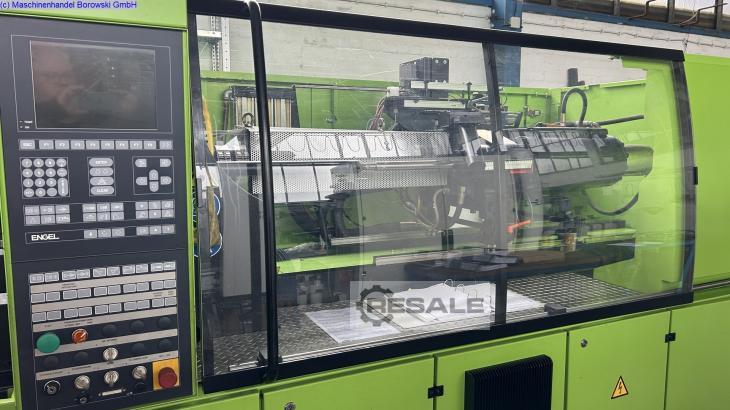

Control: CC100
Year of construction: 2006
Hours: 92465 h

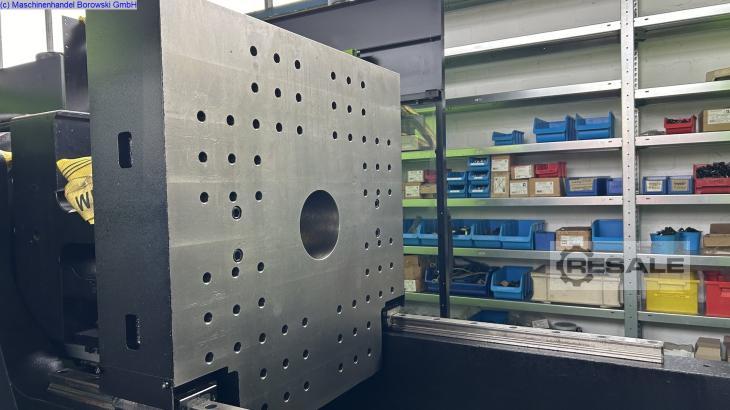

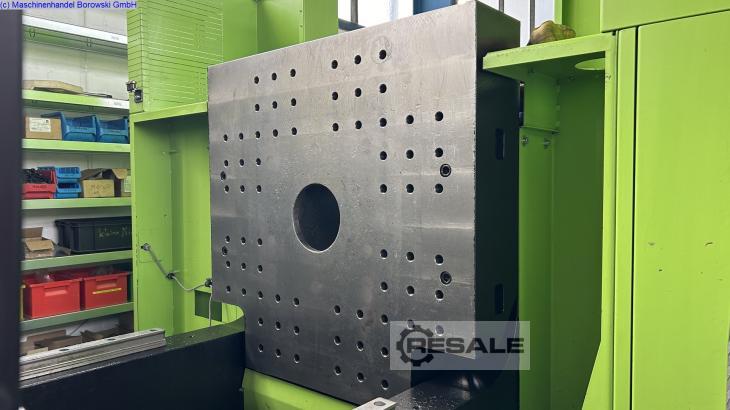

Technical Data Closing Page
Clamping force: 2200 kN
Plate size h x w: 860 x 830 mm
Min. installation height: 300 mm
Plate spacing max.: 1045 mm
Aperture travel: 755 mm
Ejector stroke: 180 mm
Ejection force: 80 kN
Centering movable plate D: 160 mm
Centering fixed plate D: 160 mm

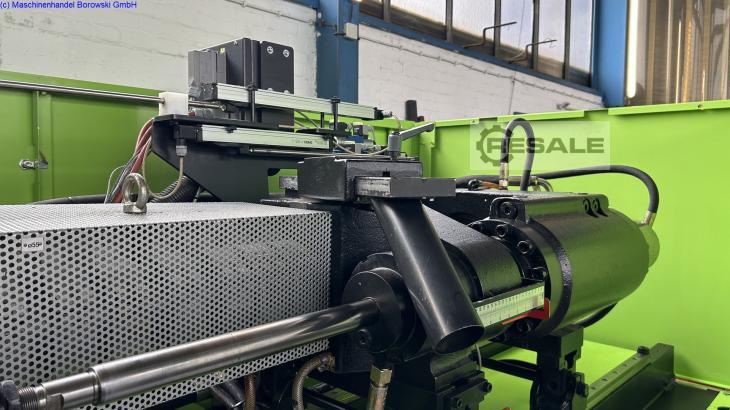

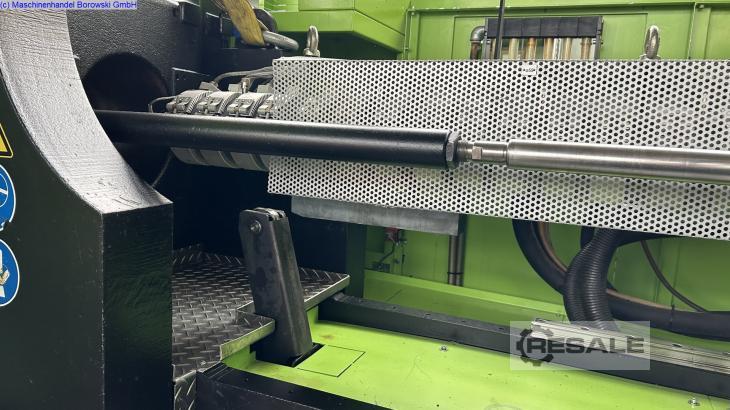

Technical Data Spray Side
Screw diameter: 55 mm
Displacement: 510 cc
Spray pressure: 1615 bar
Auger length: 20 l/d
Auger stroke: 200 mm
Screw speed: 230 min
Plasticizing Current: 55 g/s PS
Outdoor injection flow: 255 g/s hp
Number of heating zones: 5
Nozzle travel: 350 mm

Dimensions & Weight
Machine dimensions LxWxH: 6.2m x 1.7m x 2.2m
Total Weight: 12900KG

Equipment
CEE socket 16A
Compact Flash Drive
Core pull hydraulic 1x
Air valve 1x
Machine with water battery
Machine without conveyor belt
Machine without handling
Machine without material hopper
seller offer No. resale 503439
