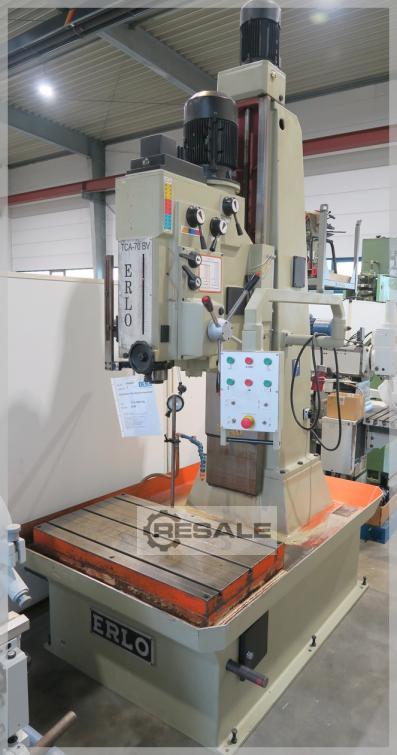

Drilling Machines ERLO TCA-70BV-RS

metal working machines / boring mills and machining centers / Drilling Machines

Manufacturer: ERLO

Model:TCA-70BV-RS

Type of machine: Drilling Machines

item-No.: 162729817

Quantity: 0

Date: 13.03.2025

Year of manufacture: 2008

Location: Land-de Germany 09130 Chemnitz

Price:


Tool holder MK5
Table size 1040x600 mm; table load max. 1200 kg
Drilling diameter in steel 70 mm, in cast iron 75 mm
Threads in steel up to M 60
Speed range (1/min) 35-1238
Feed rate (mm/rev) 0.05-0.5
Projection 630 mm, spindle stroke 300 mm
Distance table spindle 540-1470 mm
Table height approx. 700 mm
Drill head electrically height-adjustable
Main drive 7.5 kW
Manual
