EUROLUX
ZKG Tanks/ Storage Tanks / Pressure Tanks/ Beer Tanks
with cone floor
with cooling jacket made of V2A
Max operating pressure: 0.99 bar, test pressure: 1.5 bar
Content: from 200 litres to 1,000 litres
Kat No.
20-00071-1L 200 litres
20-00071-2L 300 litres
20-00071-3L 400 litres
20-00071-4L 500 litres
20-00071-5L 625 litres
20-00071-6L 750 litres
20-00071-7L 1,000 litres
Material:
V2A - AISI 304, 1.4301
Surface:
outside marbled, inside 2B=IIIC
Tank upper body:
with manhole lid round Ø 400 mm with 2 x handle
with 6 x screws
with overpressure valve (on extra charge)

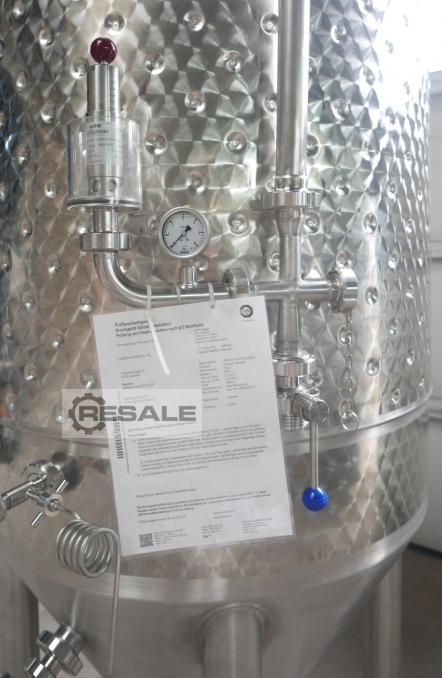

with downward drawn filling pipe DN 32 with fermentation connector
(with overpressure valve, with manometer)
with 2 x thread connection DN 50
with CIP spray head/CIP cleaning (on extra charge)
with cap nut DN 50 ball Ø 25 mm
with connection for cleaning supply DN32)
Tank cylinder:

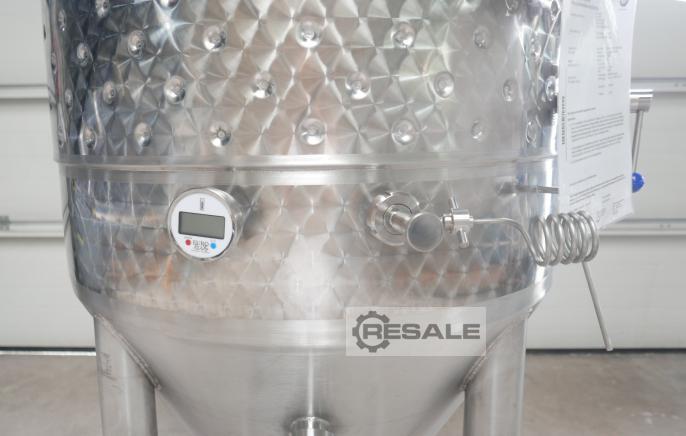

with sample valve DN 25 with spiral (on extra charge)
with immersion socket for temperature indicator digital (on extra
charge)
on the back of the tank 2 x connections for cooling (inlet and outlet
½ ”and ¾”)
Please note: there is only additional cooling in the cone bottom for
1000 liter tanks
Lower bottom:
with clear outlet with butterfly valve (on extra charge)
(with thread connection DN 50, piercing pipe connection thread
DN 32 and butterfly valve DN 32)
with rest outlet with butterfly valve DN 50 (on extra charge)
with 3 x feet with rolls (on extra charge)

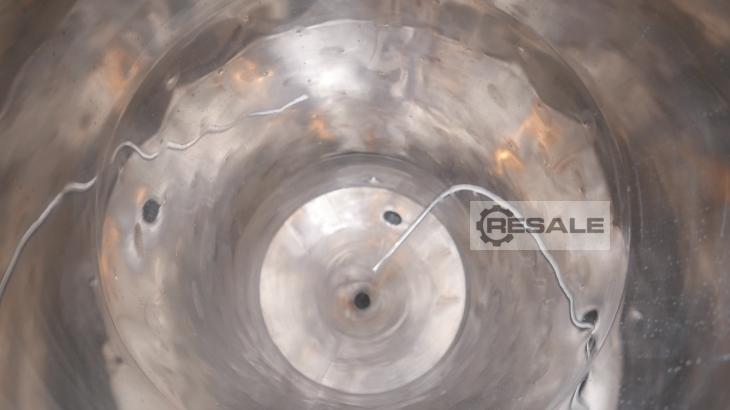

with conical bottom
Germany
