tapping machine FANUC Robodrill Alpha D21 LiB5

Table size: 850 x 410 mm
X/Y/Z travels : 700/400/330 mm
Rapid traverses rates (X/Y/Z): 54 m/min
CNC: Fanuc 31i model B5
Tool magazine capacity : 21
Max. table load: 300kg
Spindle speed range: 100-10000 rpm
Distance btwn table & spindle nose (min./max.): 150-480 mm
Noise level: <70 db(A)
maximum tool diameter: 80 mm
maximum tool length: 250 mm
maximum tool weight: 3 kg
tool changeover time: approx. 1.4 s
bi-directional axis positioning accuracy: <0.006 mm
bi-directional repeatability of axis positioning: <0.004 mm
number of T-slots: 3
Floor space: approx 2165 x 2040 mm/ Height: 2400mm
Machine weight: approx. 2200 kg
Working hours: 1911h (subject to change)
Additionally equipped with a rotary for 24 pieces with a diameter of 20 mm

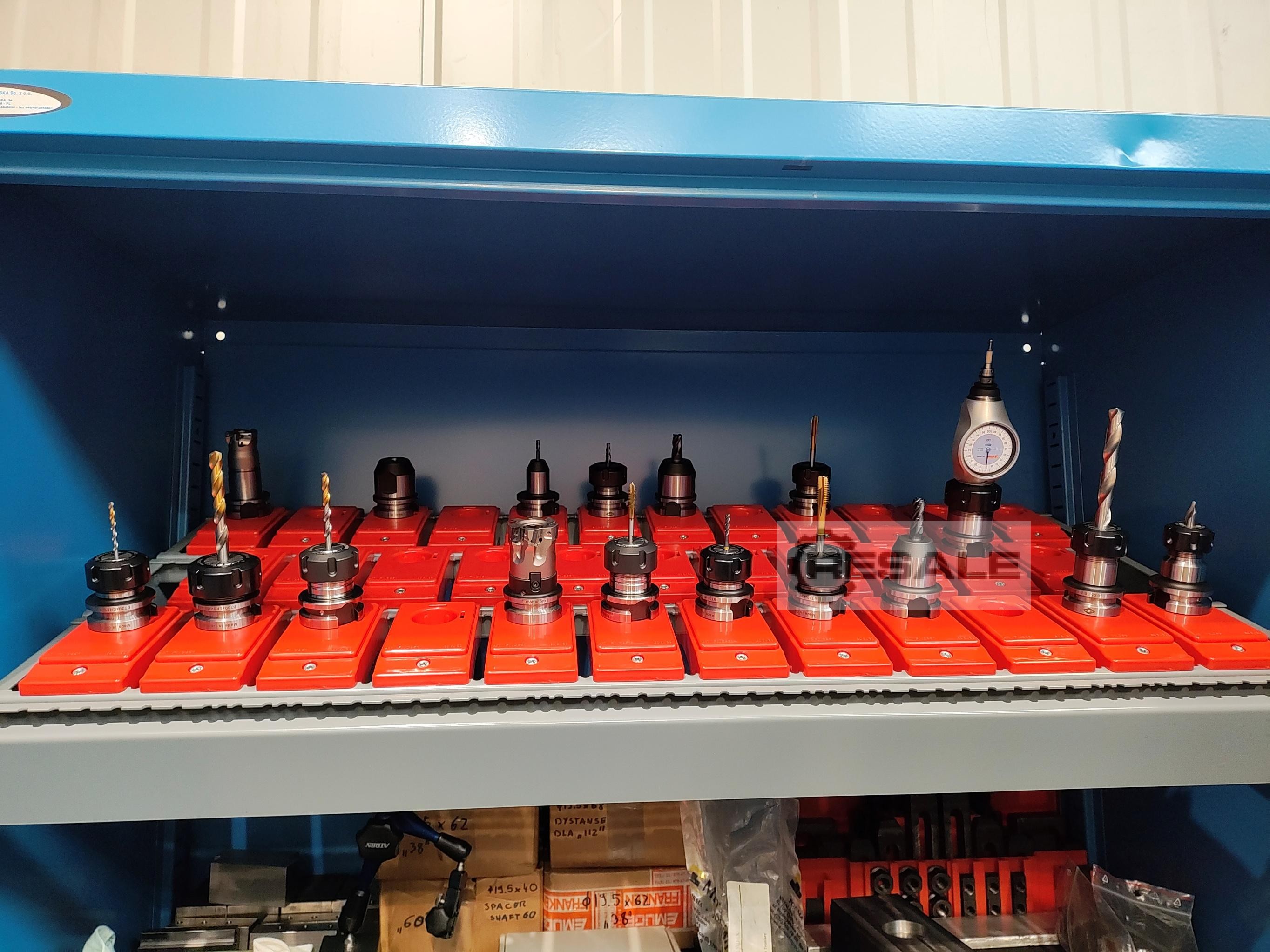

- Set of toolholders
-Material machined on this vmc
was 100% stainless steel.
seller offer No. resale 00-271
