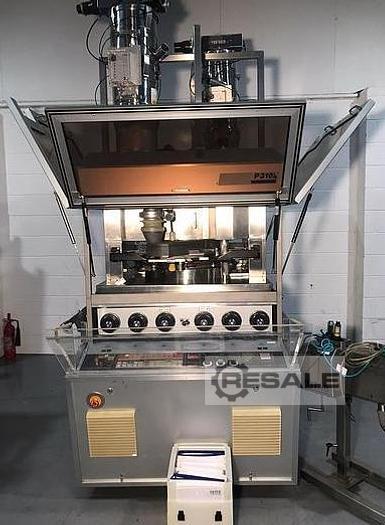

FETTE TABLET PRESS, MODEL P3100
Year of construction: 1992
55 station rotary double sided tablet press. Designed for high volume
production of a wide range of tablets with an output of up to 594,000
tablets per hour.
Machine size: 1650mm x 1600mm x 2900mm height (with vacuum units
fitted, or 2000mm high without them)
Approx. weight: 3,750kg
Key information:
- Punch/Die type EU-BB
- Maximum fill depth: 18mm
- Upper punch entry: 2mm – 6mm
- Maximum tablet diameter: 13mm
- Maximum tablet thickness: 8.5mm
- Initial compression force: 20kN (2 ton)
- Maximum compact force: 100 kN (10 ton)
- Die plate speed: 15-90 rpm
- Fitted with 20kN (2 ton) pre-compression station
- Upper punch body lubrication and keyed upper punch bores
- Variable frequency drive
- Two Stainless Steel PIAB vacuum conveyors mounted on the top of the
machine for delivering bulk product
- Emergency stop button
- Full safety interlocked guarding with hinged pneumatic panel
guards
- Integrated electrical cabinet with fixed transformer
- Electrical cabinet requirements: 380V, 50Hz, 3 Phase, 15 Amp
- Manuals in English (for a 45 station machine)

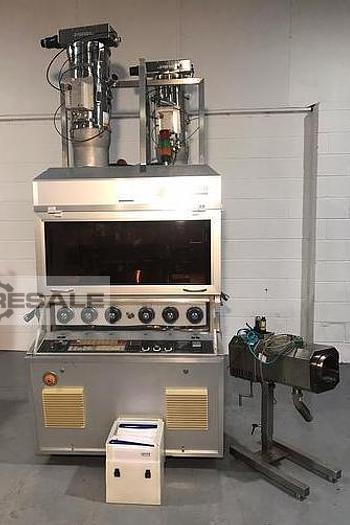

Comes with Rotab deduster, a data control unit and some spare parts.
