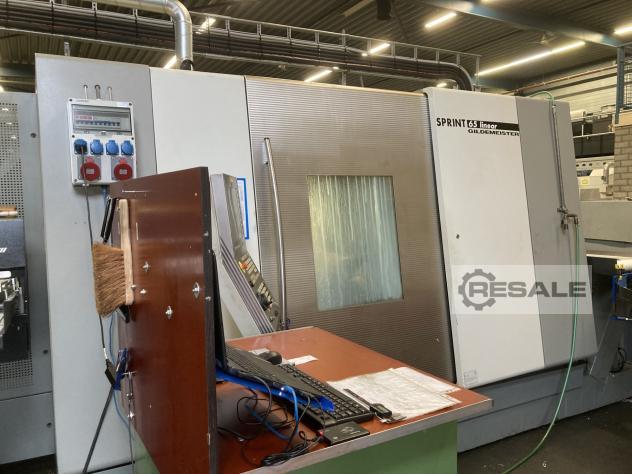

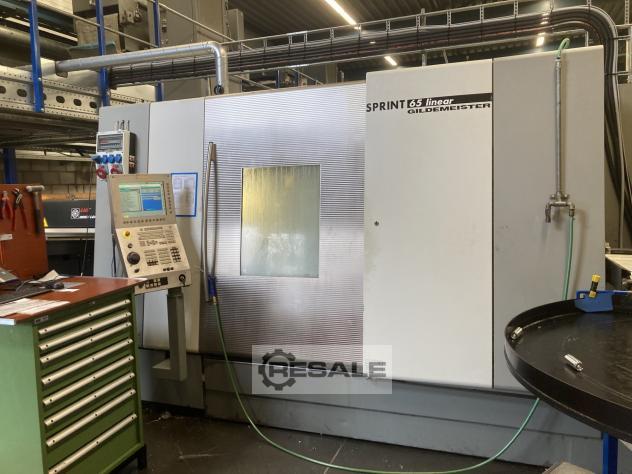

For sale: Gildemeister CNC lathe type Sprint 65 Linear equipped with a

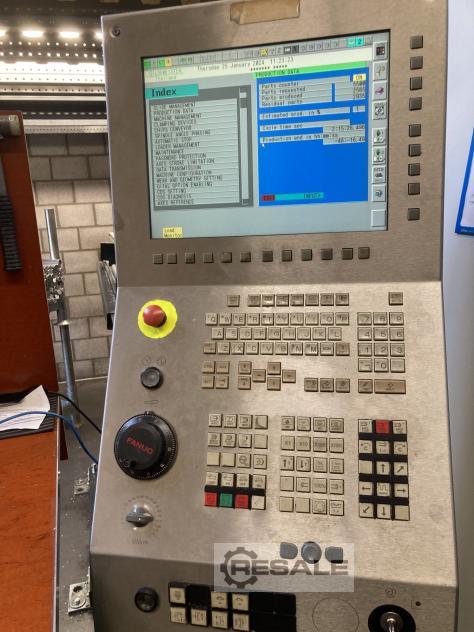

Fanuc 310I control. This CNC lathe is equipped with 2 equal spindles

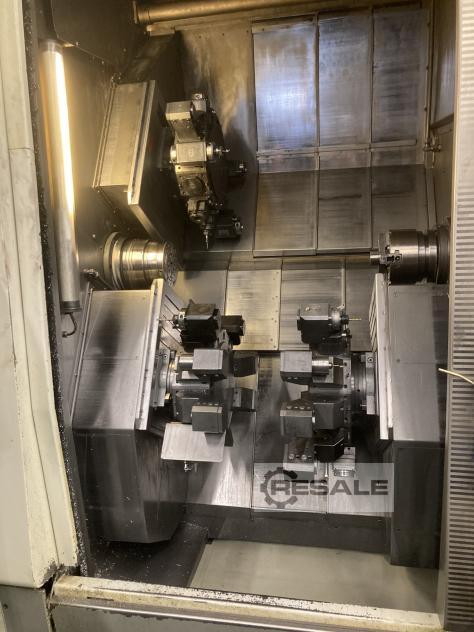

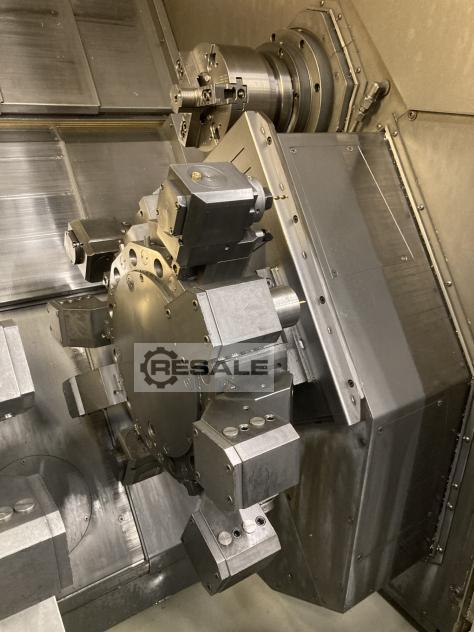

with a bar passage of 65 mm. The machine also has three turrets with
12 positions where you can place driven holders in any position! The
upper turret is equipped with a Y-axis with a displacement of 80 mm (
(+50, - 30 mm). The turning diameter is 205 mm. The maximum turning
length is 650 mm. The movement X1, X2, X3 is 165mm, the Z1 axis
movement is 220mm, the Z2 axis movement is 150mm, and the Z3 axis
movement is 768mm. The W2 axis movement is 690 mm and the maximum
rapid traverses are 30 meters/min. The maximum speed of both spindles
is a speed of 5,000 rpm and both spindles have a full C-axis. The tool
holder holder on all turrets is VDI-30. The machine is also equipped
with a hinged belt chip conveyor with right ejection and the machine
has an Irco 3 meter bar magazine. Type Simag 70.1. Very nice machine
that runs excellently. Still to be visited under electricity.
Available at short notice, subject to prior sale,
Netherlands
