Technical details:
- Mortise depth: 150 mm
- Max. slit length: 220 mm

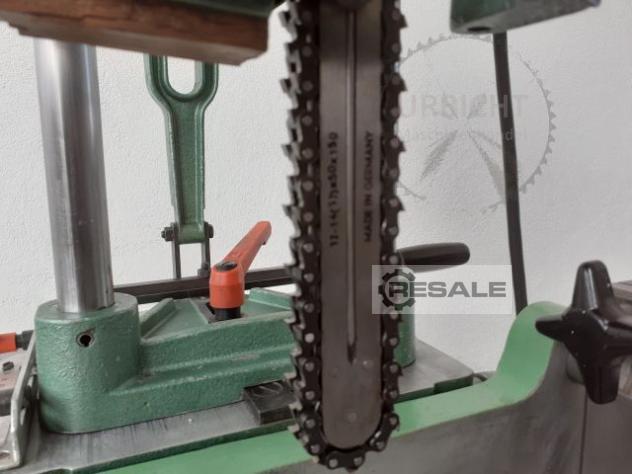

- Max. chain width: 40 mm
- Longitudinal table movement: 160 mm
- Table transverse movement: 90 mm
- Inclination: 5°
- with 1 x chain (mounted)
- with sheet steel stand

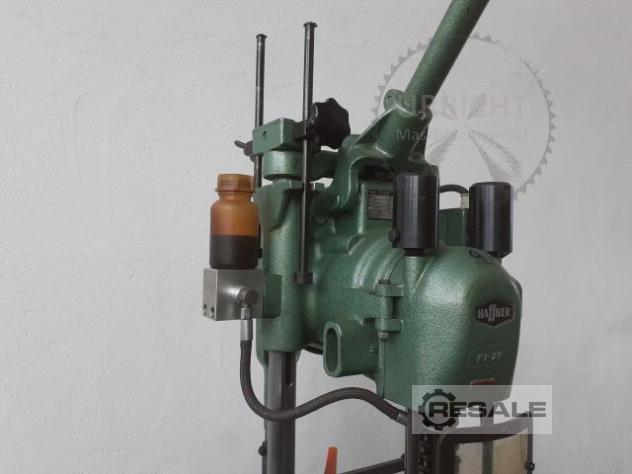

- with oil lubrication device
- with quick adjustment
- with instruction manual

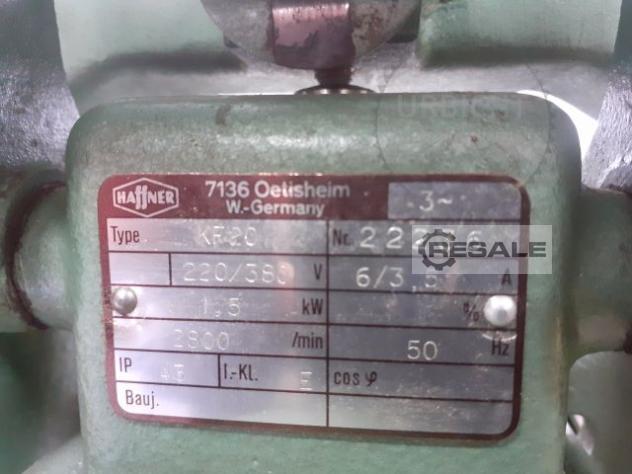

Engine data:
- Three-phase motor, consumption: 2.2 kW
- Power, output: 1.5 kW
- Voltage: 220/380 V
- Current: 6/3.5 A
- Frequency: 50 Hz
- Speed: 2,800 rpm
Dimensions (LxWxH):
Transport dimensions:
Machine weight: 72 kg
Weight of sheet steel stand: 35 kg
The machine has been completely cleaned, overhauled and checked for
correct functioning.
It is supplied with a mounted connection cable with a 16A three-phase
plug.
(Subject to changes and errors regarding technical data and prices!)
In accordance with our terms and conditions, we would like to point
out once again that cheques and bills of exchange cannot be
accepted.
